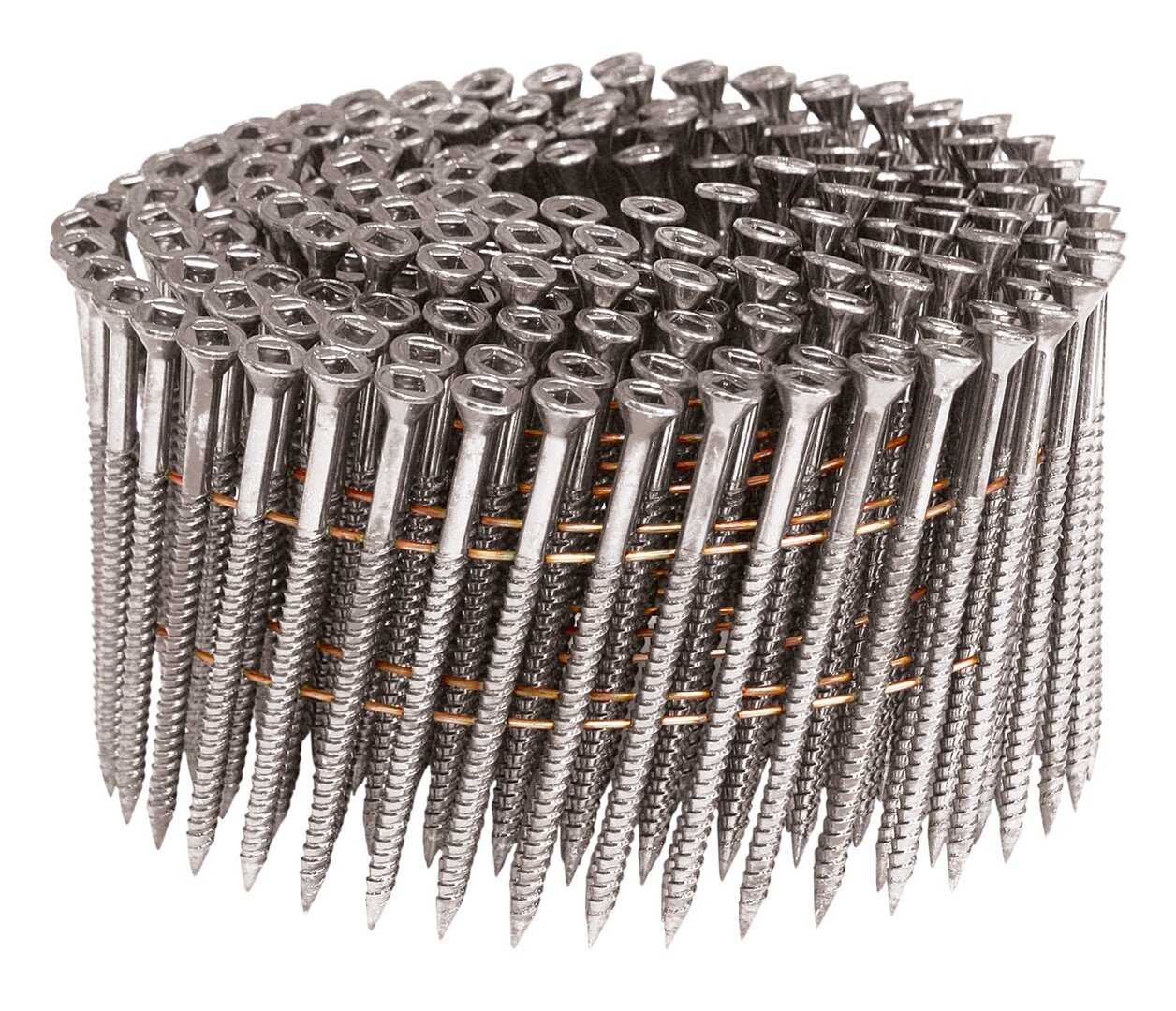

Wire Coil SCRAIL®

Robust magazine type, which we can offer for various SCRAIL® types. Our specially developed FASCO® tools in the SCRAIL® EDITION ensure perfect processing.

Collation type

Wire Coil

Inner diameter

1.7 - 3.7 mm | 0.067 - 0.122"

Outer diameter

2 - 3.9 mm | 0.078 - 0.153"

Length

30 - 90 mm | 1 3/16 - 3 1/2"

Thread type

Fine Thread, Coarse Thread, SUBLOC® PRO, Partial Coarse Thread

FASCO® tool

F33 CN15W-PS50 SCR, F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR

Request product

Stock items Europe

Stock items America

Thread type

Fine Thread, Coarse Thread, SUBLOC® PRO, Partial Coarse Thread

Collation type

Wire Coil

Inner diameter

1.7 - 3.7 mm | 0.067 - 0.122"

Outer diameter

2 - 3.9 mm | 0.078 - 0.153"

Length

30 - 90 mm | 1 3/16 - 3 1/2"

Drive type

phillips®, pozi (Pozidriv®), Torx®, square, versa, HEX key

Coil capacity

200 - 300

Head type

Countersunk head, Pan head, Trumpet head

Finish

electro-galvanized, FASCOAT®, bright, black oxidated

Material

Standard steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4

Collation degrees

15°

FASCO® tool

F33 CN15W-PS50 SCR, F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR

Decking

Fencing

Framing

Sheathing

Roofing

Siding

Furniture & bedding

Manufactured housing

Millwork

Pallets & crates

Steel framing

Structural timber construction

Drywall

Flooring & subflooring

Interior construction

ASTM F1667

We manufacture our products in accordance with the requirements of ASTM F1667. If you need detailed information, we are happy to help.

EN 14592

Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.

Handout_F44AC CN15W-PS65 SCR_EN_2101_screen.pdf

pdf, 288.71 KB

Handout_F60 CN15W-PS90 SCR_1908_EN_screen.pdf

pdf, 1.11 MB

Handout_F60 CN15W-PS90 SCR_1909_US_screen.pdf

pdf, 1.47 MB

F33 CN15W-PS50 SCR

15°, 2", Coil Nailer & SCRAILer

F44AC CN15W-PS65 SCR

15°, 2 1/2", Coil Nailer & SCRAILer

F60 CN15W-PS90 SCR

15°, 3 1/2", Coil Nailer & SCRAILer

New
F50 CN15W-PS65 SCR

15°, 65 mm, Coil Nailer & SCRAILer

Wire Coil SCRAIL®

	Thread type	Collation type	Inner diameter	Outer diameter	Length	Drive type	Coil capacity	Head type	Finish	Material	Collation degrees	FASCO® tool
RBW25SC.78	Fine Thread	Wire Coil	2.5 mm \| 0.1"	2.8 mm \| 0.078 - 0.113"	57 mm \| 1 3/16 - 2 1/4"	Torx®	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F44AC CN15W-PS65 SCRAIL
RBW25SC.79	Fine Thread	Wire Coil	1.7 - 2.5 mm \| 0.067 - 0.1"	2 - 2.8 mm \| 0.078 - 0.113"	30 - 50 mm \| 1 3/16 - 2"	Torx®	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F44AC CN15W-PS65 SCRAIL
RBW25SC.80	Fine Thread	Wire Coil	1.7 - 2.5 mm \| 0.067 - 0.1"	2 - 2.8 mm \| 0.078 - 0.113"	30 - 45 mm \| 1 3/16 - 1 3/4"	Torx®	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F44AC CN15W-PS65 SCRAIL
RBW25SC.81	Fine Thread	Wire Coil	1.7 - 2.5 mm \| 0.067 - 0.1"	2 - 2.8 mm \| 0.078 - 0.113"	30 - 40 mm \| 1 3/16 - 1 37/64"	Torx®	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F44AC CN15W-PS65 SCRAIL
RBW28SC.471	Fine Thread	Wire Coil	2.8 mm \| 0.067 - 0.113"	3.2 mm \| 0.078 - 0.126"	65 mm \| 1 3/16 - 2 1/2"	Torx®	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR
RBW28SC.475	Fine Thread	Wire Coil	2.8 mm \| 0.067 - 0.113"	3.2 mm \| 0.078 - 0.126"	50 mm \| 1 3/16 - 2"	Torx®	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR
RBW28SC.477	Fine Thread	Wire Coil	2.8 mm \| 0.067 - 0.113"	3.2 mm \| 0.078 - 0.126"	75 mm \| 1 3/16 - 3"	Torx®	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR
RBW31SC.55	Coarse Thread	Wire Coil	3.1 mm \| 0.067 - 0.12"	3.9 mm \| 0.078 - 0.153"	90 mm \| 1 3/16 - 3 1/2"	Torx®	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F60 CN15W-PS90 SCR

	Thread type	Collation type	Inner diameter	Outer diameter	Length	Drive type	Coil capacity	Head type	Finish	Material	Collation degrees	FASCO® tool	Similar to
SCWC1013FVEG	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 75 mm \| 1 3/16 - 3"	versa	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC1013FVFC	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 75 mm \| 1 3/16 - 3"	versa	200 - 300	Countersunk head	FASCOAT®	Standard steel	15°	F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC21213FPEG	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 65 mm \| 1 3/16 - 2 1/2"	phillips®	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC21213FSFC	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 65 mm \| 1 3/16 - 2 1/2"	square	200 - 300	Countersunk head	FASCOAT®	Standard steel	15°	F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC21213FVEG	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 65 mm \| 1 3/16 - 2 1/2"	versa	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC21213FVFC	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 65 mm \| 1 3/16 - 2 1/2"	versa	200 - 300	Countersunk head	FASCOAT®	Standard steel	15°	F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC413FPEG	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 38 mm \| 1 3/16 - 1 1/2"	phillips®	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC513FSEG	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 44 mm \| 1 3/16 - 1 3/4"	square	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC613FPEG	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 50 mm \| 1 3/16 - 2"	phillips®	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC613FSFC	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 50 mm \| 1 3/16 - 2"	square	200 - 300	Countersunk head	FASCOAT®	Standard steel	15°	F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC613FVEG	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 50 mm \| 1 3/16 - 2"	versa	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC713FPEG	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 57 mm \| 1 3/16 - 2 1/4"	phillips®	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC713FPEGSF	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 57 mm \| 1 3/16 - 2 1/4"	phillips®	200 - 300	Countersunk head	electro galvanized with Diamond Coating	Standard steel	15°	F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC713FVEG	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	3.2 mm \| 0.078 - 0.126"	30 - 57 mm \| 1 3/16 - 2 1/4"	versa	200 - 300	Countersunk head	electro-galvanized	Standard steel	15°	F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
SCWC713FVEGSF	Fine Thread	Wire Coil	1.7 - 2.8 mm \| 0.067 - 0.113"	2 - 3.2 mm \| 0.078 - 0.126"	30 - 57 mm \| 1 3/16 - 2 1/4"	versa	200 - 300	Countersunk head	electro galvanized with Diamond Coating	Standard steel	15°	F60 CN15W-PS90 SCR	BOSTITCH N75C-1, N89C-1, N100C, N80CB
