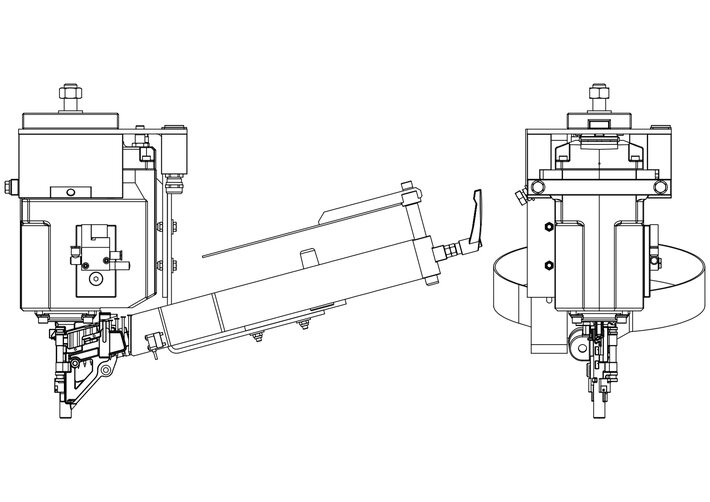

HEAD CN15W-90 SCR ES MAG STIRRUP COVER

Specially designed HEAD CN15W-90 SCR for 15° wire coil nails and SCRAIL®. Customizable to a lot of different applications thanks to its different features.

  • Sensor controlled fastening to avoid dry fires
  • Customizable magazine to different coil sizes
  • Magazine cover to protect the coils in the magazine in different working angles
  • Customizable couplings to mount on automation bridges and robots
Request product

Technical data

Item number
0R31826
Fastener type
15° Wire Coil Nails (High-Load), 15° Wire Coil Scrails (High-Load), 15° Plastic Sheet Scrails (High-Load), 15° Plastic Sheet Nails (High-Load)
Magazine capacity
magazine diameter : 260 mm
Fastener length
50 - 90 mm | 2 - 3 1/2"
Height
418 mm | 16.46"
Width
265 mm | 10.43"
Length
600 mm | 23.62"
Weight
15.5 kg | 34.17 lbs
Pressure
5 - 8 bar | 70 - 120 psi
Actuation system
Remote Trigger
Fasteners
coil

Applications

icon
Manu­factured housing
icon
Pallets & crates
