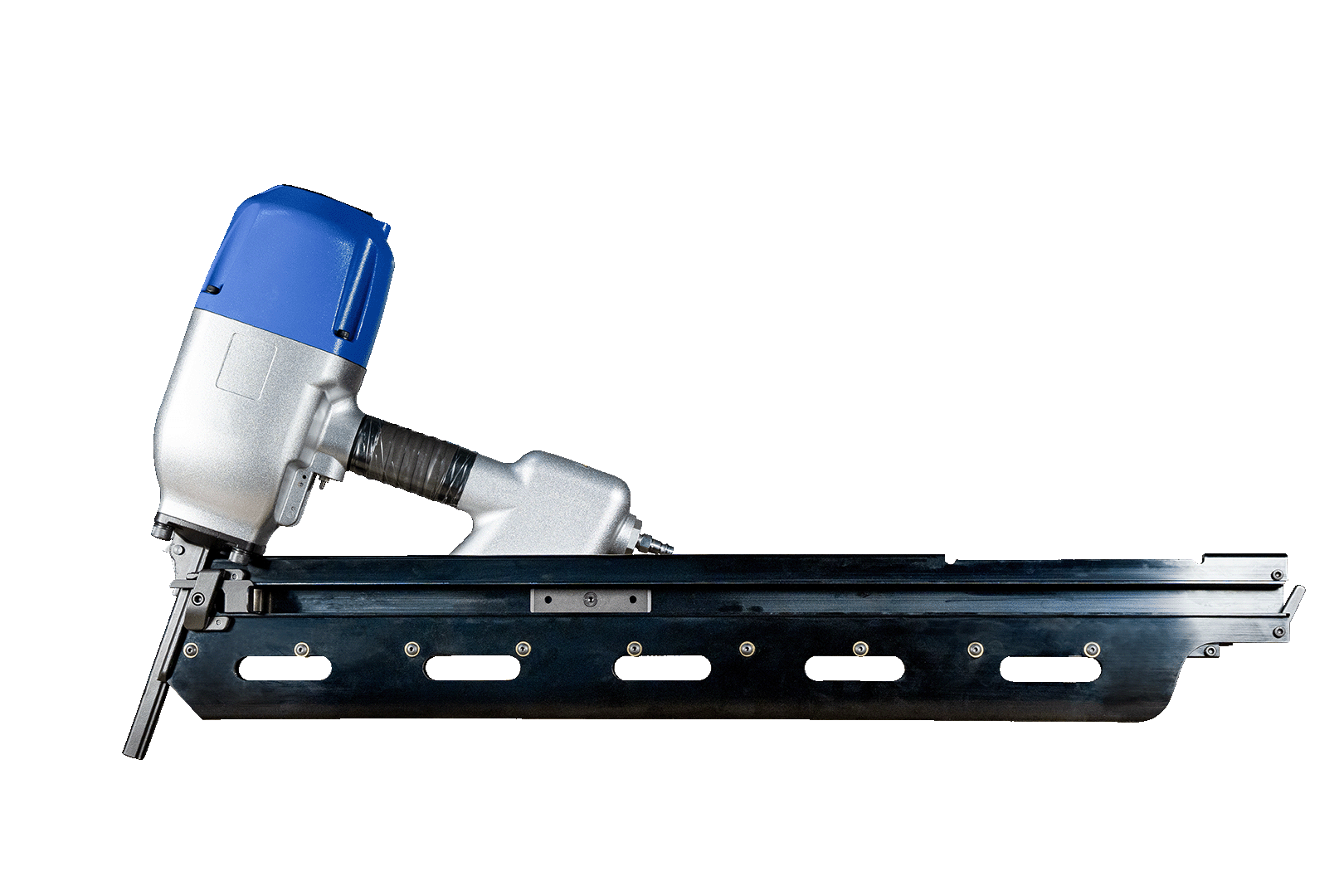

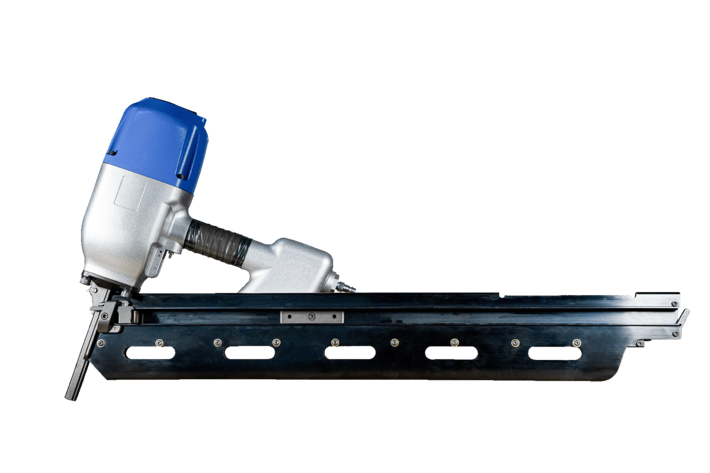

F91BC RHN20-130 LM RC
The F91BC RHN20-130 nailer has been specially developed for JUMBO nails with a length of up to 130 mm. With its wide range of features, this nailer is the ideal solution for various applications in the automation industry. The jumbo nailer features an extended magazine for less frequent reloading and a remote trigger specifically designed for use in automated applications.
Fastener type
20° Plastic strip SCRAIL® Jumbo, 20° Plastic strip Jumbo nails
Item number
11545.01
Nail length
80 - 130 mm | 3 1/8 - 5 1/8"
Scrail length
80 - 130 mm | 3 1/8 - 5 1/8"
Weight
8 kg | 17.64 lbs
Actuation system
Remote Trigger
All FASCO® automation systems have one thing in common - convincing quality and a wide range of customization options.
Technical data
Item number
11545.01
Fastener type
20° Plastic strip SCRAIL® Jumbo, 20° Plastic strip Jumbo nails
Magazine capacity
100
Nail length
80 - 130 mm | 3 1/8 - 5 1/8"
Scrail length
80 - 130 mm | 3 1/8 - 5 1/8"
Height
480 mm | 18.9"
Width
140 mm | 5.51"
Length
950 mm | 37.4"
Weight
8 kg | 17.64 lbs
Pressure
7 - 8 bar | 100 - 120 psi
Actuation system
Remote Trigger
Loading
Top Loading
Applications in detail
-
Timber frame construction load bearing elements
-
Heavy duty pallets, wooden boxes and packing material
-
Timber for landscaping
-
Moorings, docks and jetties
-
Log house construction and roof structures
-
Concrete formwork and retaining walls
-
Glued laminated beams
Applications
Framing
Pallets & crates
Structural timber construction
