Plastic Strip Jumbo SCRAIL®

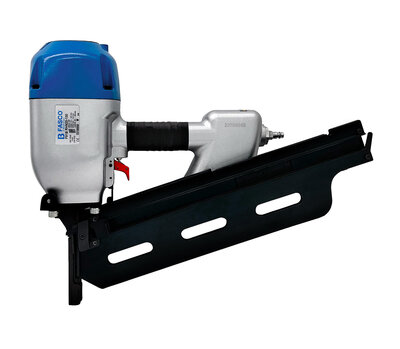

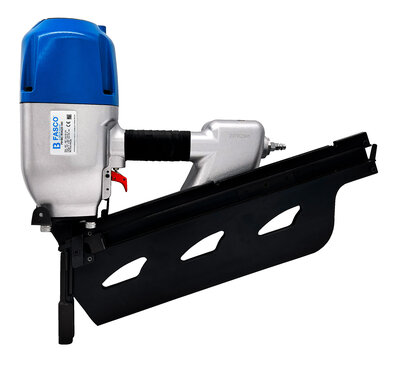

Jumbo SCRAIL® start from a length of 100 mm and are ideal for temporary applications such as transport crates that need to be disassembled after transport. With the powerful FASCO® F91A RHN20-130 tool and the FASCO® F91AC RHN20-160 tool, Jumbo SCRAIL® can be processed effortlessly.

Collation type
Plastic Strip
Inner diameter
3.5 - 4.4 mm | 0.138 - 0.173"
Outer diameter
4.2 - 5.1 mm | 0.165 - 0.201"
Length
100 - 160 mm | 4 - 6 1/4"
Thread type
Fine Thread, Coarse Thread
FASCO® tool
F91A RHN20-130, F91AC RHN20-160
Request product

Product variants

Technical data

Thread type
Fine Thread, Coarse Thread
Collation type
Plastic Strip
Inner diameter
3.5 - 4.4 mm | 0.138 - 0.173"
Outer diameter
4.2 - 5.1 mm | 0.165 - 0.201"
Length
100 - 160 mm | 4 - 6 1/4"
Drive type
versa, phillips®, pozi (Pozidriv®), Torx®, square
Strip capacity
20 - 25
Head type
Countersunk head, Pan head, Trumpet head
Finish
electro-galvanized, bright, FASCOAT®
Material
Standard steel, Stainless A2, Stainless A4
Collation degrees
20° & 33°
FASCO® tool
F91A RHN20-130, F91AC RHN20-160

Applications

icon
Decking
icon
Fencing
icon
Framing
icon
Sheathing
icon
Manu­factured housing
icon
Pallets & crates
icon
Structural timber construction

Standards and test marks

ASTM1667

We manufacture our products in accordance with the requirements of ASTM 1667. If you need detailed information, we are happy to help.

Plastic Strip Jumbo SCRAIL®
  Thread type Collation type Inner diameter Outer diameter Length Drive type Head type Finish Material Collation degrees FASCO® tool
SCFP2048FVEG Fine Thread Plastic Strip 3.5 mm | 0.138" 4.2 mm | 0.165" 100 mm | 4" versa Countersunk head electro-galvanized Standard steel 20° FASCO F91AC RHN20-160, F91A RHN20-130
SCFP3048FVEG Fine Thread Plastic Strip 3.5 mm | 0.138" 4.2 mm | 0.165" 115 mm | 4 1/2" versa Countersunk head electro-galvanized Standard steel 20° FASCO F91AC RHN20-160, F91A RHN20-130
SCFP4048FVEG Fine Thread Plastic Strip 3.5 mm | 0.138" 4.2 mm | 0.165" 130 mm | 5" versa Countersunk head electro-galvanized Standard steel 20° FASCO F91AC RHN20-160, F91A RHN20-130
