Plastic Strip Jumbo Nails

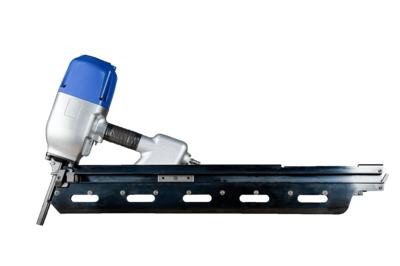

Jumbo nails start from a length of 100 mm and are ideal for load bearing applications in structural timber construction. The powerful FASCO® F91A RHN20-130 tool and the FASCO® F91AC RHN20-160 tool can be used to process jumbo nails with ease.

Collation type
Plastic Strip
Collation degrees
18°, 20°, 23°, 28° & 33°
Length
100 - 160 mm | 4 - 6 1/4"
Diameter
3.4 - 5 mm | 0.135 - 0.197"
FASCO® tool
FASCO F91A RHN20-130, F91AC RHN20-160
Request product

Technical data

Head type
countersunk head, domed head, flat head
Collation type
Plastic Strip
Diameter
3.4 - 5 mm | 0.135 - 0.197"
Length
100 - 160 mm | 4 - 6 1/4"
Strip capacity
20 - 28
Collation degrees
18°, 20°, 23°, 28° & 33°
Finish
bright, electro-galvanized, hot dip galvanized
Material
Standard Steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4, High Carbon Steel, Aluminum
Nailpoint
blunt point, diamond point
Shank
barbed, ring, screw, smooth, square, twisted-spiral
FASCO® tool
FASCO F91A RHN20-130, F91AC RHN20-160

Applications

icon
Decking
icon
Framing
icon
Manu­factured housing
icon
Pallets & crates

Standards and test marks

ASTM1667

We manufacture our products in accordance with the requirements of ASTM 1667. If you need detailed information, we are happy to help.

CE14592

Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.

ESR1539

Many of our fasteners are approved for use in the U.S. market according to ESR 1539.

Plastic Strip Jumbo Nails
  Head type Collation type Diameter Length Collation degrees Finish Material Nailpoint Shank FASCO® tool
FP203120E flat head Plastic Strip 3.3 mm | 0.131" 102 mm | 4" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
FP203520SHDE flat head Plastic Strip 3.4 mm | 0.135" 102 mm | 4" 20° hot dip galvanized Standard Steel diamond point screw FASCO F91A RHN20-130, F91AC RHN20-160
FP204820E flat head Plastic Strip 3.8 mm | 0.148" 102 mm | 4" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
FP204820RE flat head Plastic Strip 3.8 mm | 0.148" 102 mm | 4" 20° bright Standard Steel diamond point ring FASCO F91A RHN20-130, F91AC RHN20-160
FP204820RHDE flat head Plastic Strip 3.8 mm | 0.148" 102 mm | 4" 20° hot dip galvanized Standard Steel diamond point ring FASCO F91A RHN20-130, F91AC RHN20-160
FP303420SE flat head Plastic Strip 3.4 mm | 0.134" 115 mm | 4 1/2" 20° bright Standard Steel diamond point screw F91A RHN20-130, F91AC RHN20-160
FP304820E flat head Plastic Strip 3.8 mm | 0.148" 114 mm | 4 1/2" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
FP426531E flat head Plastic Strip 4.2 mm | 0.165" 130 mm | 5 1/8" 33° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
FP454820SHDE1M flat head Plastic Strip 3.8 mm | 0.148" 130 mm | 5 1/8" 20° hot dip galvanized Standard Steel diamond point screw FASCO F91A RHN20-130, F91AC RHN20-160
FP455020E flat head Plastic Strip 3.8 mm | 0.15" 130 mm | 5 1/8" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, FASCO F91AC RHN20-160
FP456520E flat head Plastic Strip 4.2 mm | 0.165" 130 mm | 5 1/8" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
FP636520E flat head Plastic Strip 4.2 mm | 0.165" 159 mm | 6 1/4" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
FP636520SHDE flat head Plastic Strip 4.2 mm | 0.165" 159 mm | 6 1/4" 20° hot dip galvanized Standard Steel diamond point screw FASCO F91A RHN20-130, F91AC RHN20-160
FP638020E flat head Plastic Strip 4.6 mm | 0.18" 159 mm | 6 1/4" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
  Head type Collation type Diameter Length Collation degrees Finish Material Nailpoint Shank FASCO® tool
RN34.439 flat head Plastic Strip 3.4 mm | 0.135" 100 mm | 4" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
RN38.1029 flat head Plastic Strip 3.8 mm | 0.15" 100 mm | 4" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
RN38.1030 flat head Plastic Strip 3.8 mm | 0.15" 120 mm | 4 3/4" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
RN38.1063 flat head Plastic Strip 3.8 mm | 0.15" 130 mm | 5 1/8" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
RN42.519 flat head Plastic Strip 4.2 mm | 0.165" 145 mm | 5 45/64" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
RN42.522 flat head Plastic Strip 4.2 mm | 0.165" 160 mm | 6 1/4" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
RN42.532 flat head Plastic Strip 4.2 mm | 0.165" 130 mm | 5 1/8" 20° bright Standard Steel diamond point smooth FASCO F91A RHN20-130, F91AC RHN20-160
