Fasteners /// Nails /// Coil Nails

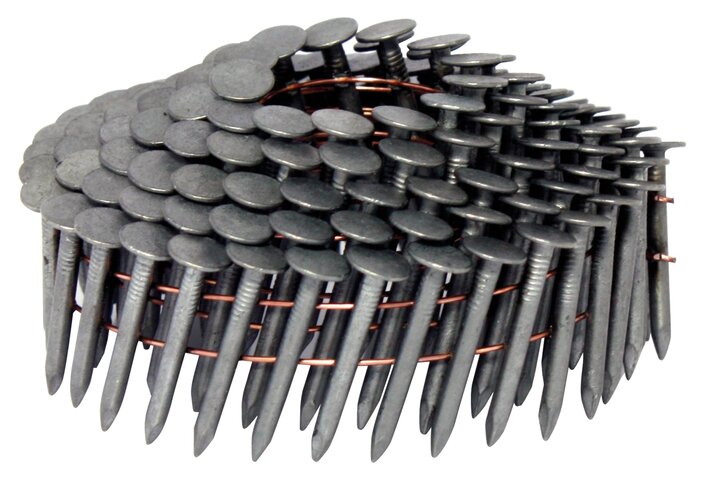

Wire Coil Roofing Nails

Optimal and cost-effective solution for fastening bitumen membranes and bitumen shingles. Two specially developed FASCO® tools ensure maximum efficiency during processing.

Collation type

Wire Coil

Collation degrees

10° und 15°

Length

16 - 45 mm | 5/8 - 1 3/4"

Diameter

3 mm | 0.118"

FASCO® tool

FASCO F42 CN15W-45 ROOF, F48A CN15W-45 ROOFING

Request product

Stock items Europe

Head type

flat head

Collation type

Wire Coil

Diameter

3 mm | 0.118"

Length

16 - 45 mm | 5/8 - 1 3/4"

Coil capacity

120 - 500

Coil shape

conical

Collation degrees

10° und 15°

Finish

bright, electro-galvanized, hot dip galvanized, coppered

Material

Standard Steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4

Nailpoint

chisel point, diamond point

Shank

ring, smooth

FASCO® tool

FASCO F42 CN15W-45 ROOF, F48A CN15W-45 ROOFING

Roofing

ASTM F1667

We manufacture our products in accordance with the requirements of ASTM F1667. If you need detailed information, we are happy to help.

Handout_F42 CN15W-45 ROOFING_2001_EN_screen.pdf

pdf, 626.61 KB

Handout_F48A CN15W-45 ROOFING_2011_EN_screen.pdf

pdf, 624.49 KB

Handout_F48A CN15W-45 ROOFING_2011_US_screen.pdf

pdf, 226.68 KB

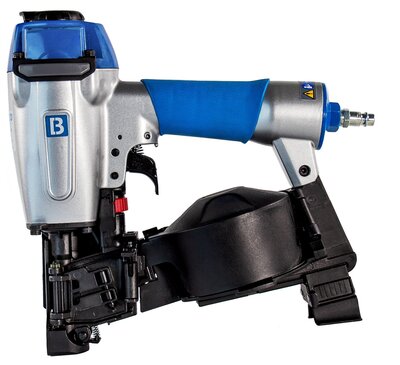

F42 CN15W-45 ROOFING

15°, 1 3/4", Roofing Coil Nailer

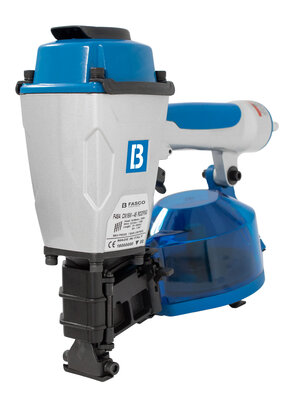

F48A CN15W-45 ROOFING

15°, 1 3/4", Roofing Coil Nailer

Wire Coil Roofing Nails

	Head type	Collation type	Diameter	Length	Coil capacity	Coil shape	Collation degrees	Finish	Material	Nailpoint	Shank	FASCO® tool
RBW305.873	flat head	Wire Coil	3 mm \| 0.118"	19 mm \| 5/8 - 0 3/4"	120 - 500	conical	15°	hot dip galvanized	Standard Steel	diamond point	ring	F48A CN15W-45 ROOFING, FASCO F42 CN15W-45 ROOF
RBW305.874	flat head	Wire Coil	3 mm \| 0.118"	22 mm \| 5/8 - 0 55/64"	120 - 500	conical	15°	hot dip galvanized	Standard Steel	diamond point	ring	FASCO F42 CN15W-45 ROOF, F48A CN15W-45 ROOFING
RBW305.875	flat head	Wire Coil	3 mm \| 0.118"	25 mm \| 5/8 - 1"	120 - 500	conical	15°	hot dip galvanized	Standard Steel	diamond point	ring	FASCO F42 CN15W-45 ROOF, F48A CN15W-45 ROOFING
RBW305.876	flat head	Wire Coil	3 mm \| 0.118"	32 mm \| 5/8 - 1 1/4"	120 - 500	conical	15°	hot dip galvanized	Standard Steel	diamond point	smooth	FASCO F42 CN15W-45 ROOF, F48A CN15W-45 ROOFING
RBW305.877	flat head	Wire Coil	3 mm \| 0.118"	38 mm \| 5/8 - 1 1/2"	120 - 500	conical	15°	hot dip galvanized	Standard Steel	diamond point	smooth	FASCO F42 CN15W-45 ROOF, F48A CN15W-45 ROOFING
RBW305.878	flat head	Wire Coil	3 mm \| 0.118"	45 mm \| 5/8 - 1 3/4"	120 - 500	conical	15°	hot dip galvanized	Standard Steel	diamond point	smooth	FASCO F42 CN15W-45 ROOF, F48A CN15W-45 ROOFING
