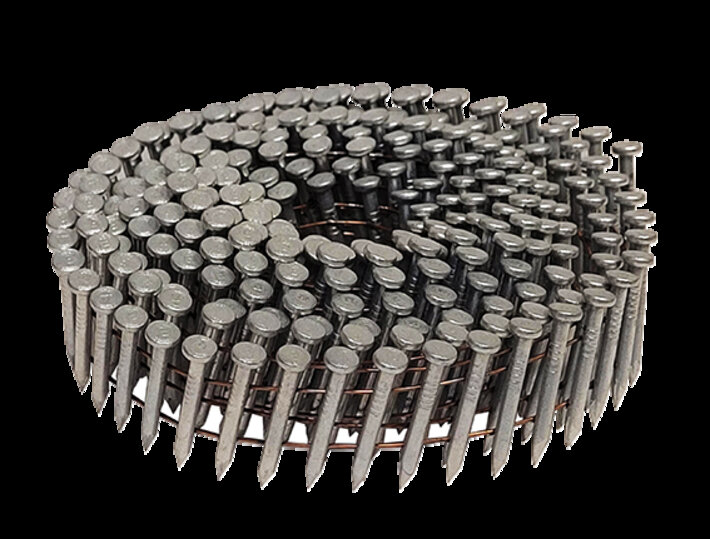

ASM-120 WIRE COIL PINS

Product only available in: United States

Beck's ET&F® brand ASM 120 pins are the best choice for fast and cost-effective fastening of Cosella-Dörken's DELTA®-MS foundation protection membrane to masonry and concrete structures. With a pin diameter 20 % larger than competing products, they provide an extra strong fastening. Thanks to their 28 mm length, they are versatile and can be used for both DELTA® MOLD STRIP and DELTA®-FAST'ner, eliminating the need to stock two different nail sizes. Another plus: the nails cost up to 25 % less than comparable competitor products.

Collation type
Wire Coil
Collation degrees
15°
Length
28 - 32 mm | 1 1/8 - 1 1/4"
Diameter
3 mm | 0.118"
Request product

Technical data

Head type
flat head
Collation type
Wire Coil
Diameter
3 mm | 0.118"
Length
28 - 32 mm | 1 1/8 - 1 1/4"
Coil capacity
200
Coil shape
flat
Collation degrees
15°
Finish
mechanically galvanized
Material
High Carbon Steel
Nailpoint
sharp pin point
Shank
smooth

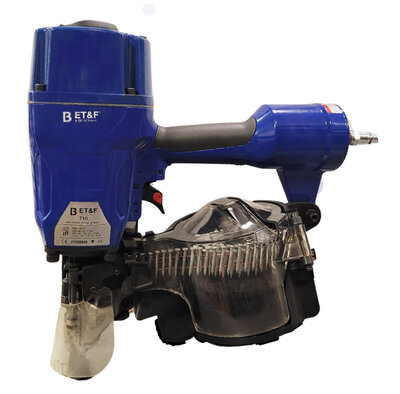

FASCO® tool
ET&F Modell 710, MODEL 710CD

Applications

icon
Concrete-Masonry DELTA®-MS Foundation Protection Membrane

Standards and test marks

ESR 1844

This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement HardiePanel® siding, manufactured by the James Hardie Building Products, to light gauge steel framing.

ESR 2273

This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement Hardiesoffit® Vented Plus™ manufactured by James Hardie Building Products to light gauge steel framing.

ESR 2290

This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement HardiePlank® siding, manufactured by the James Hardie Building Products, to light gauge steel framing and to concrete masonry units.
