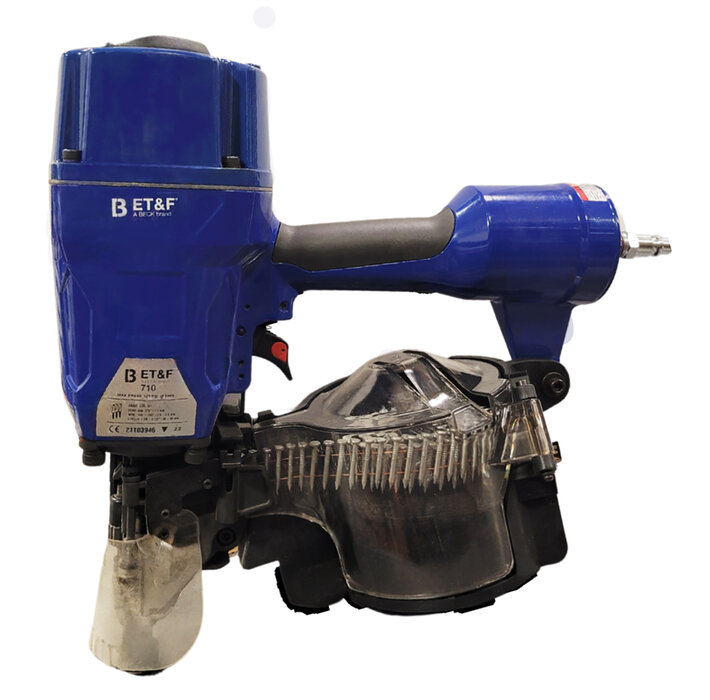

MODEL 710CD

Pneumatic fastening system for cost efficient fastening of Cosella-Dörken‘s DELTA®-MS Foundation Protection Membrane to masonry and poured concrete structures.
The ET&F® 15° Model 710CD tool and ASM-120-0112W fasteners were developed specifically for use with the DELTA®-MS foundation protection membrane. Millions of these fasteners have been sold since their introduction in 2010, saving Cosella-Dörken Certified Installers time and money when compared to other popular fastening models.

  • Pin diameter 20% larger than competitive pins making for a stronger fastener
  • Special 1-1/8" length pins can be used with both DELTA®-FAST‘ner and DELTA®-MOLD STRIP, eliminating the need for installers to stock two sizes of pins (1-1/4" available upon request)
  • Even in humid and non-ground level environments, the ET&F® Model 710CD pneumatic nailer guarantees reliable results
  • The depth regulation and washer adapter ensure exact positioning of the nails
  • With over 2 pounds less weight compared to gas-powered tools, the ET&F® Model 710CD is particularly lightweight
Request product

Technical data

Nail

Head type
flat head
Collation type
Wire Coil
Diameter
3 - 3 mm | 0.12 - 0.12"
Length
28 - 32 mm | 1 1/8 - 1 1/4"
Coil capacity
200
Coil shape
flat
Collation degrees
15
Finish
Aericote® 1000
Material
High Carbon Steel
Nailpoint
sharp pin point
Shank
smooth

Tool

Item number
ETF710CD
Magazine capacity
200
Nail length
28 - 32 mm | 1 1/8 - 1 1/4"
Height
387 mm | 15.236"
Width
142 mm | 5.591"
Length
369 mm | 14.528"
Weight
3.59 kg | 7.915 lbs
Pressure
5 - 8 bar | 75 - 115 psi
Actuation system
Contact Actuation, Full Sequential Actuation
Loading
coil

All benefits

  • Pin diameter 20% larger than competitive pins making for a stronger fastener.
  • Special 1-1/8" length pins can be used with both DELTA®-FAST‘ner and DELTA®-MOLDSTRIP, eliminating the need for installers to stock two sizes of pins. (1-1/4" available upon request)

  • Reliability of a pneumatic tool in damp, below grade environments.
  • Built in overdrive control on tool with washer adaptor to accurately set fasteners.
  • Light weight air tool is more than 2lbs lighter than competitive gas-powered tools.
  • Convenient 4000 count packages; efficient 200 count coils.

  • Fasteners cost up to 25% less than competitive products.

Applications

icon
Concrete-Masonry DELTA®-MS Foundation Protection Membrane
