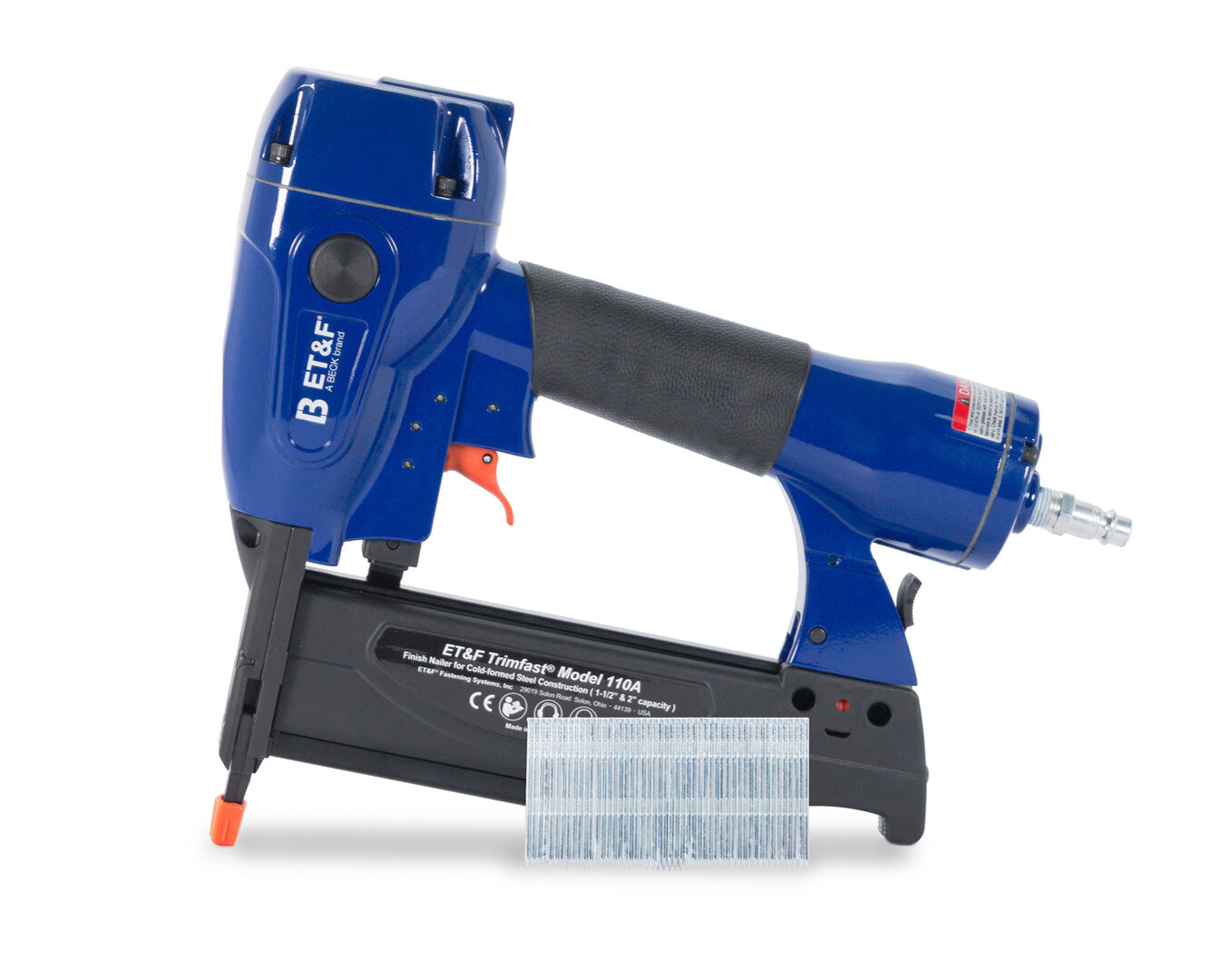

TRIMFAST® MODEL 110A System

FIBER CEMENT AND WOOD MOLDING TO STEEL FASTENING SYSTEM. The Model TRIMFAST® 110A tool drives TRIMFAST® AST-075 finish pins to attach popular trim materials to steel 68 mil (14 GA.) and lighter. The tool features an easy-load magazine, compact design and lightweight. This new and improved model had adjustable overdrive control, directional exhaust port, and last nail lockout to prevent blank firing. At 100 psi maximum air pressure, the tool consistently countersinks the fasteners, even when used with hardwood moldings. The tool comes standard with a durable plastic carrying case. For heavy duty applications like fastening to masonry or those that require fasteners longer than 2", see our Model 210.

Request product

Technical data

Pin

Pin type
T-Nails
Length
38 - 50 mm | 1 1/2 - 2"
Wire diameter
1.83 mm | 0.07"
Head size
3 mm | 1/8"
Strip angle
Finish
electro-galvanized
Material
Hardened Steel

Tool

Item number
ETF110A
Fastener type
AST-075 Finish Pins
Magazine capacity
50
Pin Length
32 - 50 mm | 1 1/4 - 2"
Height
254 mm | 10"
Width
73 mm | 2 7/8"
Length
270 mm | 10 5/8"
Weight
1.5 kg | 3.3 lbs
Pressure
5 - 7.5 bar | 70 - 110 psi
Actuation system
Single Sequential Actuation
Loading
bottom loading

Applications

icon
Siding
icon
Sheathing
icon
Manufactured housing
icon
Steel framing
icon
Finish & trim
