Systems /// SCRAIL® Systems /// SCRAIL® SUBLOC® PRO System

SCRAIL® SUBLOC® PRO 20° Plastic Strip system

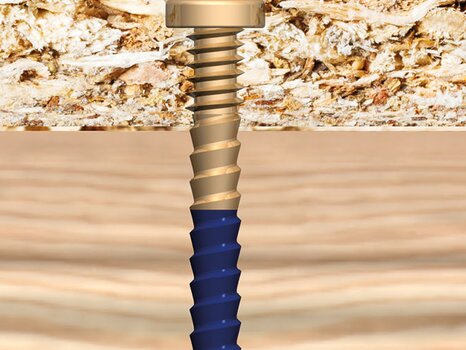

SCRAIL® SUBLOC® PRO enables quick and uncomplicated installation of floors and subfloors. Thanks to the special thread, the special system guarantees resilient floors and subfloors without squeaking even after years of use.

Request product

Stock items America

Scrail

Thread type

SUBLOC® PRO

Collation type

Plastic Strip

Inner diameter

2.8 mm | 0.113"

Outer diameter

3.2 mm | 0.126"

Length

45 - 75 mm | 1 3/4 - 3"

Drive type

Torx®, square

Strip capacity

Head type

Pan head

Finish

electro-galvanized, FASCOAT®

Material

Standard steel

Collation degrees

20°

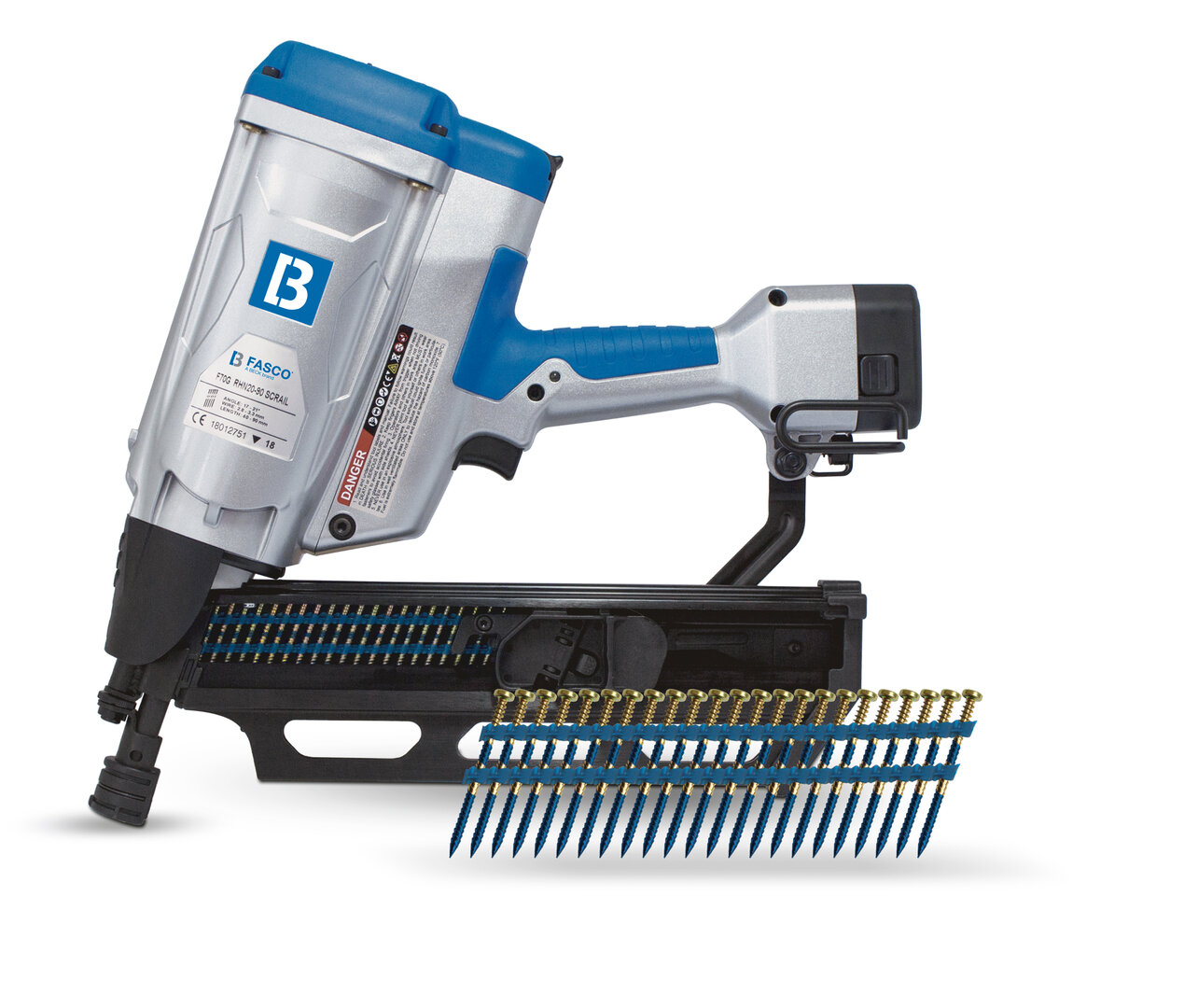

FASCO® tool

F58A RHN20-90C SCRAIL

Tool

Item number

000011753.01

Fastener type

20° & 17° Plastic Strip SCRAIL® (fine and coarse threads)

Magazine capacity

Nail length

50 - 75 mm | 2 - 3"

Height

368 mm | 14.49"

Width

137 mm | 5.39"

Length

540 mm | 21.2"

Weight

3.56 kg | 7.84 lbs

Pressure

5 - 8 bar | 70 - 120 psi

Actuation system

Contact Actuation

top loading

Sheathing

Manufactured housing

Structural timber construction

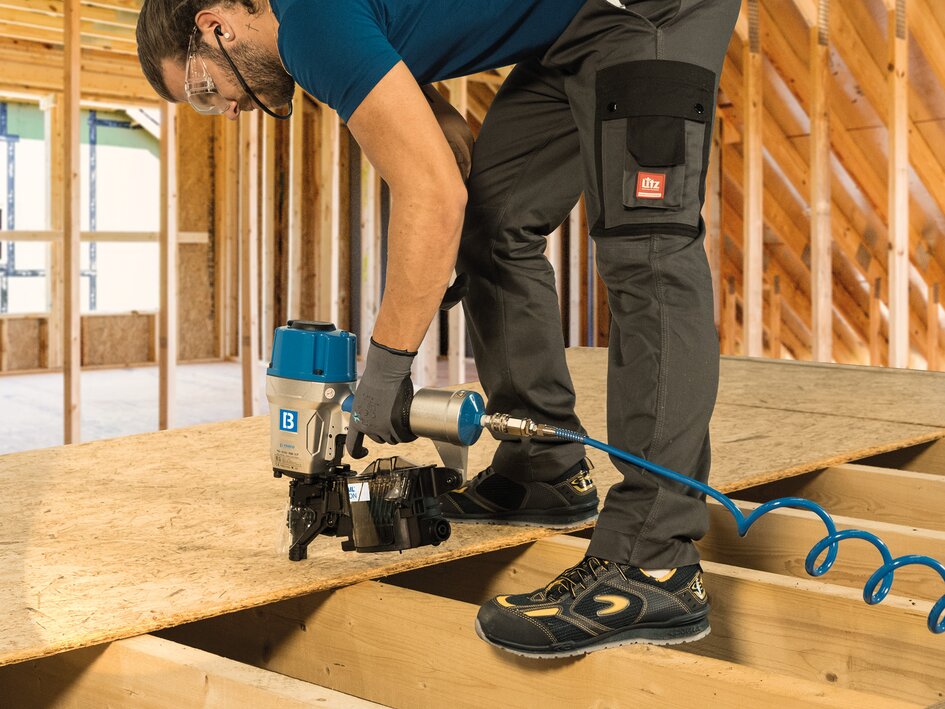

Flooring & subflooring

ASTM F1667

We manufacture our products in accordance with the requirements of ASTM F1667. If you need detailed information, we are happy to help.

EN 14592

Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.

IAPMO ER-344

SCRAIL® SUBLOC® PRO fasteners recognized in this report were evaluated for use as wood fasteners. The dimensional and structural performance properties of the SCRAIL® SUBLOC® PRO fasteners were evaluated for compliance with the following codes: 2018, 2015, 2012, and 2009 International Building Code® (IBC) | 2018, 2015, 2012, and 2009 International Residential Code® (IRC) | 2020 Florida Building Code, Building | 2020 Florida Building Code, Residential

Download

Handout_SUBLOC PRO_2010_DE_screen.pdf

pdf, 614.06 KB

Handout_SUBLOC PRO_2010_EN_screen.pdf

pdf, 613.05 KB

Handout_SUBLOC PRO_2010_US_screen.pdf

pdf, 599.79 KB

F58A RHN20-90C SCR LOW PROFIL

17° & 20°, 3 1/2", Strip Nailer & SCRAILer

PLASTIC STRIP SCRAIL® SUBLOC®PRO

20° Strip, 1 3/4 - 3"

SCRAIL® SUBLOC® PRO 20° Plastic Strip system

	Thread type	Collation type	Inner diameter	Outer diameter	Length	Drive type	Strip capacity	Head type	Finish	Material	Collation degrees	FASCO® tool	Item number	Fastener type	Magazine capacity	Nail length	Height	Width	Length	Weight	Pressure	Actuation system	Loading
Plastic Strip SCRAIL® SubLoc® Pro	SUBLOC® PRO	Plastic Strip	2.8 mm \| 0.113"	3.2 mm \| 0.126"	57 mm \| 2 1/4"	Torx®	25	Pan head	electro galvanized with Diamond Coating	Standard steel	20°	F58A RHN20-90C SCRAIL, F58AC RHN20-90B SCR	000011753.01	20° & 17° Plastic Strip SCRAIL® (fine and coarse threads)	62	50 - 75 mm \| 2 - 3"	368 mm \| 14.49"	137 mm \| 5.39"	540 mm \| 21.2"	3.56 kg \| 7.84 lbs	5 - 8 bar \| 70 - 120 psi	Contact Actuation	top loading
