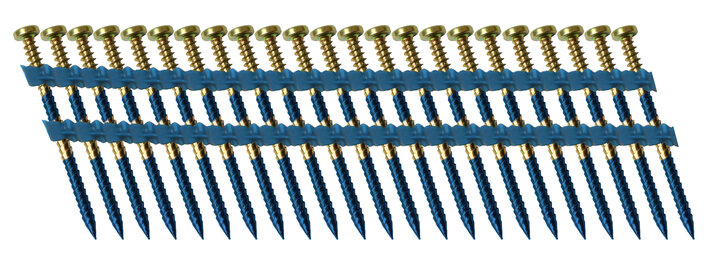

Plastic Strip SCRAIL® SubLoc® Pro

Aggressive thread design combined with BECK's innovative Diamond Coating for squeak-free subfloors. With the extremely reliable FASCO® F70G RHN20-90 SCRAIL® gas tool in the SCRAIL EDITION, the SCRAIL® SUBLOC® PRO can be processed efficiently and safely.

Collation type
Plastic Strip
Inner diameter
2.8 mm | 0.113"
Outer diameter
3.2 mm | 0.126"
Length
45 - 75 mm | 1 3/4 - 3"
Thread type
SUBLOC® PRO
FASCO® tool
F58A RHN20-90C SCRAIL, F58AC RHN20-90B SCR
Request product

Product variants

Technical data

Thread type
SUBLOC® PRO
Collation type
Plastic Strip
Inner diameter
2.8 mm | 0.113"
Outer diameter
3.2 mm | 0.126"
Length
45 - 75 mm | 1 3/4 - 3"
Drive type
Torx®, square
Strip capacity
20 - 25
Head type
Pan head
Finish
electro-galvanized, FASCOAT®
Material
Standard steel
Collation degrees
20°
FASCO® tool
F58A RHN20-90C SCRAIL, F58AC RHN20-90B SCR

Applications

icon
Sheathing
icon
Manu­factured housing
icon
Structural timber construction
icon
Flooring & subflooring

Standards and test marks

CE14592

Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.

IAPMO ER-344

SCRAIL® SUBLOC® PRO fasteners recognized in this report were evaluated for use as wood fasteners. The dimensional and structural performance properties of the SCRAIL® SUBLOC® PRO fasteners were evaluated for compliance with the following codes: 2018, 2015, 2012, and 2009 International Building Code® (IBC) | 2018, 2015, 2012, and 2009 International Residential Code® (IRC) | 2020 Florida Building Code, Building | 2020 Florida Building Code, Residential

ASTM1667

We manufacture our products in accordance with the requirements of ASTM 1667. If you need detailed information, we are happy to help.

Plastic Strip SCRAIL® SubLoc® Pro
  Thread type Collation type Inner diameter Outer diameter Length Drive type Head type Finish Material Collation degrees FASCO® tool
SCFP713FSEGSFP SUBLOC® PRO Plastic Strip 2.8 mm | 0.113" 3.2 mm | 0.126" 57 mm | 2 1/4" Torx® Pan head electro galvanized with Diamond Coating Standard steel 20° F58A RHN20-90C SCRAIL, F58AC RHN20-90B SCR
