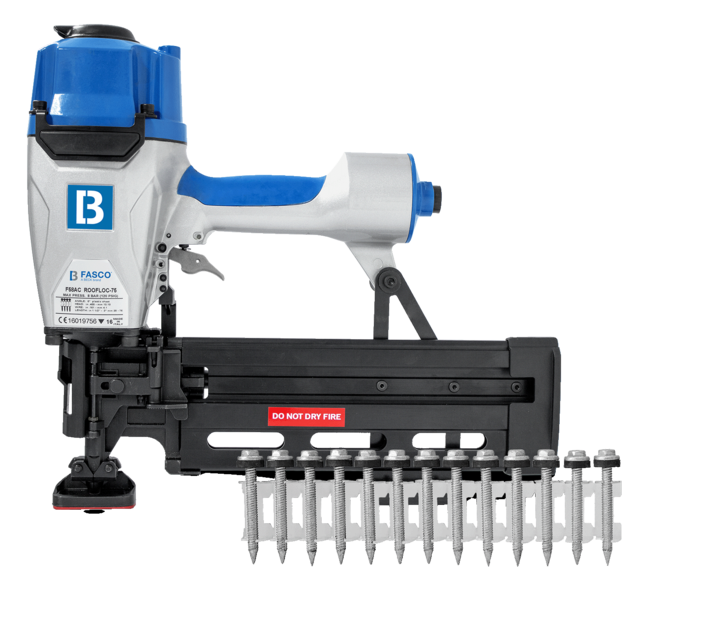

SCRAIL® ROOFLOC® system

The SCRAIL® ROOFLOC® system was developed to install trapezoidal sheet metal roofs and façades quickly and efficiently. The achievable performance increase is 100% and more. The SCRAIL® ROOFLOC® nail screw is pneumatically driven in with the ROOFLOC® installation tool of the FASCO® tool line from BECK and can be completely unscrewed for repair work.

  • The SCRAIL® ROOFLOC® system is approved for wood applications (acc. to CE-EN14592) as well as for sheet metal to wood applications (acc. to general type approval DiBt: Z-14.4-818).
  • With a general construction type approval from DIBt, it has been extensively tested for fastening to the substrate so that the system has also found its way into the regulations for lightweight metal construction (IFBS).
Request product

Product variants

Technical data

Scrail

Thread type
Steelthread
Collation type
Plastic Sheet Strip
Inner diameter
3.8 mm | 0.148"
Outer diameter
4.2 mm | 0.165"
Length
37 - 75 mm | 1.5 - 3"
Drive type
HEX key
Strip capacity
30
Head type
ROOFLOC® head
Finish
FASCOAT®, FASCOAT® painted
Material
Stainless A2, Standard steel
Collation degrees
FASCO® tool
FASCO F58AC ROOFLOC-75

Tool

Item number
000011547.02
Fastener type
0° Plastic Sheet Strip Roofloc® SCRAIL®
Magazine capacity
30
Fastener length
37 - 75 mm | 1.5 - 3"
Height
375 mm | 14.76"
Width
130 mm | 5.12"
Length
415 mm | 16.34"
Weight
4.13 kg | 9.1 lbs
Pressure
7 - 8 bar | 100 - 120 psi
Actuation system
single shot
Fasteners
rear loading

Applications

icon
Roofing
icon
Siding

Standards and test marks

DIbt - General construction technique permit Z-14.4-818

SCRAIL® ROOFLOC® nail screws have a general technical approval (DIBT: Z-14.4-818) and a CE (EN 14592) compliance mark.

SCRAIL® ROOFLOC® system
  Thread type Collation type Inner diameter Outer diameter Length Drive type Strip capacity Head type Finish Material Collation degrees FASCO® tool Item number Fastener type Magazine capacity Fastener length Height Width Length Weight Pressure Actuation system Fasteners
CN38VRLSC.69 Steelthread Plastic Sheet Strip 3.8 mm | 0.148" 4.2 mm | 0.165" 37 mm | 1.5" HEX key 30 ROOFLOC® head FASCOAT® Standard steel FASCO F58AC ROOFLOC-75 000011547.02 0° Plastic Sheet Strip Roofloc® SCRAIL® 30 37 - 75 mm | 1.5 - 3" 375 mm | 14.76" 130 mm | 5.12" 415 mm | 16.34" 4.13 kg | 9.1 lbs 7 - 8 bar | 100 - 120 psi single shot rear loading
