Fasteners /// SCRAIL® Nail Screw Fasteners /// Strip SCRAIL®

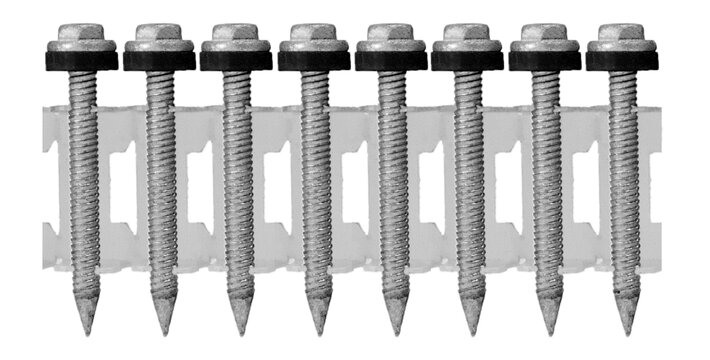

SCRAIL® RoofLoc® Plastic Sheet Strip

Specially developed for the efficient and secure fastening of roofs and façades made of trapezoidal sheet metal. SCRAIL® ROOFLOC® are processed with the powerful and reliable FASCO® F58AC ROOFLOC-75 tool in the SCRAIL EDITION.

Collation type

Plastic Sheet Strip

Inner diameter

3.8 mm | 0.148"

Outer diameter

4.2 mm | 0.165"

Length

37 - 75 mm | 1 1/2 - 3"

Thread type

Steelthread

FASCO® tool

FASCO F58AC ROOFLOC-75

Request product

Stock items Europe

Stock items America

Thread type

Steelthread

Collation type

Plastic Sheet Strip

Inner diameter

3.8 mm | 0.148"

Outer diameter

4.2 mm | 0.165"

Length

37 - 75 mm | 1 1/2 - 3"

Drive type

HEX key

Strip capacity

Head type

ROOFLOC® head

Finish

FASCOAT®

Material

Standard steel, Stainless Steel 304 / A2

Collation degrees

0°

FASCO® tool

FASCO F58AC ROOFLOC-75

Roofing

Siding

DIbt - General construction technique permit Z-14.4-818

SCRAIL® ROOFLOC® nail screws have a general technical approval (DIBT: Z-14.4-818) and a CE (EN 14592) compliance mark.

Download

EN 14592

Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.

Handout_SCRAIL ROOFLOC_2107_EN_screen.pdf

pdf, 426.76 KB

Handout_SCRAIL ROOFLOC_2107_US_screen.pdf

pdf, 423.11 KB

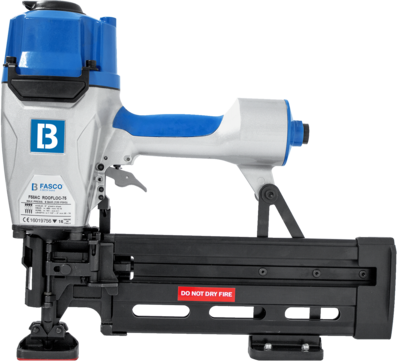

F58AC ROOFLOC-75

0°, 3", Metal Roof Installation Tool

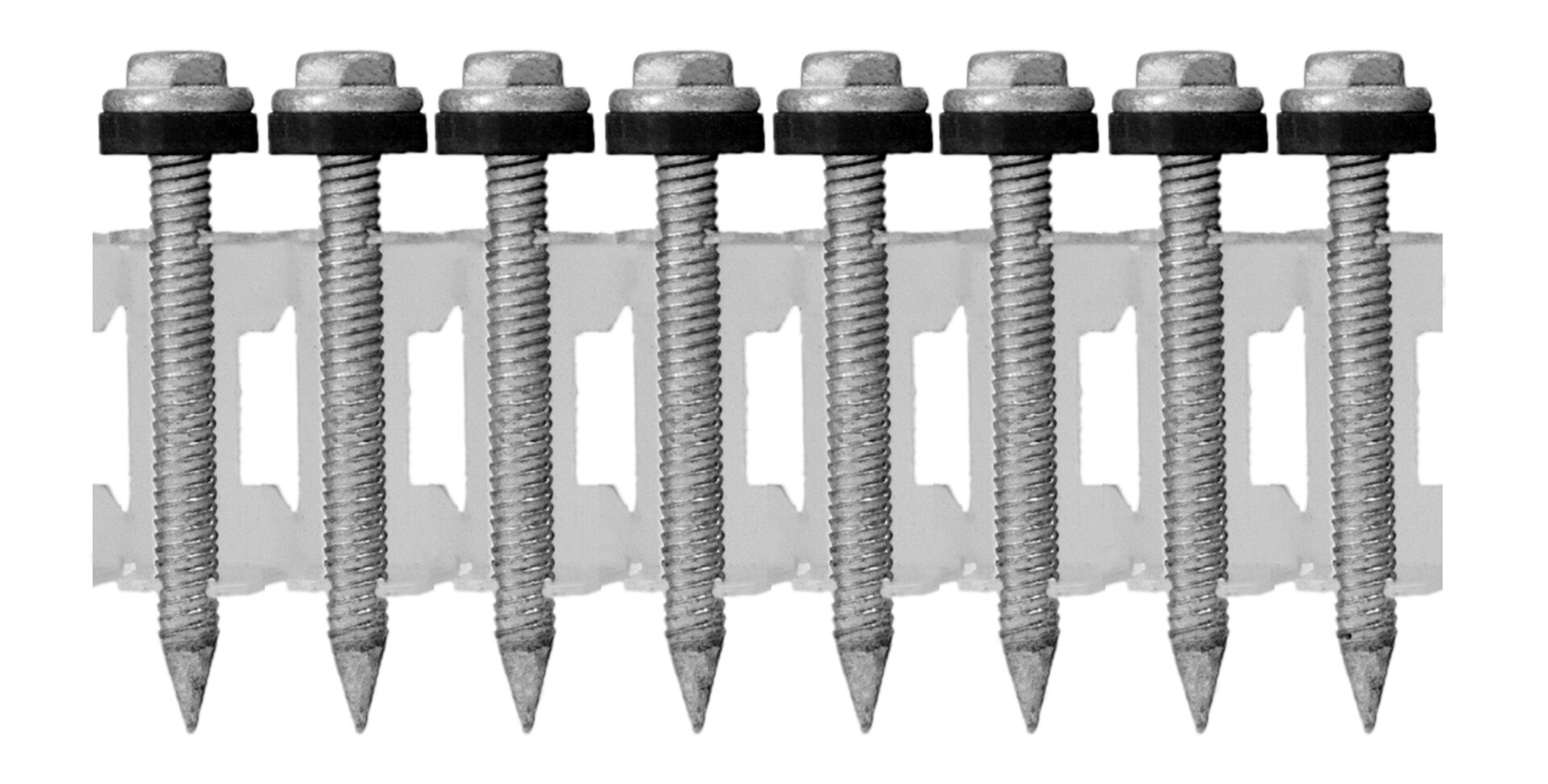

SCRAIL® RoofLoc® Plastic Sheet Strip

	Thread type	Collation type	Inner diameter	Outer diameter	Length	Drive type	Strip capacity	Head type	Finish	Material	Collation degrees	FASCO® tool
CN38VRLSC.69	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	37 mm \| 1 1/2 - 1 1/2"	HEX key	30	ROOFLOC® head	FASCOAT®	Standard steel	0°	FASCO F58AC ROOFLOC-75

	Thread type	Collation type	Inner diameter	Outer diameter	Length	Drive type	Strip capacity	Head type	Finish	Material	Collation degrees	FASCO® tool
SCPC1048FSHFC	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	37 - 75 mm \| 1 1/2 - 3"	HEX key	30	ROOFLOC® head	FASCOAT®	Standard steel	0°	FASCO F58AC ROOFLOC-75
SCPC1048FSHFCP	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	75 mm \| 1 1/2 - 3"	HEX key	30	ROOFLOC® head	FASCOAT® painted	Standard steel	0°	FASCO F58AC ROOFLOC-75
SCPC1048FSHSS	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	75 mm \| 1 1/2 - 3"	HEX key	30	ROOFLOC® head	FASCOAT®	Stainless Steel 304 / A2	0°	FASCO F58AC ROOFLOC-75
SCPC1048FSHSSP	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	75 mm \| 1 1/2 - 3"	HEX key	30	ROOFLOC® head	painted	Stainless Steel 304 / A2	0°	FASCO F58AC ROOFLOC-75
SCPC21248FSHEGPW	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	65 mm \| 1 1/2 - 2 1/2"	HEX key	30	ROOFLOC® head	electro-galvanized	Standard steel	0°	FASCO F58AC ROOFLOC-75
SCPC21248FSHFC	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	65 mm \| 1 1/2 - 2 1/2"	HEX key	30	ROOFLOC® head	FASCOAT®	Standard steel	0°	FASCO F58AC ROOFLOC-75
SCPC21248FSHFCP	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	65 mm \| 1 1/2 - 2 1/2"	HEX key	30	ROOFLOC® head	FASCOAT® painted	Standard steel	0°	FASCO F58AC ROOFLOC-75
SCPC21248FSHSS	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	65 mm \| 1 1/2 - 2 1/2"	HEX key	30	ROOFLOC® head	FASCOAT®	Stainless Steel 304 / A2	0°	FASCO F58AC ROOFLOC-75
SCPC21248FSHSSP	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	65 mm \| 1 1/2 - 2 1/2"	HEX key	30	ROOFLOC® head	painted	Stainless Steel 304 / A2	0°	FASCO F58AC ROOFLOC-75
SCPC448FSHEGPW	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	65 mm \| 1 1/2 - 2 1/2"	HEX key	30	ROOFLOC® head	electro-galvanized	Standard steel	0°	FASCO F58AC ROOFLOC-75
SCPC448FSHFC	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	37 mm \| 1 1/2 - 1 1/2"	HEX key	30	ROOFLOC® head	FASCOAT®	Standard steel	0°	FASCO F58AC ROOFLOC-75
SCPC448FSHFCP	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	37 mm \| 1 1/2 - 1 1/2"	HEX key	30	ROOFLOC® head	FASCOAT® painted	Standard steel	0°	FASCO F58AC ROOFLOC-75
SCPC448FSHFCP-W	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	37 mm \| 1 1/2 - 1 1/2"	HEX key	30	ROOFLOC® head	FASCOAT® white painted	Standard steel	0°	FASCO F58AC ROOFLOC-75
SCPC448FSHSS	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	37 mm \| 1 1/2 - 1 1/2"	HEX key	30	ROOFLOC® head	FASCOAT®	Stainless Steel 304 / A2	0°	FASCO F58AC ROOFLOC-75
SCPC448FSHSSP	Steelthread	Plastic Sheet Strip	3.8 mm \| 0.148"	4.2 mm \| 0.165"	37 mm \| 1 1/2 - 1 1/2"	HEX key	30	ROOFLOC® head	painted	Stainless Steel 304 / A2	0°	FASCO F58AC ROOFLOC-75
