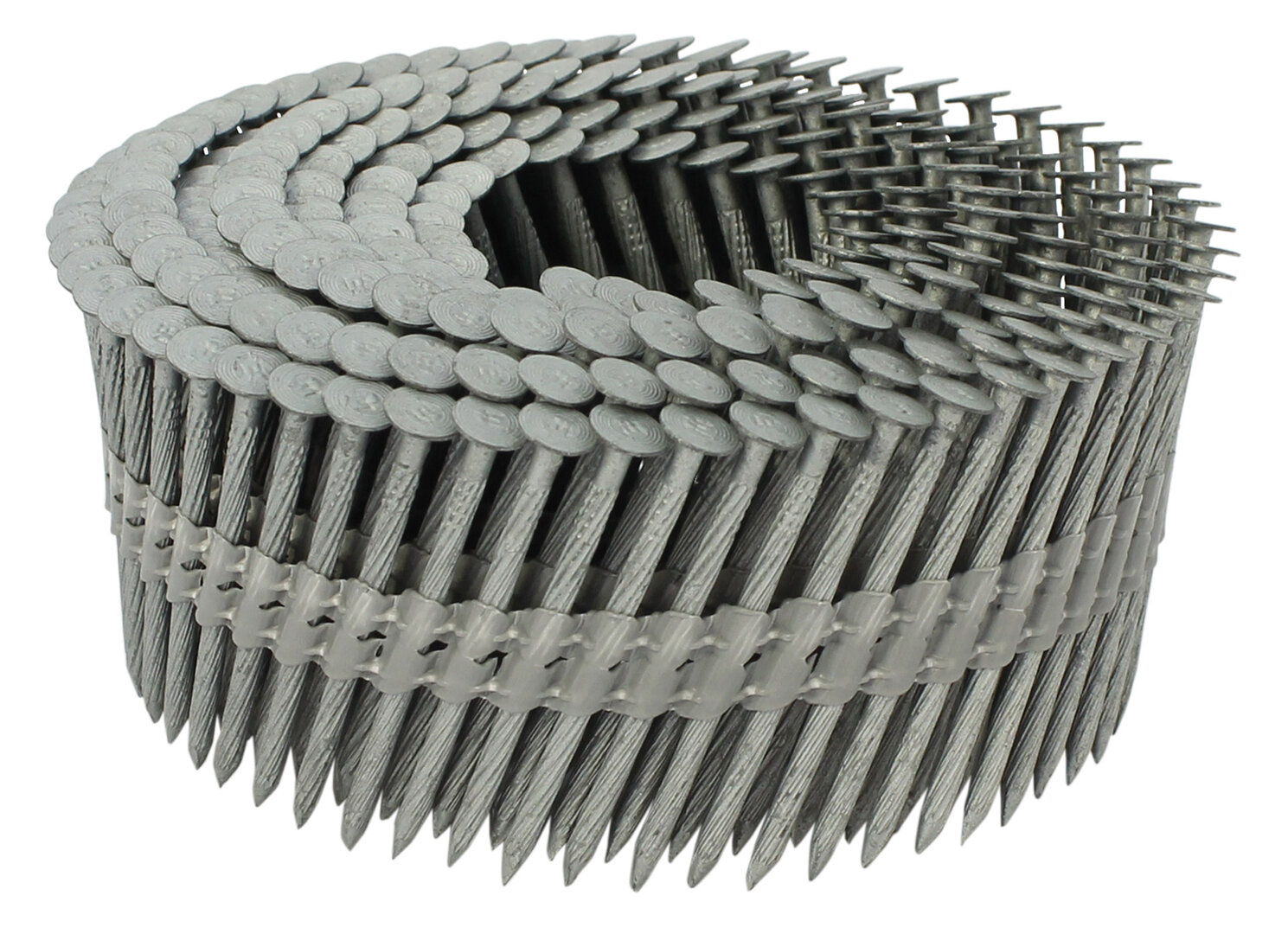

AGS-100-XXXXNA PLASTIC COIL PANELFAST® PINS

Product only available in: United States

The nominal 5/16 head of the PANELFAST® AGS-100 series pins are perfect for attaching plywood, oriented strand board (OBS), exterior gypsum sheathing and fiber cement boards to steel framing 68mil (14ga) and lighter. Designed for use with the Model 510 tool, the ballistic point and knurled shank combine to produce maximum holding strength. Like all ET&F® .100 pins, these fasteners have Aericote® 1000 coating, which provides 1000 hour salt spray corrosion protection. See IAPMO Report ER-848 for design values for attaching gypsum sheathing, DensGlass® Gold and Fiberock® to cold formed steel

  • See ICC Report ESR-2290 for design values for use with Hardie™ fiber cement siding.
  • Refer to IAPMO UES ER-335 for design values for wood based panels used as horizontal diaphragms and shear walls with wind loads.
  • Refer to IAPMO Report ESR-847 for design values for shear walls with seismic loading.
Request product

Product variants

Technical data

Head type
flat head
Collation type
Plastic Rope Coil
Diameter
2.6 mm | 0.102"
Length
38 - 63 mm | 1 1/2 - 2 1/2"
Coil shape
conical RBC
Collation degrees
20°
Finish
Aericote® 1000
Material
High Carbon Steel
Nailpoint
sharp pin point
Shank
knurled

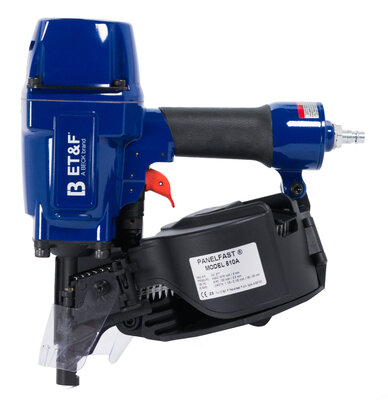

ET&F® tool
PANELFAST® MODEL 510A

Applications

icon
Drywall
icon
Steel framing

Standards and test marks

IAPMO ER-335

This evaluation report recognizes ET&F® pneumatic pins used to attach wood structural panel sheathing to cold formed steel framing of 20ga to 10ga thickness for horizontal diaphragm construction. Withdrawal and lateral strength design values are also provided for individual pins.

IAPMO ER-847

This evaluation report recognizes the use of ET&F® AGS series pins for use attaching wood panel sheathing to cold formed steel for use in shear wall assemblies used to resist seismic loads.

IAPMO ER-848

Gypsum sheathing, Dens-Glass® Gold gypsum board, or fiber-reinforced gypsum panels such as Fiberock® brand sheathing are attached to steel framing members using ET&F Panelfast® knurled AGS-100 series pneumatic fasteners.

ESR 2290

This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement HardiePlank® siding, manufactured by the James Hardie Building Products, to light gauge steel framing and to concrete masonry units.

AGS-100-XXXXNA PLASTIC COIL PANELFAST® PINS
  Head type Collation type Diameter Length Coil capacity Coil shape Collation degrees Finish Material Nailpoint Shank ET&F® tool
AGS1000250-NA flat head Plastic Rope Coil 2.5 mm | 0.098" 63 mm | 2 1/2" 250 conical RBC 21° Aericote® 1000 High Carbon Steel sharp pin point knurled PANELFAST® MODEL 510
AGS1000150-NA flat head Plastic Rope Coil 2.5 mm | 0.098" 38 mm | 1 1/2" 250 conical RBC 21° Aericote® 1000 High Carbon Steel sharp pin point knurled PANELFAST® MODEL 510
AGS1000200-NA flat head Plastic Rope Coil 2.5 mm | 0.098" 50 mm | 2" 250 conical RBC 21° Aericote® 1000 High Carbon Steel sharp pin point knurled PANELFAST® MODEL 510
