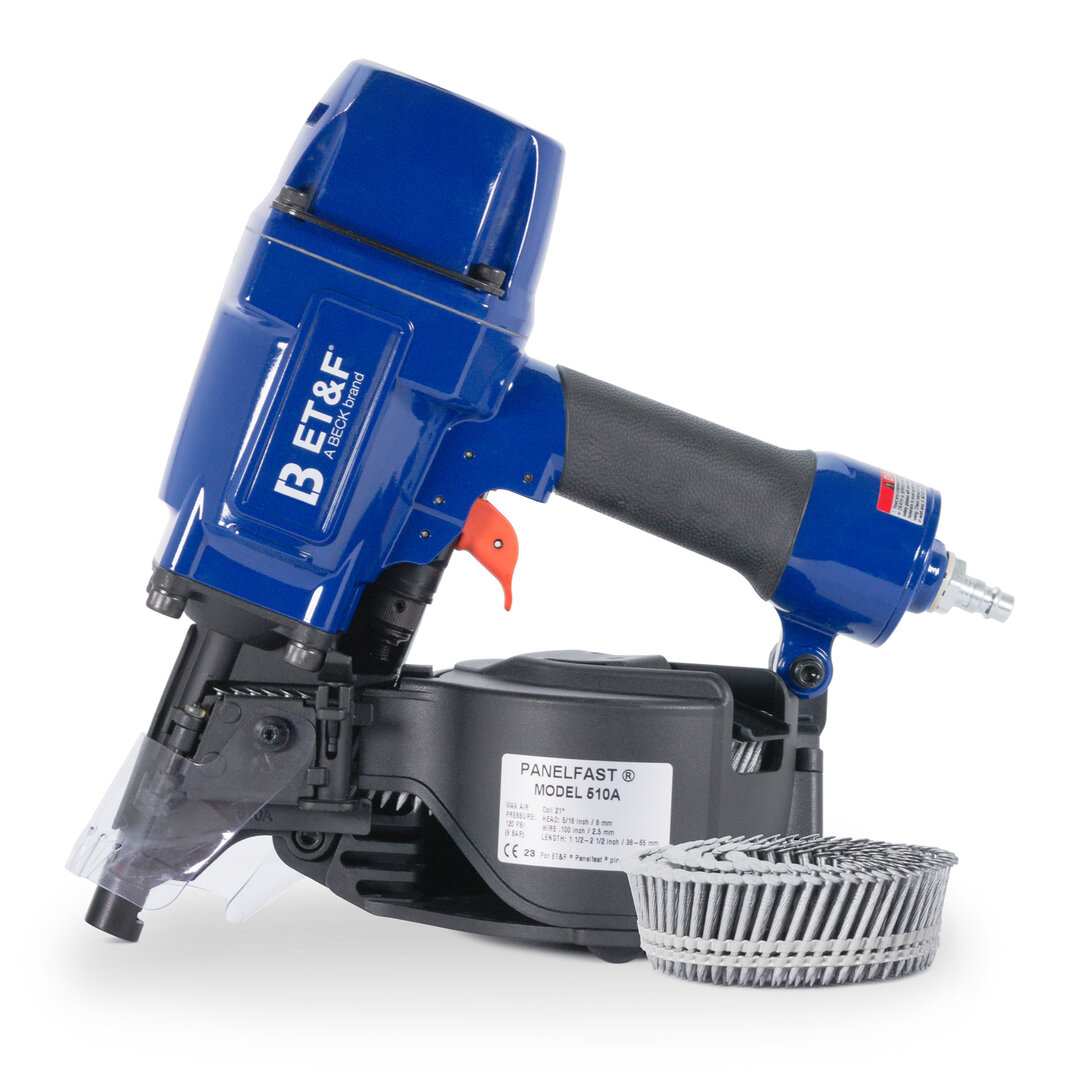

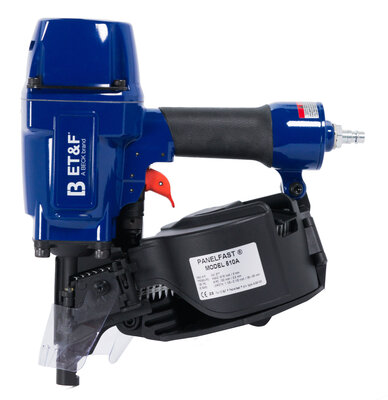

PANELFAST® MODEL 510A-System

The sequential fire Model 510A pneumatic tool has adjustable depth control that precisely places the pin at the desired depth in plywood. The exclusive design of the Model 510A tool drives the largest 0.1" headed pin on the market.

Request product

Technical data

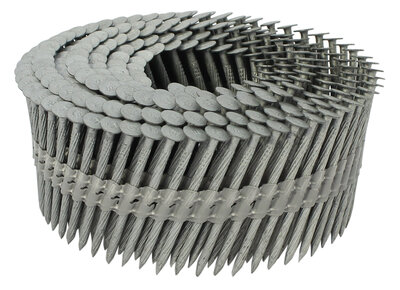

Nail

Head type
flat head
Collation type
Plastic Rope Coil
Diameter
2.54 mm | 0.1"
Length
38 - 63 mm | 1 1/2 - 2 1/2"
Collation degrees
20°
Finish
Aericote® 1000
Material
High Carbon Steel
Nailpoint
sharp pin point
Shank
knurled

Tool

Fastener type
Panelfast® AGS-100 Pins
Magazine capacity
250 pins
Nail length
38 - 65 mm | 1 1/2 - 2 1/2"
Height
267 mm | 10 1/2"
Width
114 mm | 4 1/2"
Length
279 mm | 11"
Weight
2.5 kg | 5.5 lbs
Pressure
6 - 8 bar | 90 - 120 psi
Actuation system
Full Sequential Actuation
Fasteners
coil

Applications

icon
Steel framing
icon
Drywall

Standards and test marks

IAPMO ES ER-335
ICC ES ESR-1777
ICC ES ESR-2290
