F60 CN15-PS90-H LIGNOLOC®

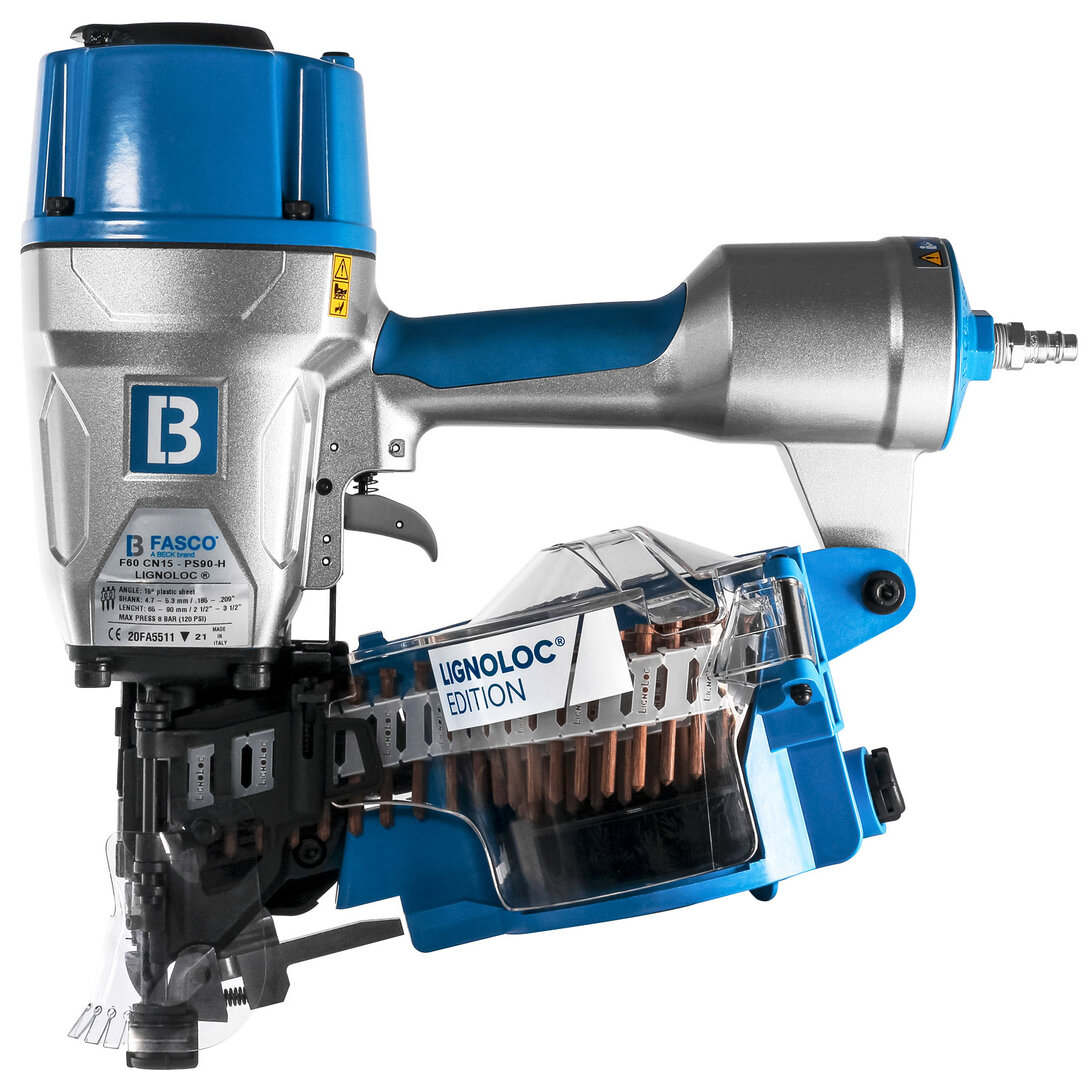

The coil nailer is specially designed for LIGNOLOC® wooden nails, with a tool-free depth of drive adjustment. Works nails with diameter up to 5.3 mm (.209“) and length up to 90 mm (3 1/2“) - High power, no predrilling necessary in wood with density up to 420 kg/m³.
Item number
11851.01
Nail length
65 - 90 mm | 2 9/16 - 3 1/2"
Weight
3.95 kg | 8.708 lbs
Actuation system
Full Sequential Actuation
Technical data
Item number
11851.01
Magazine capacity
100
Nail length
65 - 90 mm | 2 9/16 - 3 1/2"
Height
387 mm | 15.236"
Width
142 mm | 5.591"
Length
369 mm | 14.528"
Weight
3.95 kg | 8.708 lbs
Pressure
7 - 8 bar | 100 - 115 psi
Actuation system
Full Sequential Actuation
Loading
coil
Applications
Furniture & bedding
Manufactured housing
Pallets & crates
Downloads
Handout_F60 CN15-PS90 LIGNOLOC_2011_JPN_screen.pdf
pdf, 301.44 KB
Handout_F60 CN15-PS90 LIGNOLOC_2102_FR_screen.pdf
pdf, 219.54 KB
Handout_F60 CN15-PS90 LIGNOLOC_2102_IT_screen.pdf
pdf, 422.09 KB
Handout_F60 CN15-PS90 LIGNOLOC_2102_NL_screen.pdf
pdf, 215.74 KB
Handout_F60 CN15-PS90 LIGNOLOC_2102_US_screen.pdf
pdf, 423.99 KB
F60-CN15-PS90-H-LIGNOLOC-Exploded-Sheet.pdf
pdf, 474.12 KB
F60-CN15-PS90-H-LIGNOLOC-Technical-Data-Sheet.pdf
pdf, 1.61 MB
Handout_F60 CN15-PS90H LIGNOLOC_2305_ETA_DE_screen.pdf
pdf, 403.65 KB
Handout_F60 CN15-PS90H LIGNOLOC_2305_ETA_EN_screen.pdf
pdf, 349.83 KB
