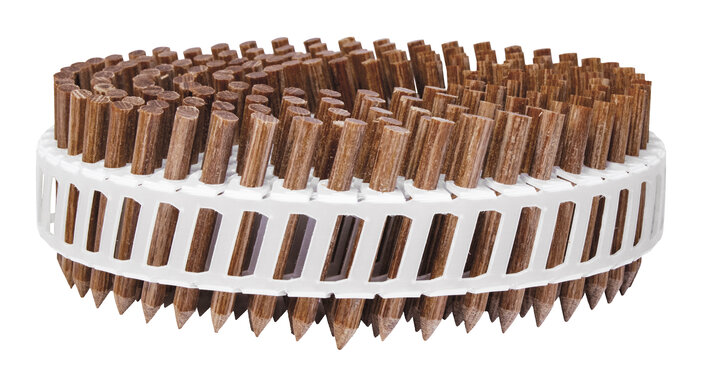

LIGNOLOC® wooden nails F60 4.7

Ecological wood processing down to the smallest detail? With LIGNOLOC® we rethought fastening and developed a new generation of fastening systems, being sustainable and efficient at the same time. LIGNOLOC® is the first ever pneumatically driven wooden nail for future-oriented use in industrial production and ecological timber construction (among many other applications).


Request product

Product variants

Technical data

Diameter
4.7 mm | 0.185"
Length
65 - 90 mm | 2 1/2 - 3 1/2"
Coil capacity
94 - 100
Collation type
15° coil LIGNOLOC®
Has head
No

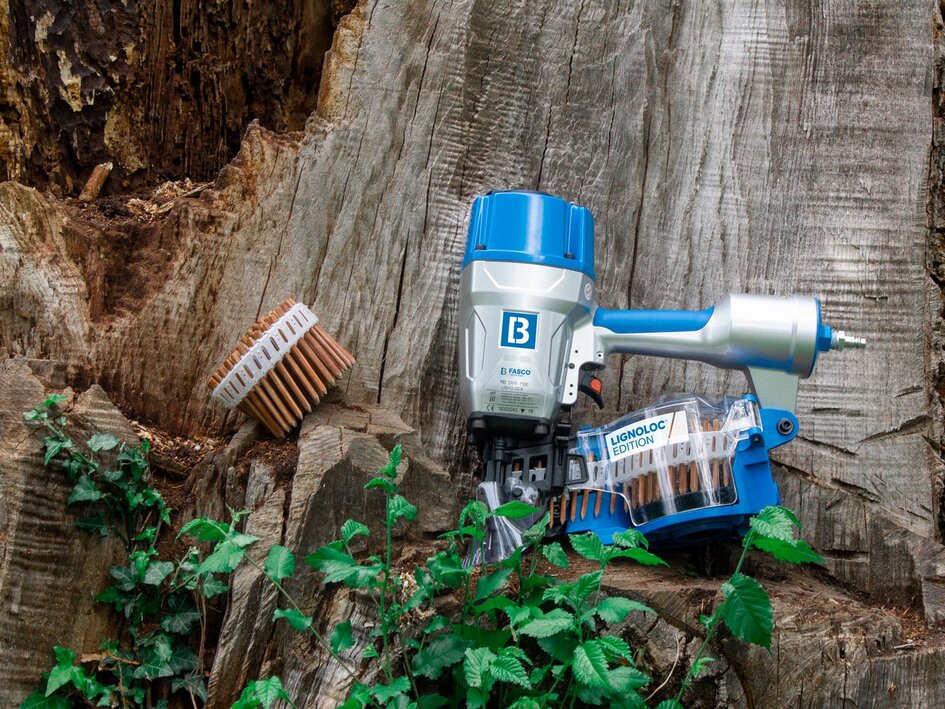

FASCO® tool
F60 CN15-PS90-H LIGNOLOC®

Applications

icon
Framing
icon
Manu­factured housing
icon
Millwork
icon
Furniture & bedding
icon
Structural timber construction
icon
Drywall
icon
Interior construction

Standards and test marks

National technical approval / general construction technique permit Z-9.1-899

On August 28, 2020, the German Institute for Construction Engineering (Deutsches Institut für Bautechnik – DIBt) issued the “National technical approval / general construction technique permit” for “Load-bearing timber connections using LIGNOLOC® wooden nails”. The approval enables the planning, design and execution of load-bearing connections in timber frame construction. Planks and panels made of solid timber, wood-based materials or gypsum fiber can be attached to wood building materials using LIGNOLOC® wooden nails. In addition, connections can be made with LIGNOLOC® to produce bracing and load-bearing wall diaphragms.

ETA-23/0041

Our LIGNOLOC® wooden nails without head can be supplied with an European Technical Assessment (ETA) and are officially approved for use in load-bearing connections in all EU member states.

LIGNOLOC® wooden nails F60 4.7
  Diameter Length Coil capacity Collation type Has head FASCO® tool
CN47AGWO.2 4.7 mm | 0.185" 65 mm | 2 1/2 - 2 1/2" 94 - 94 15° coil LIGNOLOC® common.no F60 CN15-PS90-H LIGNOLOC®
CN47AGWO.3 4.7 mm | 0.185" 75 mm | 2 1/2 - 3" 94 - 100 15° coil LIGNOLOC® common.no F60 CN15-PS90-H LIGNOLOC®
CN47AGWO.4 4.7 mm | 0.185" 90 mm | 2 1/2 - 3 1/2" 94 - 100 15° coil LIGNOLOC® common.no F60 CN15-PS90-H LIGNOLOC®
COMBO-WO.3 4.7 mm | 0.185" 65 - 90 mm | 2 1/2 - 3 1/2" 94 - 100 15° coil LIGNOLOC® common.no F60 CN15-PS90-H LIGNOLOC®
