Fasteners /// SCRAIL® Nail Screw Fasteners /// Coil SCRAIL® Nail Screw Fasteners

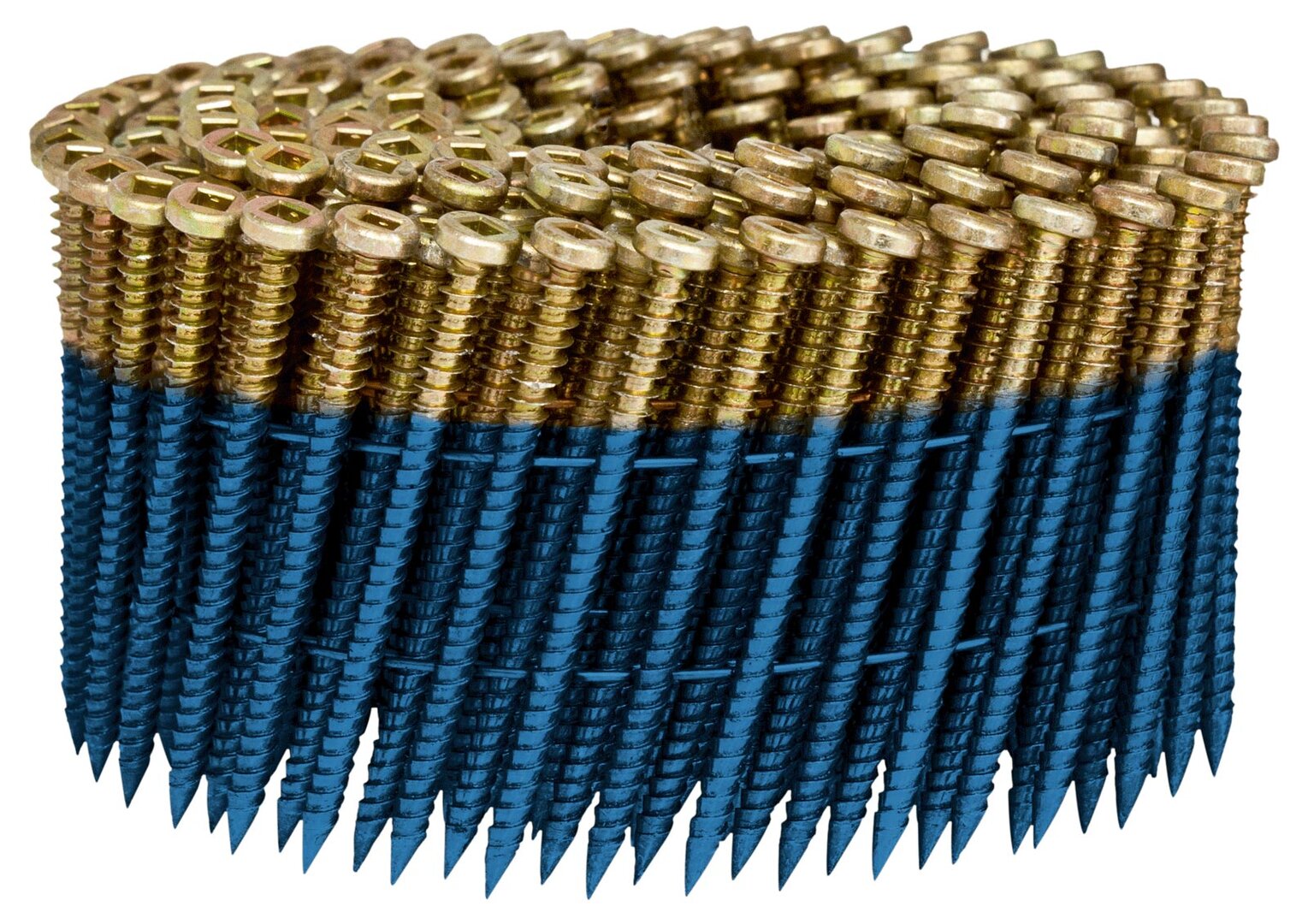

SCRAIL® SUBLOC® PRO WIRE COIL

Aggressive thread design combined with BECK's innovative Diamond Coating perfect for squeak-free subfloors. The powerful FASCO® F60 CN15W-PS90 SCR tool ensures efficient and safe processing. If needed, SCRAIL® SUBLOC® PRO are also available as Plastic Sheet Coil.

Collation type

Wire Coil

Inner diameter

2.8 mm | 0.11"

Outer diameter

3.2 mm | 0.13"

Length

45 - 75 mm | 1 3/4 - 3"

Thread type

SUBLOC® PRO Thread

Request product

Stock items America

Stock items Europe

Thread type

SUBLOC® PRO Thread

Collation type

Wire Coil

Inner diameter

2.8 mm | 0.11"

Outer diameter

3.2 mm | 0.13"

Length

45 - 75 mm | 1 3/4 - 3"

Drive type

TX, SQ

Coil capacity

200 - 300

Head type

Pan Head

Finish

Electro-Galvanized, DIAMOND COATING®, FASCOAT®

Material

Standard Steel

Collation degrees

15°

FASCO® tool

F58A CN-70 SUBLOC PRO SCRAIL, F58AC CN-80 SUBLOC PRO SCRAIL, F60 CN15W-PS90 SCR FS, F60 CN15W-PS90 SCR IM

Flooring & subflooring

Manufactured housing

Pallets & crates

Structural timber construction

EN 14592

Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.

IAPMO ER-344

SCRAIL® SUBLOC® PRO fasteners recognized in this report were evaluated for use as wood fasteners. The dimensional and structural performance properties of the SCRAIL® SUBLOC® PRO fasteners were evaluated for compliance with the following codes: 2018, 2015, 2012, and 2009 International Building Code® (IBC) | 2018, 2015, 2012, and 2009 International Residential Code® (IRC) | 2020 Florida Building Code, Building | 2020 Florida Building Code, Residential

Download

ASTM F1667

We manufacture our products in accordance with the requirements of ASTM F1667. If you need detailed information, we are happy to help.

Handout_F60 CN15W-PS90 SCR FS_2411_EN_screen.pdf

pdf, 415.82 KB

Handout_F60 CN15W-PS90 SCR_2410_US_screen.pdf

pdf, 408.12 KB

F60 CN15W-PS90 SCR FS

15°, 3 1/2", Coil Nailer & SCRAILer

New
F60 CN15W-PS90 SCR IM

15°, 3 1/2", Coil Nailer & SCRAILer

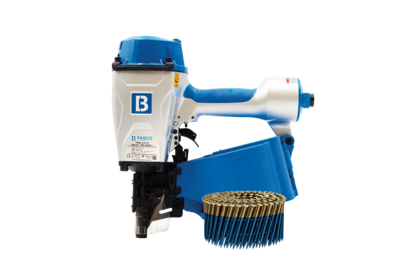

SCRAIL® SUBLOC® PRO SYSTEM | F58A CN-70

15°, 2 1/2", Coil SCRAILer

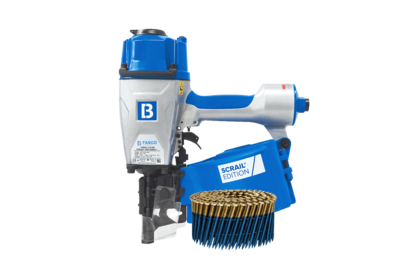

SCRAIL® SUBLOC® PRO SYSTEM | F58AC CN-80

15°, 3", Coil SCRAILer

SCRAIL® SUBLOC® PRO WIRE COIL

	Thread type	Collation type	Inner diameter	Outer diameter	Length	Drive type	Coil capacity	Head type	Finish	Material	Collation degrees	FASCO® tool
SCWC713FSEGSFP	SUBLOC® PRO Thread	Wire Coil	2.8 mm \| 0.11"	3.2 mm \| 0.13"	57 mm \| 2 1/4"	SQ2	200	Pan Head	Electro-Galvanized, DIAMOND COATING®	Hardened Steel	15°	F60 CN15W-PS90 SCR

	Thread type	Collation type	Inner diameter	Outer diameter	Length	Drive type	Coil capacity	Head type	Finish	Material	Collation degrees	FASCO® tool
RBW28SC.538	SUBLOC® PRO Thread	Wire Coil	2.8 mm \| 0.11"	3.2 mm \| 0.13"	63 mm \| 2 1/2"	TX15	200	Pan Head	Electro-Galvanized, DIAMOND COATING®	Hardened Steel	15°	F58A CN-70 SUBLOC PRO SCRAIL, F58AC CN-80 SUBLOC PRO SCRAIL, F60 CN15W-PS90 SCR FS, F60 CN15W-PS90 SCR IM
RBW28SC.539	SUBLOC® PRO Thread	Wire Coil	2.8 mm \| 0.11"	3.2 mm \| 0.13"	75 mm \| 3"	TX15	200	Pan Head	Electro-Galvanized, DIAMOND COATING®	Hardened Steel	15°	F58A CN-70 SUBLOC PRO SCRAIL, F58AC CN-80 SUBLOC PRO SCRAIL, F60 CN15W-PS90 SCR FS, F60 CN15W-PS90 SCR IM
RBW28SC.478	SUBLOC® PRO Thread	Wire Coil	2.8 mm \| 0.11"	3.2 mm \| 0.13"	57 mm \| 2 1/4"	TX15	200	Pan Head	Electro-Galvanized, DIAMOND COATING®	Hardened Steel	15°	F60 CN15W-PS90 SCR
