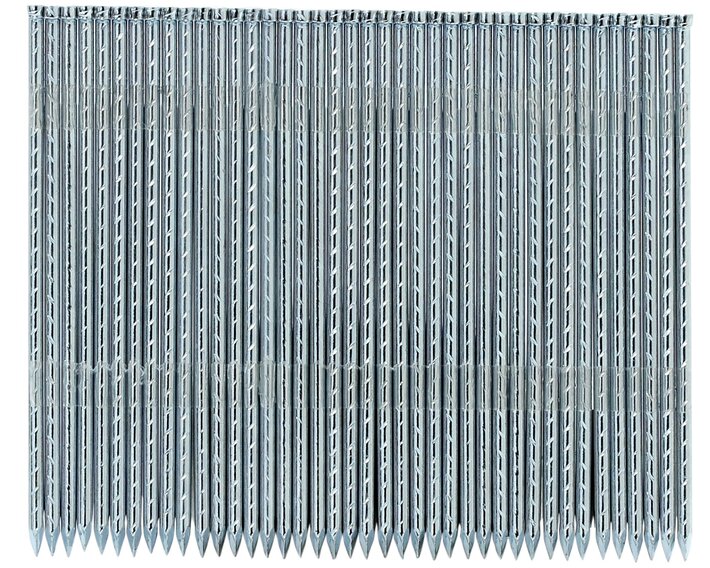

TRIMFAST® PINS AST-100

The ET&F® heavy duty TRIMFAST® AST-100 series pins are designed specially for the Model 210 and Model 210T tool for applications requiring fasteners of larger diameter or longer length than can be handled by the Model 110A system. Applications include attaching thicker fiber cement trim boards, wood furring, waterproofing membranes, and drywall track to concrete masonry units, poured concrete and steel framing 68mil (14ga) and lighter. These pins have a t-nail style head (0.250" x 0.100") and a 0.100" diameter shank. These hardened pins are finished with an electrozinc plating and are collated 50 pins per strip.

Pin type
T-Nails
Length
25 - 75 mm | 1 - 3"
Wire diameter
2.54 mm | 0.1"
FASCO® tool
TRIMFAST® HEAVY DUTY MODEL 210, TRIMFAST® HEAVY DUTY MODEL 210TA
Request product

Product variants

Technical data

Pin type
T-Nails
Length
25 - 75 mm | 1 - 3"
Wire diameter
2.54 mm | 0.1"
Head size
6 mm | 1/4"
Strip angle
Finish
electro-galvanized
Material
Hardened Steel
FASCO® tool
TRIMFAST® HEAVY DUTY MODEL 210, TRIMFAST® HEAVY DUTY MODEL 210TA

Applications

icon
Siding
icon
Finish & trim
icon
Steel framing
icon
Drywall
TRIMFAST® PINS AST-100
  Pin type Length Wire diameter Head size Strip angle Finish Material FASCO® tool
AST-100-0200G T-Nails 50 mm | 2" 2.54 mm | 0.1" 6 mm | 1/4" electro-galvanized Hardened Steel TRIMFAST® HEAVY DUTY MODEL 210, TRIMFAST® HEAVY DUTY MODEL 210TA
AST-100-0100G T-Nails 25 mm | 1" 2.54 mm | 0.1" 6 mm | 1/4" electro-galvanized Hardened Steel TRIMFAST® HEAVY DUTY MODEL 210, TRIMFAST® HEAVY DUTY MODEL 210TA
AST-100-0125G T-Nails 32 mm | 1 1/4" 2.54 mm | 0.1" 6 mm | 1/4" electro-galvanized Hardened Steel TRIMFAST® HEAVY DUTY MODEL 210, TRIMFAST® HEAVY DUTY MODEL 210TA
AST-100-0150G T-Nails 38 mm | 1 1/2" 2.54 mm | 0.1" 6 mm | 1/4" electro-galvanized Hardened Steel TRIMFAST® MODEL 210, TRIMFAST® HEAVY DUTY MODEL 210TA
AST-100-0250G T-Nails 63 mm | 2 1/2" 2.54 mm | 0.1" 6 mm | 1/4" electro-galvanized Hardened Steel TRIMFAST® MODEL 210, TRIMFAST® HEAVY DUTY MODEL 210TA
AST-100-0300G T-Nails 75 mm | 3" 2.54 mm | 0.1" 6 mm | 1/4" electro-galvanized Hardened Steel TRIMFAST® MODEL 210, TRIMFAST® HEAVY DUTY MODEL 210TA
