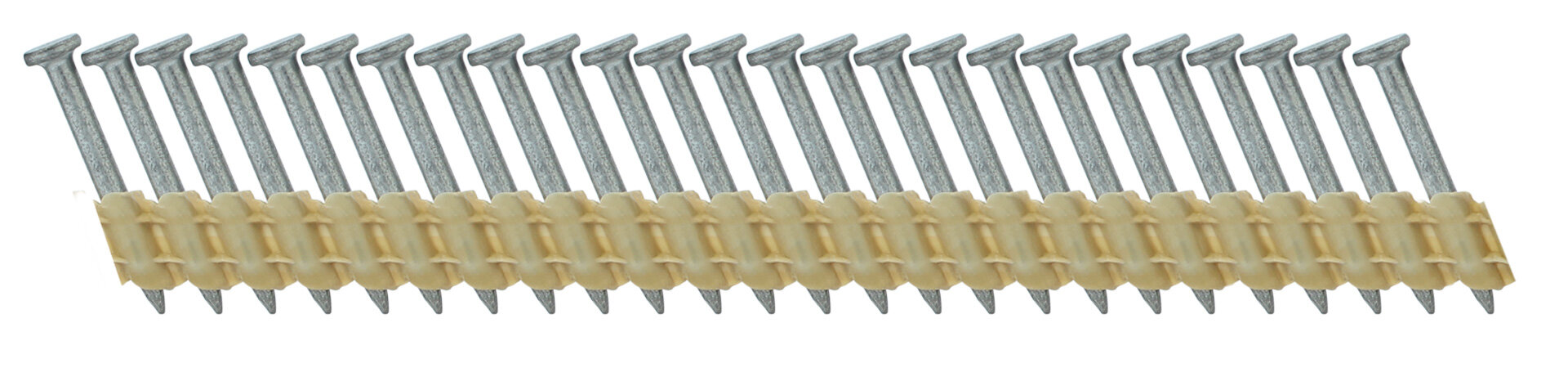

STRIP COLLATED PINS ASM-144
The smooth shank ASM-144 series pins are commonly used to fasten to concrete or masonry substrates. Hardwood flooring installers use these pins to attach plywood. See ICC Reports ESR-2290 for design values for attaching James Hardie fiber cement siding to masonry.
Collation type
Plastic Strip
Collation degrees
20°
Length
32 - 57 mm | 1 1/4 - 2 1/4"
Diameter
3.6 mm | 0.14"
ET&F® tool
Aerico® 90
Technical data
Head type
flat head
Collation type
Plastic Strip
Diameter
3.6 mm | 0.14"
Length
32 - 57 mm | 1 1/4 - 2 1/4"
Strip capacity
25
Collation degrees
20°
Finish
mechanical galvanized
Material
High Carbon Steel
Nailpoint
sharp pin point
Shank
smooth
ET&F® tool
Aerico® 90
Applications
Manufactured housing
Standards and test marks
ESR 2290
This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement HardiePlank® siding, manufactured by the James Hardie Building Products, to light gauge steel framing and to concrete masonry units.
