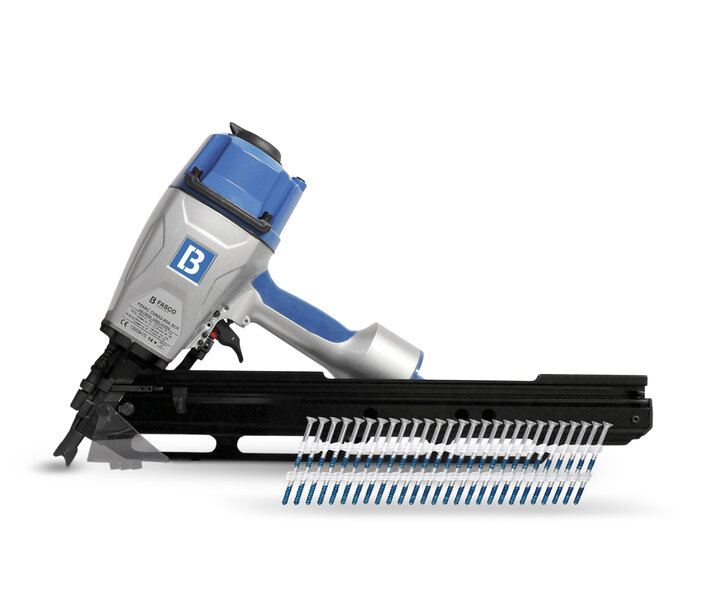

SCRAIL® SPLITLESS 33° Plastic Strip system
The SCRAIL® SPLITLESS system has been specially developed for the rapid installation of high-end decks and similar applications such as footpaths, boardwalks, etc. The specially designed blunt tip of the SCRAIL® greatly reduces wood splitting in both the deck layer and the substructure.
-
For various requirements of corrosion protection, SCRAIL® SPLITLESS are available in stainless steel or FasCoat®.
-
For maximum holding power, SCRAIL® SPLITLESS always come with our patented DIAMOND COATING.
-
The FASCO® F70G gas cordless strip nailer enables cordless decking.
Product variants
Technical data
Scrail
Thread type
Fine Thread
Collation type
Plastic Strip
Inner diameter
2.8 - 2.9 mm | 0.113 - 0.116"
Outer diameter
3.2 - 3.3 mm | 0.126 - 0.131"
Length
48 - 75 mm | 1 7/8 - 3"
Strip capacity
25
Head type
Countersunk head
Finish
FASCOAT®
Material
Standard steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4
Collation degrees
33°
FASCO® tool
F58A CHN33-90B SCRAIL
Tool
Item number
11675.01
Magazine capacity
50
Nail length
48 - 90 mm | 1 7/8 - 3 1/2"
Scrail length
48 - 75 mm | 1 7/8 - 3"
Height
350 mm | 13.78"
Width
145 mm | 5.71"
Length
505 mm | 19.9"
Weight
3.52 kg | 7.75 lbs
Pressure
5 - 8 bar | 70 - 120 psi
Actuation system
Contact Actuation, Full Sequential Actuation
Loading
top loading
Applications
Decking
Siding
