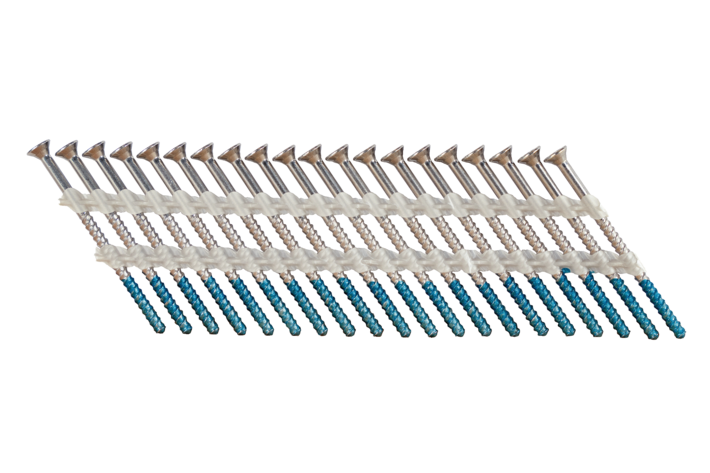

SCRAIL® SPLITLESS PLASTIC STRIP

Our SCRAIL® SPLITLESS 33° nail screw fastener was specifically developed for demanding decking projects where maximum precision and flexibility are required. With its specially designed blunt anti-split tip, it effectively minimizes wood fiber splitting, ensuring particularly clean processing – even for delicate wood types. Thanks to our patented BECK DIAMOND COATING, the nail screw fastener offers superior holding power by reducing friction during driving while maximizing the contact area with the wood. SCRAIL® SPLITLESS 33° is ideal for use in hard-to-reach areas and is particularly suited for boardwalks, promenades, and complex deck constructions. This nail screw fastener is perfectly matched for use with the FASCO® F58A CHN33-90B SCR by BECK and guarantees smooth and highly efficient installation.

  • Fine thread SCRAIL® nail screw fastener with blunt anti-split tip
  • BECK DIAMOND COATING for easier driving and maximum holding power
  • Specifically designed for smooth processing in various wood types, such as softwoods like larch or Douglas fir
  • Stainless steel A2 & A4 with FasCoat® corrosion protection
Request product

Product variants

Technical data

Thread type
Fine Thread
Collation type
Plastic Strip
Inner diameter
2.8 - 2.9 mm | 0.11 - 0.11"
Outer diameter
3.2 - 3.3 mm | 0.13 - 0.13"
Length
48 - 75 mm | 1 7/8 - 3"
Drive type
TX15
Strip capacity
20 - 25
Head type
Countersunk Head
Finish
FASCOAT®, Black Oxidated, DIAMOND COATING®
Material
Standard Steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4
Collation degrees
33°
FASCO® tool
F58A CHN33-90B SCR LOW PROFILE

Applications

icon
Decking
icon
Siding

Standards and test marks

EN 14592

Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.

ASTM F1667

We manufacture our products in accordance with the requirements of ASTM F1667. If you need detailed information, we are happy to help.

SCRAIL® SPLITLESS PLASTIC STRIP
  Thread type Collation type Inner diameter Outer diameter Length Drive type Strip capacity Head type Finish Material Collation degrees FASCO® tool
RN29SC.681 Fine Thread Plastic Strip 2.8 mm | 0.11" 3.2 mm | 0.13" 57 mm | 2 1/4" TX15 20 Countersunk Head DIAMOND COATING® Stainless Steel 304 / A2 33° F58A CHN33-90B SCR LOW PROFILE
RN29SC.682 Fine Thread Plastic Strip 2.9 mm | 0.11" 3.3 mm | 0.13" 65 mm | 2 9/16" TX15 20 Countersunk Head DIAMOND COATING® Stainless Steel 304 / A2 33° F58A CHN33-90B SCR LOW PROFILE
RN29SC.683 Fine Thread Plastic Strip 2.9 mm | 0.11" 3.3 mm | 0.13" 75 mm | 3" TX15 20 Countersunk Head DIAMOND COATING® Stainless Steel 304 / A2 33° F58A CHN33-90B SCR LOW PROFILE
RN29SC.714 Fine Thread Plastic Strip 2.8 mm | 0.11" 3.2 mm | 0.13" 48 mm | 1 7/8" TX15 20 Countersunk Head DIAMOND COATING® Stainless Steel 304 / A2 33° F58A CHN33-90B SCR LOW PROFILE
RN29SC.724 Fine Thread Plastic Strip 2.8 mm | 0.11" 3.2 mm | 0.13" 57 mm | 2 1/4" TX15 20 Countersunk Head Black Oxidated Stainless Steel 304 / A2 33° F58A CHN33-90B SCR LOW PROFILE
RN29SC.745 Fine Thread Plastic Strip 2.9 mm | 0.11" 3.3 mm | 0.13" 65 mm | 2 9/16" TX15 20 Countersunk Head Black Oxidated Stainless Steel 304 / A2 33° F58A CHN33-90B SCR LOW PROFILE
