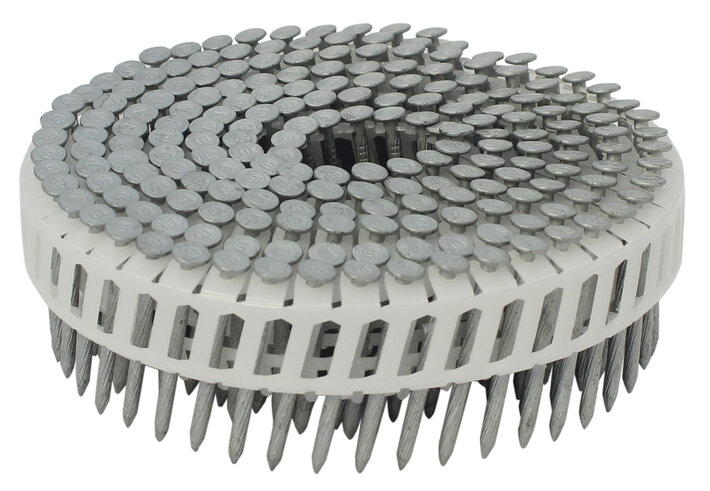

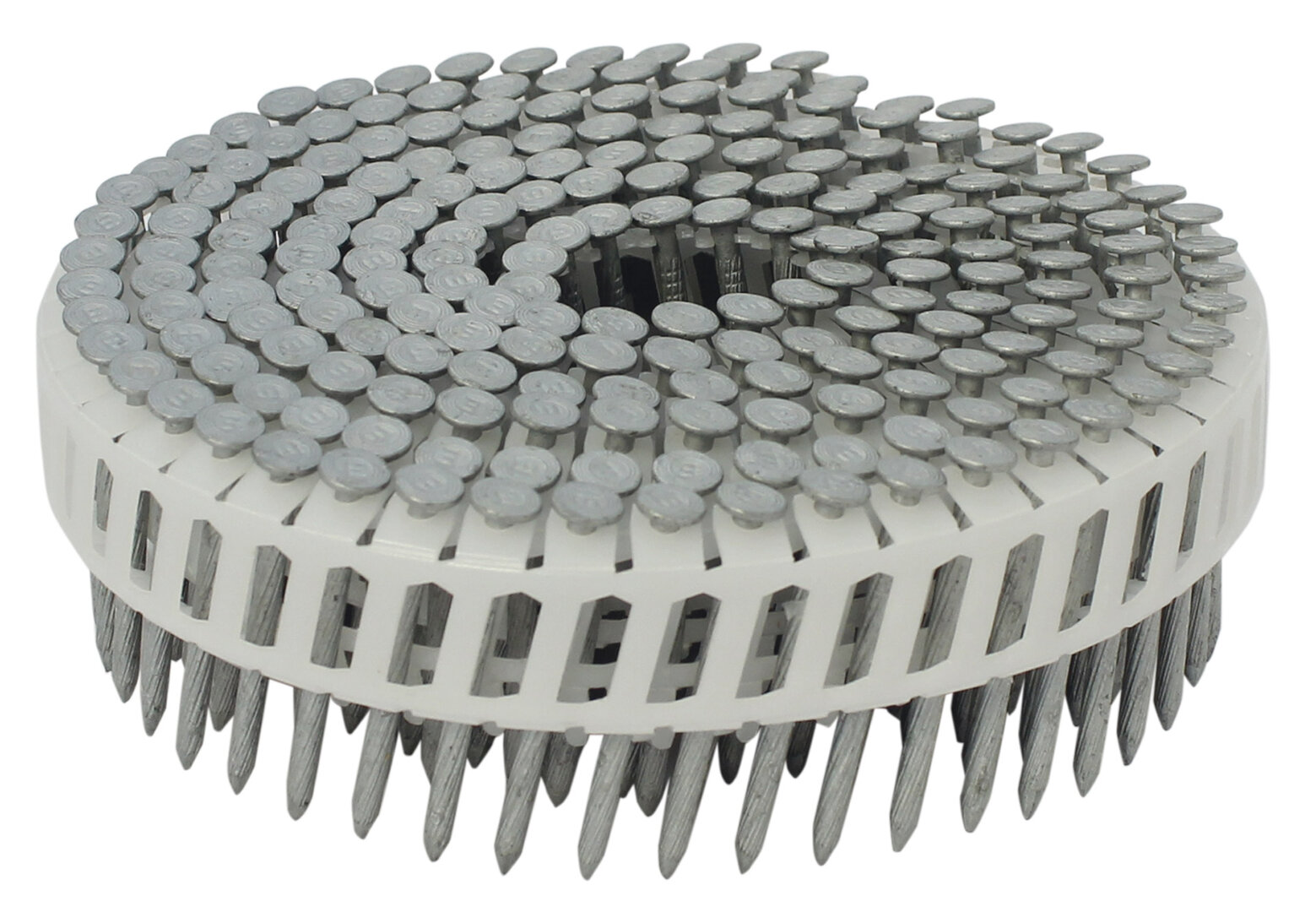

ASK-100-0100H PLASTIC SHEET PINS

STEEL FRAMING PINS ASK-100-XXXXH series pins are designed specially for attaching selected steel-to-steel applications of up to two layers of 54mil. (16ga.). A special knurl pattern improves performance in steel-to-steel connections. These pins have an electro galvanized finish.

Collation type
Plastic Sheet Coil
Collation degrees
15°
Length
25 mm | 1"
Diameter
2.6 mm | 0.102"
Request product

Technical data

Head type
flat head
Collation type
Plastic Sheet Coil
Diameter
2.6 mm | 0.102"
Length
25 mm | 1"
Coil capacity
200
Coil shape
flat
Collation degrees
15°
Finish
electro-galvanized
Material
High Carbon Steel
Nailpoint
sharp pin point
Shank
knurled
ET&F® tool
ROCKFAST® MODEL 620

Applications

icon
Steel framing

Suitable Products
