AKN-100-XXXXHA PLASTIC SHEET STEEL FRAMING PINS

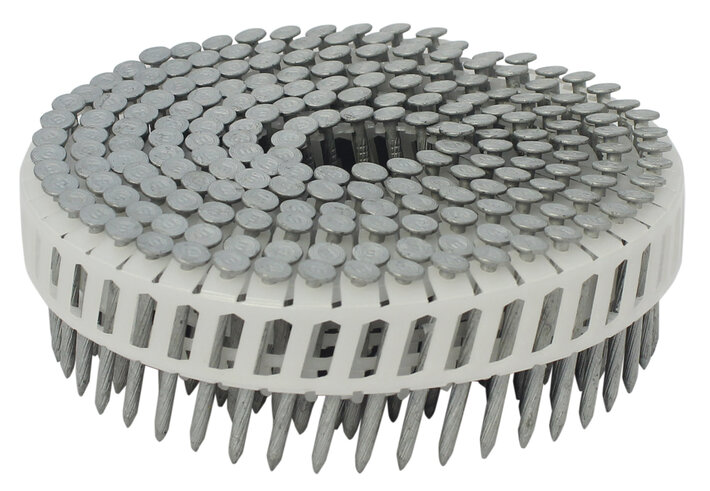

The STEEL FRAMING PINS AKN-100-XXXXHA series pins are designed specially for attaching plywood, oriented strand board (OSB) and fiber cement siding and soffit to cold formed steel from 97 mil (12 GA.) to 27 mil (22 GA.). These pins are finished with Aericote® 1000 coating which provides ten times the corrosion protection of electroplated zinc. When driven, the fastener separates completely from the sheet plastic collation leaving a clean fastening, especially important when face nailing siding.

  • Refer to IAPMO UES ER-335 for design values for horizontal diaphragm and shear wall construction
  • See ICC Reports ESR-2290 and ESR-1844 for design values for use face nailing James Hardie fiber cement siding.
  • See ICC Report ESR-2273 for design values for use fastening James Hardie fiber cement soffit.
Request product

Product variants

Technical data

Head type
flat head
Collation type
Plastic Sheet Coil
Diameter
2.6 mm | 0.1"
Length
38 - 63 mm | 1 1/2 - 2 1/2"
Coil shape
flat
Collation degrees
15°
Finish
Aericote® 1000
Material
High Carbon Steel
Nailpoint
sharp pin point
Shank
knurled
ET&F® tool

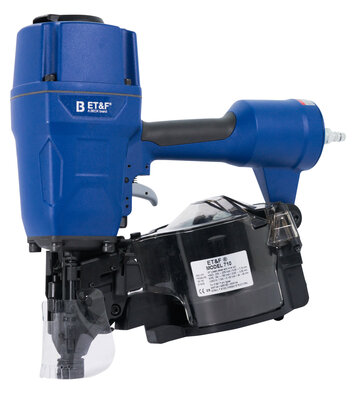

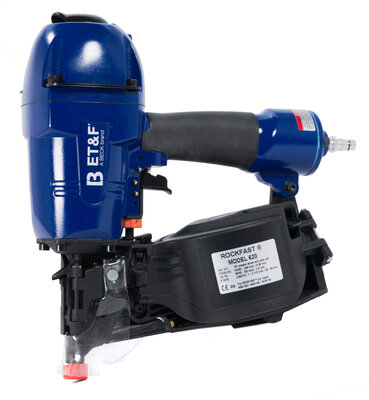

ET&F Modell 710, ROCKFAST® MODEL 620

Applications

icon
Drywall
icon
Steel framing

Standards and test marks

IAPMO ER-335

This evaluation report recognizes ET&F® pneumatic pins used to attach wood structural panel sheathing to cold formed steel framing of 20ga to 10ga thickness for horizontal diaphragm construction. Withdrawal and lateral strength design values are also provided for individual pins.

ESR 1844

This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement HardiePanel® siding, manufactured by the James Hardie Building Products, to light gauge steel framing.

ESR 2273

This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement Hardiesoffit® Vented Plus™ manufactured by James Hardie Building Products to light gauge steel framing.

ESR 2290

This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement HardiePlank® siding, manufactured by the James Hardie Building Products, to light gauge steel framing and to concrete masonry units.

AKN-100-XXXXHA PLASTIC SHEET STEEL FRAMING PINS
  Head type Collation type Diameter Length Coil capacity Coil shape Collation degrees Finish Material Nailpoint Shank ET&F® tool
AKN1000200-HA flat head Plastic Sheet Coil 2.6 mm | 0.1" 50 mm | 2" 200 flat 15° Aericote® 1000 High Carbon Steel sharp pin point knurled ROCKFAST® MODEL 610
AKN1000250-HA flat head Plastic Sheet Coil 2.6 mm | 0.1" 63 mm | 2 1/2" 200 flat 15° Aericote® 1000 High Carbon Steel sharp pin point knurled ROCKFAST® MODEL 610
