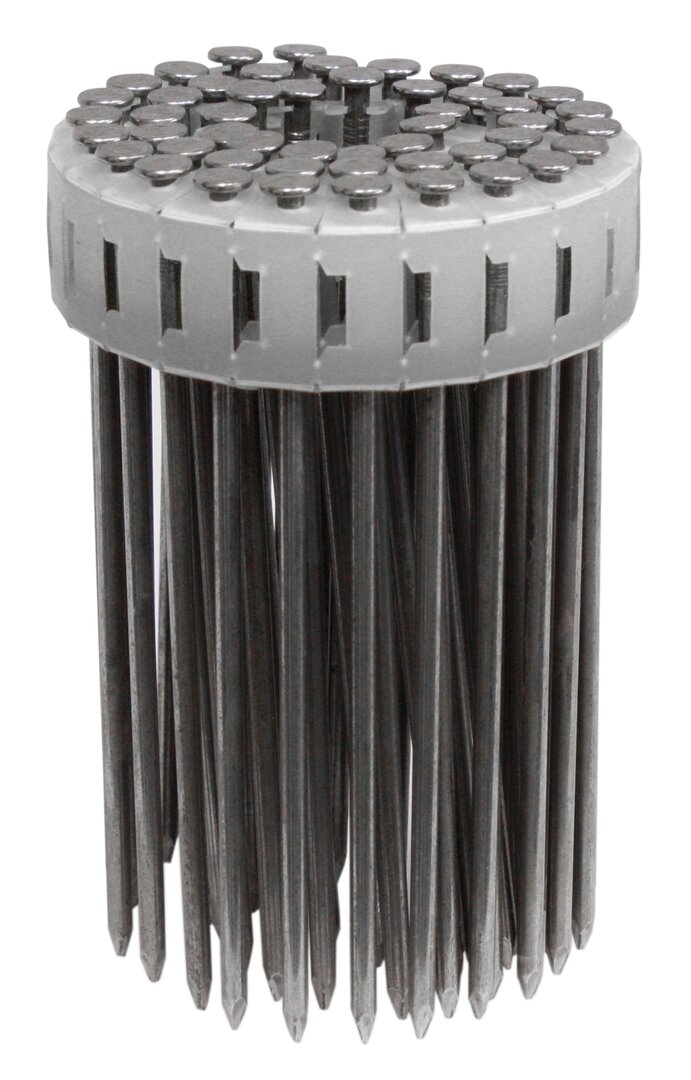

Multi-Impact Plastic Sheet Coil Nails (CNV)
Ideal for residue-free processing of nails in structural timber construction. Compatible with the MAX HN100 tool.
Collation type
Plastic Sheet Coil
Collation degrees
0°
Length
40 - 130 mm | 1 9/16 - 5 1/8"
Diameter
3.4 - 4.2 mm | 0.13 - 0.16"
Product variants
Technical data
Head type
anker head, countersunk head, domed head, flat head
Collation type
Plastic Sheet Coil
Diameter
3.4 - 4.2 mm | 0.13 - 0.16"
Length
40 - 130 mm | 1 9/16 - 5 1/8"
Coil capacity
50
Coil shape
flat
Collation degrees
0°
Finish
bright, electro-galvanized, hot dip galvanized, black oxidated
Material
Standard Steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4, High Carbon Steel, Aluminum
Nailpoint
diamond point
Shank
ring, screw, smooth
Applications
Manufactured housing
Pallets & crates
Standards and test marks
EN 14592
Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.
ASTM F1667
We manufacture our products in accordance with the requirements of ASTM F1667. If you need detailed information, we are happy to help.
ESR 1539
Many of our fasteners are approved for use in the U.S. market according to ICC ESR 1539.
