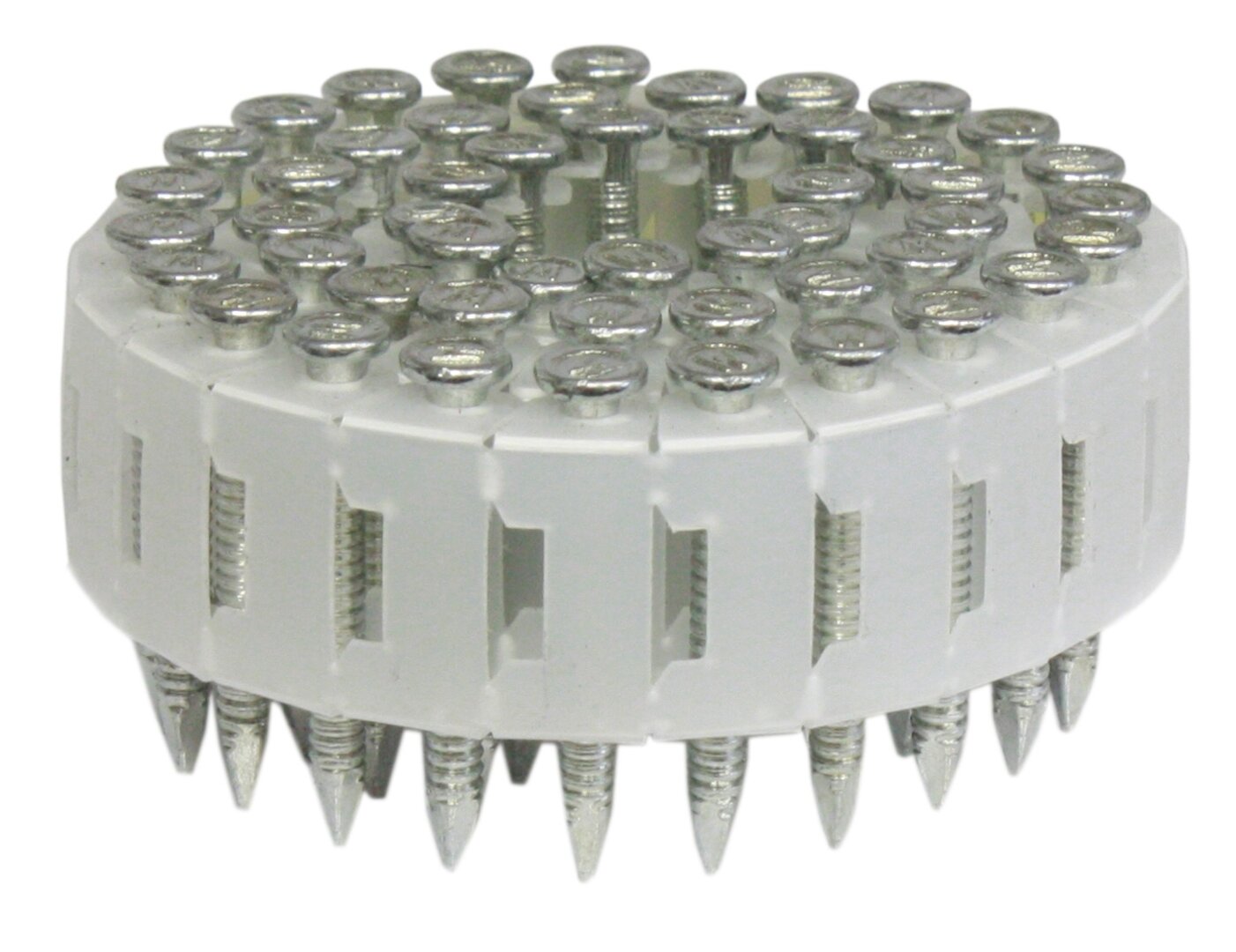

Multi-Impact Plastic Sheet Anker Nails (CNV)

The collation enables residue-free processing of anchor nails for fastening metal shoes and pre-drilled panels, for timber joints in structural timber construction. Compatible with the MAX CNV 300 tool.

Collation type
Plastic Sheet Coil
Collation degrees
Length
36.5 - 75 mm | 1 1/2 - 3"
Diameter
4 mm | 0.157"
Request product

Technical data

Head type
anker head
Collation type
Plastic Sheet Coil
Diameter
4 mm | 0.157"
Length
36.5 - 75 mm | 1 1/2 - 3"
Coil capacity
50
Coil shape
flat
Collation degrees
Finish
electro-galvanized, hot dip galvanized
Material
Standard Steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4
Nailpoint
diamond point
Shank
ring

Applications

icon
Framing
icon
Sheathing

Standards and test marks

ASTM1667

We manufacture our products in accordance with the requirements of ASTM 1667. If you need detailed information, we are happy to help.

CE14592

Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.
