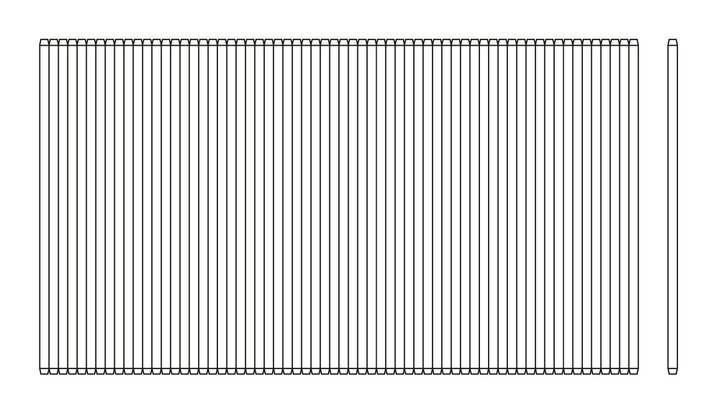

GA Pins (18 GA.)

Ideal for furniture construction, panels and facings, as almost invisible after processing. Compatible with the Omer RI.28 pinner and the Bostitch BTCN110 battery pinner.

Pin type
Pins
Length
8 - 60 mm | 5/16 - 2 3/8"
Wire diameter
1.2 mm | 0.047"
Request product

Product variants

Technical data

Pin type
Pins
Length
8 - 60 mm | 5/16 - 2 3/8"
Wire diameter
1.2 mm | 0.047"
Gauge
18
Flattening
1.2 mm x 1 mm | 0.048" x 0.038"
Strip angle
Finish
electro-galvanized
Material
Standard Steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4
Similar to
BeA S100

Applications

icon
Millwork
icon
Furniture & bedding
icon
Manu­factured housing
icon
Finish & trim
icon
Interior construction
GA Pins (18 GA.)
  Pin type Length Wire diameter Gauge Flattening Strip angle Finish Material Similar to
EB812P Pins 12 mm | 5/16 - 1/2" 1.2 mm | 0.047" 18 1.2 mm x 1 mm | 0.048" x 0.038" electro-galvanized Standard Steel BeA S100
EB815P Pins 16 mm | 5/16 - 5/8" 1.2 mm | 0.047" 18 1.2 mm x 1 mm | 0.048" x 0.038" electro-galvanized Standard Steel BeA S100
EB820P Pins 19 mm | 5/16 - 3/4" 1.2 mm | 0.047" 18 1.2 mm x 1 mm | 0.048" x 0.038" electro-galvanized Standard Steel BeA S100
EB825P Pins 25 mm | 5/16 - 1" 1.2 mm | 0.047" 18 1.2 mm x 1 mm | 0.048" x 0.038" electro-galvanized Standard Steel BeA S100
