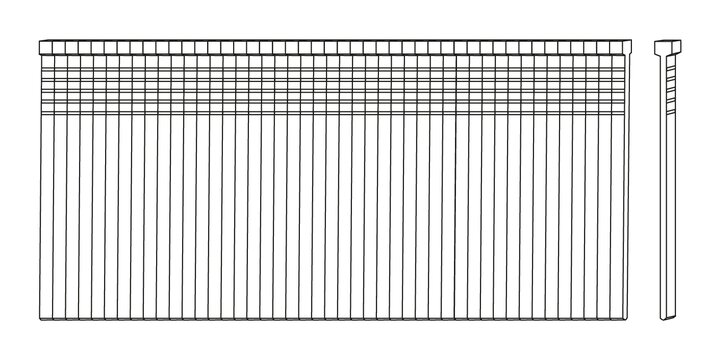

FN BRADS (16 GG.)

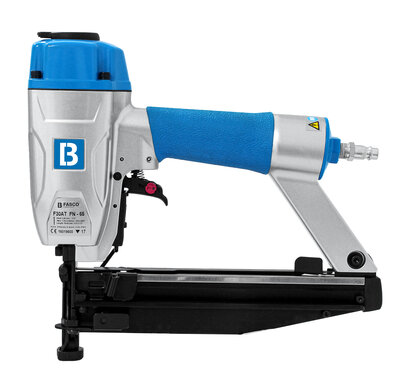

Universally applicable, such as for trim work, upholstered furniture and kitchen cabinets. FN Brads (16 GA.) can be processed safely and efficiently with the FASCO® F30AT FN65 bradder.
Pin type
Brads / Finish Nails
Length
10 - 70 mm | 3/8 - 2 3/4"
Wire diameter
1.53 mm | 0.06"
Product variants
Technical data
Pin type
Brads / Finish Nails
Length
10 - 70 mm | 3/8 - 2 3/4"
Wire diameter
1.53 mm | 0.06"
Gauge
16
Flattening
1.6 mm x 1.4 mm | 0.063" x 0.055"
Head size
1.4 mm x 2.8 mm | 0.055" x 0.11"
FASCO® tool

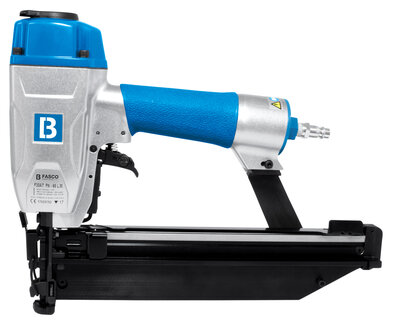

F30AT FN-65 FS, F30AT FN-65 LONG MAG
Applications
Finish & trim
Furniture & bedding
Manufactured housing
Millwork
Suitable Products
FN BRADS (16 GG.)
| Pin type | Length | Wire diameter | Gauge | Flattening | Head size | Strip angle | Finish | Material | FASCO® tool | |
|---|---|---|---|---|---|---|---|---|---|---|
| EP619B | Flat Brads | 19 mm | 3/4" | 1.53 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30 AT FN-65 |
| EP625B | Flat Brads | 25 mm | 1" | 1.53 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30 AT FN-65 |
| EP628B | Flat Brads | 28 mm | 1 1/8" | 1.53 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30 AT FN-65 |
| EP632B | Flat Brads | 32 mm | 1 1/4" | 1.53 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30 AT FN-65 |
| EP638B | Flat Brads | 38 mm | 1 1/2" | 1.53 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30 AT FN-65 |
| EP638BSS | Flat Brads | 38 mm | 1 1/2" | 1.53 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | Stainless Steel 304 / A2 | F30 AT FN-65 | |
| EP645B | Flat Brads | 44 mm | 1 3/4" | 1.53 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30 AT FN-65 |
| EP650B | Flat Brads | 50 mm | 2" | 1.53 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30 AT FN-65 |
| EP650BSS | Flat Brads | 50 mm | 2" | 1.53 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | Stainless Steel 304 / A2 | F30 AT FN-65 | |
| EP657B | Flat Brads | 57 mm | 2 1/4" | 1.53 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30 AT FN-65 |
| EP665B | Flat Brads | 63 mm | 2 1/2" | 1.53 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30 AT FN-65 |
| EP665BSS | Flat Brads | 63 mm | 2 1/2" | 1.53 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | Stainless Steel 304 / A2 | F30 AT FN-65 | |
| EP670B | Flat Brads | 10 - 70 mm | 3/8 - 2 3/4" | 1.53 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30 AT FN-65 |
| Pin type | Length | Wire diameter | Gauge | Flattening | Head size | Strip angle | Finish | Material | FASCO® tool | |
|---|---|---|---|---|---|---|---|---|---|---|
| BRADS157.1821 | Brads / Finish Nails | 10 - 70 mm | 3/8 - 2 3/4" | 1.52 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30AT FN-65 FS, F30AT FN-65 LONG MAG |
| BRADS157.1822 | Brads / Finish Nails | 10 - 70 mm | 3/8 - 2 3/4" | 1.52 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30AT FN-65 FS, F30AT FN-65 LONG MAG |
| BRADS157.1823 | Brads / Finish Nails | 10 - 70 mm | 3/8 - 2 3/4" | 1.52 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30AT FN-65 FS, F30AT FN-65 LONG MAG |
| BRADS157.1824 | Brads / Finish Nails | 10 - 70 mm | 3/8 - 2 3/4" | 1.52 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30AT FN-65 FS, F30AT FN-65 LONG MAG |
| BRADS157.1825 | Brads / Finish Nails | 10 - 70 mm | 3/8 - 2 3/4" | 1.52 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30AT FN-65 FS, F30AT FN-65 LONG MAG |
| BRADS157.1826 | Brads / Finish Nails | 10 - 70 mm | 3/8 - 2 3/4" | 1.52 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30AT FN-65 FS, F30AT FN-65 LONG MAG |
| BRADS157.1828 | Brads / Finish Nails | 10 - 70 mm | 3/8 - 2 3/4" | 1.52 mm | 0.06" | 16 | 1.6 mm x 1.4 mm | 0.063" x 0.055" | 1.4 mm x 2.8 mm | 0.055" x 0.11" | 0° | electro-galvanized | Standard Steel | F30AT FN-65 FS, F30AT FN-65 LONG MAG |
