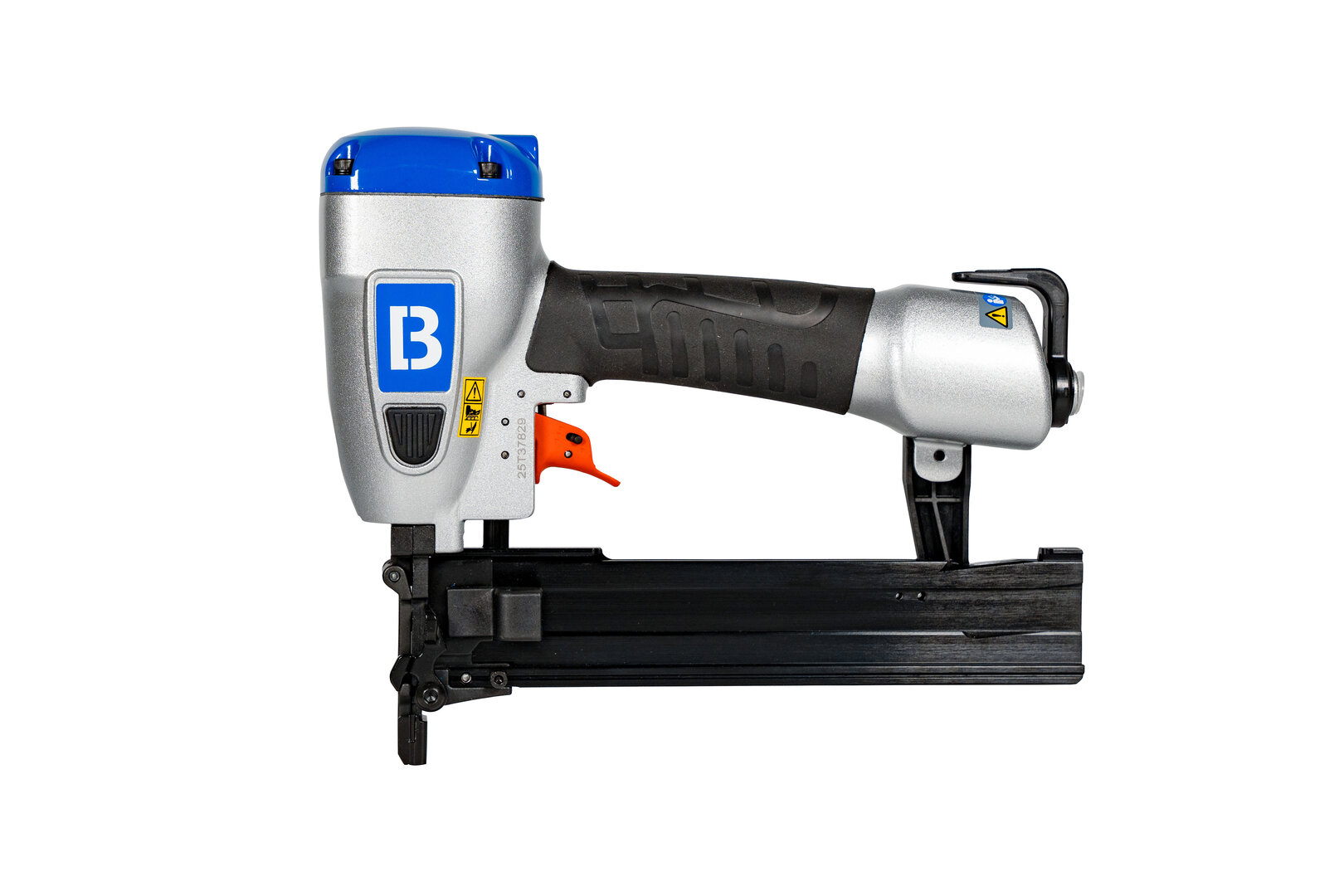

F3 90-40
The F3 90-40 is a fast and powerful pneumatic stapler designed for industrial use. It has been engineered for maximum efficiency and long service life, delivering strong performance and intuitive handling. The top-loading magazine allows for quick reloading, while the precise staple guidance minimizes jamming. With its ergonomic design, optional contact actuation, and precise depth adjustment, the tool is ideally suited for professional furniture and frame assembly, joinery, as well as panel and wooden packaging production.
-
Designed for industrial use – powerful and fast
-
Easy handling and ergonomic design
-
Top-loading magazine for quick reloading
-
Optional contact or single-shot actuation
-
Precise depth adjustment
Technical data
Item number
11954
Similar to
ATRO 90, BEA 90, DUOFAST 18, HAUBOLD 6000, HOLZHER C, PREBENA E, PREBENA ES1, SENCO L, SENCO N4450
Magazine capacity
158
Nail length
12 - 40 mm | 1/2 - 1 9/16"
Height
237.2 mm | 9.34"
Width
72 mm | 2.84"
Length
294.4 mm | 11.59"
Weight
1.59 kg | 3.5 lbs
Pressure
5 - 8 bar | 70 - 120 psi
Actuation system
Full Sequential Actuation, Contact Actuation
Loading
top loading
Applications
Finish & trim
Furniture & bedding
Millwork
