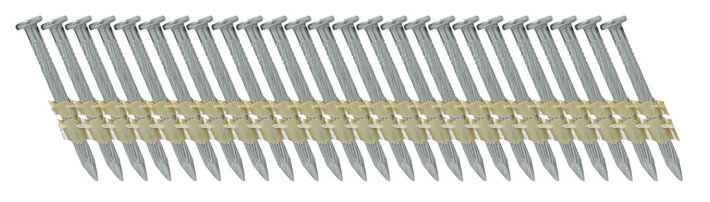

STRIP COLLATED PINS AKN-144

The knurled shank AKN-144 pins are supplied collated for use with the Aerico® 90 tool. These pins are typically used to fasten plywood. Custom sizes and packaging is available for special requirements. Contact us for more information about lengths not shown below.

Collation type
Plastic Strip
Collation degrees
20°
Length
32 - 57 mm | 1 1/4 - 2 1/4"
Diameter
3.6 mm | 0.14"

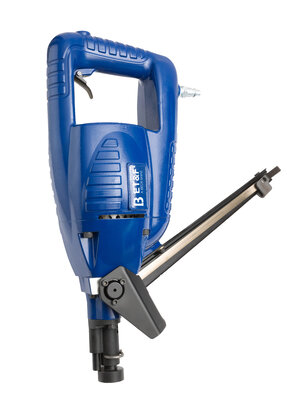

ET&F® tool
Aerico® 90
Request product

Technical data

Head type
flat head
Collation type
Plastic Strip
Diameter
3.6 mm | 0.14"
Length
32 - 57 mm | 1 1/4 - 2 1/4"
Strip capacity
25
Collation degrees
20°
Finish
mechanical galvanized
Material
High Carbon Steel
Nailpoint
sharp pin point
Shank
knurled
ET&F® tool
Aerico® 90

Applications

icon
Steel framing

Standards and test marks

IAPMO UES ER-335

This evaluation report recognizes ET&F pneumatic pins used to attach wood structural panel sheathing to cold formed steel framing of 20ga to 10ga thickness for horizontal diaphragm construction. Withdrawal and lateral strength design values are also provided for individual pins.
