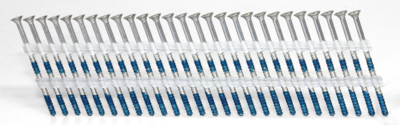

SCRAIL® SPLITLESS 20° Plastic Strip system

The SCRAIL® SPLITLESS system has been specially developed for the rapid installation of high-end decks and similar applications such as footpaths, boardwalks, etc. The specially designed blunt tip of the SCRAIL® greatly reduces wood splitting in both the deck layer and the substructure.

  • For various requirements of corrosion protection, SCRAIL® SPLITLESS are available in stainless steel or FasCoat®.
  • For maximum holding power,  SCRAIL® SPLITLESS always come with our patented DIAMOND COATING.
  • The FASCO® F70G gas cordless strip nailer enables cordless decking.
Request product

Product variants

Technical data

Scrail

Thread type
Fine Thread
Collation type
Plastic Strip
Inner diameter
2.8 - 2.9 mm | 0.113 - 0.116"
Outer diameter
3.2 - 3.3 mm | 0.126 - 0.131"
Length
53 - 75 mm | 2 1/8 - 3"
Drive type
Torx®
Strip capacity
25
Head type
Countersunk head
Finish
FASCOAT®
Material
Standard steel, Stainless A2, Stainless A4
Collation degrees
20°

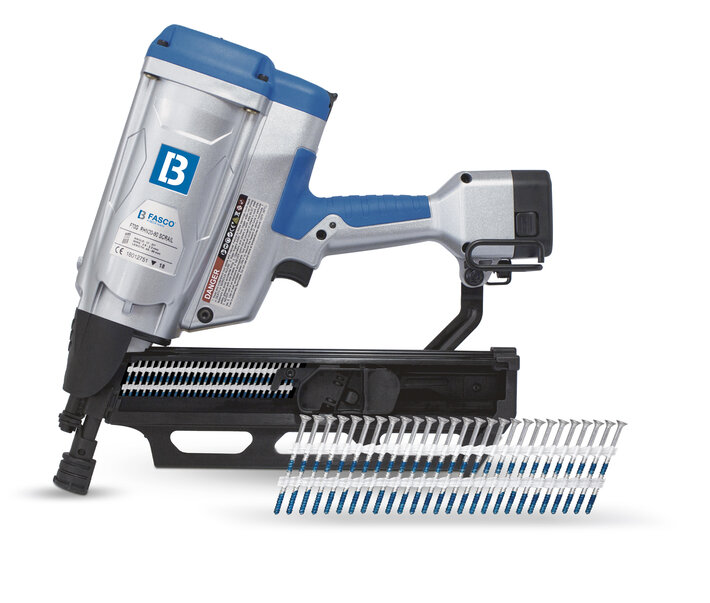

FASCO® tool
F70G RHN20-90 SCRAIL®

Tool

Item number
11679
Fastener type
20° & 17° Plastic Strip SCRAIL® (fine and coarse threads)
Magazine capacity
32
Fastener length
50 - 75 mm | 2 - 3"
Height
375 mm | 14.76"
Width
108 mm | 4.25"
Length
366 mm | 14.41"
Weight
3.53 kg | 7.77 lbs
Actuation system
single shot
Fasteners
rear loading

Applications

icon
Decking
icon
Siding

Standards and test marks

CE14592

Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.

SCRAIL® SPLITLESS 20° Plastic Strip system
  Thread type Collation type Inner diameter Outer diameter Length Drive type Strip capacity Head type Finish Material Collation degrees FASCO® tool Item number Fastener type Magazine capacity Fastener length Height Width Length Weight Actuation system Fasteners
RN29SC.674 Fine Thread Plastic Strip 2.8 mm | 0.113" 3.2 mm | 0.126" 53 mm | 2 1/8" Torx® 25 Countersunk head FASCOAT® Standard steel 20° F70G RHN20-90 SCRAIL® 11679 20° & 17° Plastic Strip SCRAIL® (fine and coarse threads) 32 50 - 75 mm | 2 - 3" 375 mm | 14.76" 108 mm | 4.25" 366 mm | 14.41" 3.53 kg | 7.77 lbs single shot rear loading
RN29SC.675 Fine Thread Plastic Strip 2.8 mm | 0.113" 3.2 mm | 0.126" 57 mm | 2 1/4" Torx® 25 Countersunk head Stainless A2 20° F70G RHN20-90 SCRAIL® 11679 20° & 17° Plastic Strip SCRAIL® (fine and coarse threads) 32 50 - 75 mm | 2 - 3" 375 mm | 14.76" 108 mm | 4.25" 366 mm | 14.41" 3.53 kg | 7.77 lbs single shot rear loading
RN29SC.676 Fine Thread Plastic Strip 2.9 mm | 0.114" 3.3 mm | 0.13" 65 mm | 2 9/16" Torx® 25 Countersunk head Stainless A2 20° F70G RHN20-90 SCRAIL® 11679 20° & 17° Plastic Strip SCRAIL® (fine and coarse threads) 32 50 - 75 mm | 2 - 3" 375 mm | 14.76" 108 mm | 4.25" 366 mm | 14.41" 3.53 kg | 7.77 lbs single shot rear loading
RN29SC.677 Fine Thread Plastic Strip 2.9 mm | 0.114" 3.3 mm | 0.13" 75 mm | 3" Torx® 25 Countersunk head Stainless A2 20° F70G RHN20-90 SCRAIL® 11679 20° & 17° Plastic Strip SCRAIL® (fine and coarse threads) 32 50 - 75 mm | 2 - 3" 375 mm | 14.76" 108 mm | 4.25" 366 mm | 14.41" 3.53 kg | 7.77 lbs single shot rear loading
