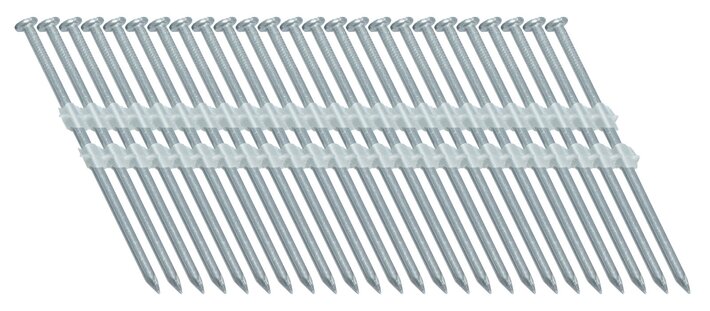

Plastic Strip Nails

Many collation angles available, excellently suited for applications in structural timber construction. BECK has several suitable FASCO® tools for processing, which convince with their robustness and reliability all along the line.

Collation type
Plastic Strip
Collation degrees
17°, 20°, 28°, 33°
Length
25 - 100 mm | 1 - 4"
Diameter
2.2 - 3.4 mm | 0.086 - 0.135"

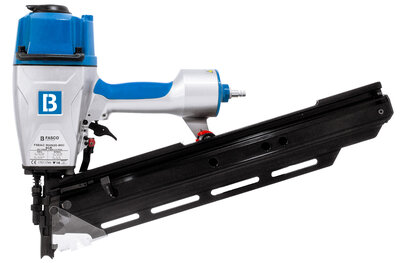

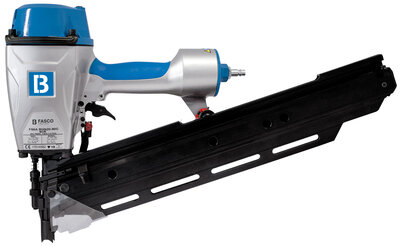

FASCO® tool
FASCO F58AC RHN20-90B SCR, F58AC CHN33-90B SCR, F58A RHN20-90C SCRAIL, F58A CHN33-90B SCRAIL
Request product

Technical data

Head type
casing head, countersunk head, domed head, flat head, flat duplex head
Collation type
Plastic Strip
Diameter
2.2 - 3.4 mm | 0.086 - 0.135"
Length
25 - 100 mm | 1 - 4"
Strip capacity
20 - 50
Collation degrees
17°, 20°, 28°, 33°
Finish
bright, electro-galvanized, hot dip galvanized, painted
Material
Standard Steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4, High Carbon Steel, Aluminum, Copper
Nailpoint
chisel point, diamond point, no point
Shank
barbed, knurled, ring, screw, smooth, twisted-spiral
FASCO® tool
FASCO F58AC RHN20-90B SCR, F58AC CHN33-90B SCR, F58A RHN20-90C SCRAIL, F58A CHN33-90B SCRAIL

Applications

icon
Decking
icon
Framing
icon
Sheathing
icon
Furniture & bedding
icon
Manu­factured housing
icon
Millwork
icon
Pallets & crates

Standards and test marks

ASTM1667

We manufacture our products in accordance with the requirements of ASTM 1667. If you need detailed information, we are happy to help.

CE14592

Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.

ESR1539

Many of our fasteners are approved for use in the U.S. market according to ESR 1539.

Plastic Strip Nails
  Head type Collation type Diameter Length Strip capacity Collation degrees Finish Material Nailpoint Shank FASCO® tool
FP102120E flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 75 mm | 1 - 3" 20 - 50 20° bright Standard Steel diamond point smooth FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP102120HDE3M flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 75 mm | 1 - 3" 20 - 50 20° hot dip galvanized Standard Steel diamond point smooth FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP102120RHDE3M flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 75 mm | 1 - 3" 20 - 50 20° hot dip galvanized Standard Steel diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP102120RSSE3M flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 75 mm | 1 - 3" 20 - 50 20° bright, electro-galvanized, hot dip galvanized, painted Stainless Steel 304 / A2 diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP102120SE flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 75 mm | 1 - 3" 20 - 50 20° bright Standard Steel diamond point screw FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP102120SHDE flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 75 mm | 1 - 3" 20 - 50 20° hot dip galvanized Standard Steel diamond point screw FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP102120SSE3M flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 75 mm | 1 - 3" 20 - 50 20° bright, electro-galvanized, hot dip galvanized, painted Stainless Steel 304 / A2 diamond point smooth FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP102131RSSE flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 75 mm | 1 - 3" 20 - 50 33° bright, electro-galvanized, hot dip galvanized, painted Stainless Steel 304 / A2 diamond point ring F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR
FP103120E flat head Plastic Strip 2.2 - 3.3 mm | 0.086 - 0.131" 25 - 75 mm | 1 - 3" 20 - 50 20° bright Standard Steel diamond point smooth FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP122120HDE3M flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 82 mm | 1 - 3 1/4" 20 - 50 20° hot dip galvanized Standard Steel diamond point smooth FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP122120RHDE3M flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 82 mm | 1 - 3 1/4" 20 - 50 20° hot dip galvanized Standard Steel diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP122120RSSE3M flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 82 mm | 1 - 3 1/4" 20 - 50 20° bright, electro-galvanized, hot dip galvanized, painted Stainless Steel 304 / A2 diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP122120SHDE flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 82 mm | 1 - 3 1/4" 20 - 50 20° hot dip galvanized Standard Steel diamond point screw FASCO F58AC RHN20-90B SCR
FP122120SSE3M flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 82 mm | 1 - 3 1/4" 20 - 50 20° bright, electro-galvanized, hot dip galvanized, painted Stainless Steel 304 / A2 diamond point smooth FASCO F58AC RHN20-90B SCR
FP122120SSSE flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 82 mm | 1 - 3 1/4" 20 - 50 20° bright, electro-galvanized, hot dip galvanized, painted Stainless Steel 304 / A2 diamond point screw FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP122131RSSE flat head Plastic Strip 2.2 - 3.1 mm | 0.086 - 0.121" 25 - 82 mm | 1 - 3 1/4" 20 - 50 33° bright, electro-galvanized, hot dip galvanized, painted Stainless Steel 304 / A2 diamond point ring F58A CHN33-90B SCRAIL, F58AC CHN33-90B SCR
FP123120E flat head Plastic Strip 2.2 - 3.3 mm | 0.086 - 0.131" 25 - 82 mm | 1 - 3 1/4" 20 - 50 20° bright Standard Steel diamond point smooth FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP163120E flat head Plastic Strip 2.2 - 3.3 mm | 0.086 - 0.131" 25 - 90 mm | 1 - 3 1/2" 20 - 50 20° bright Standard Steel diamond point smooth FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP2121320HDE4M flat head Plastic Strip 2.2 - 2.8 mm | 0.086 - 0.113" 25 - 65 mm | 1 - 2 1/2" 20 - 50 20° hot dip galvanized Standard Steel diamond point smooth FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP2121320RHDE4M flat head Plastic Strip 2.2 - 2.8 mm | 0.086 - 0.113" 25 - 65 mm | 1 - 2 1/2" 20 - 50 20° hot dip galvanized Standard Steel diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP2121320RSSE4M flat head Plastic Strip 2.2 - 2.8 mm | 0.086 - 0.113" 25 - 65 mm | 1 - 2 1/2" 20 - 50 20° bright, electro-galvanized, hot dip galvanized, painted Stainless Steel 304 / A2 diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP2121320SSE4M flat head Plastic Strip 2.2 - 2.8 mm | 0.086 - 0.113" 25 - 65 mm | 1 - 2 1/2" 20 - 50 20° bright, electro-galvanized, hot dip galvanized, painted Stainless Steel 304 / A2 diamond point smooth FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP61320SE flat head Plastic Strip 2.2 - 2.8 mm | 0.086 - 0.113" 25 - 50 mm | 1 - 2" 20 - 50 20° bright Standard Steel diamond point screw FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP61320SHDE flat head Plastic Strip 2.2 - 2.8 mm | 0.086 - 0.113" 25 - 50 mm | 1 - 2" 20 - 50 20° hot dip galvanized Standard Steel diamond point screw FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP81320E flat head Plastic Strip 2.2 - 2.8 mm | 0.086 - 0.113" 25 - 60 mm | 1 - 2 3/8" 20 - 50 20° bright Standard Steel diamond point smooth FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP81320RSSE flat head Plastic Strip 2.2 - 2.8 mm | 0.086 - 0.113" 25 - 60 mm | 1 - 2 3/8" 20 - 50 20° bright, electro-galvanized, hot dip galvanized, painted Stainless Steel 304 / A2 diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
FP81320SHDE4M flat head Plastic Strip 2.2 - 2.8 mm | 0.086 - 0.113" 25 - 60 mm | 1 - 2 3/8" 20 - 50 20° hot dip galvanized Standard Steel diamond point screw FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
  Head type Collation type Diameter Length Strip capacity Collation degrees Finish Material Nailpoint Shank FASCO® tool
RN29.1687 flat head Plastic Strip 2.9 mm | 0.086 - 0.114" 50 mm | 1 - 2" 20 - 50 20° bright Standard Steel diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
RN29.1688 flat head Plastic Strip 2.9 mm | 0.086 - 0.114" 50 mm | 1 - 2" 20 - 50 20° electro-galvanized Standard Steel diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
RN29.1689 flat head Plastic Strip 2.9 mm | 0.086 - 0.114" 60 mm | 1 - 2 23/64" 20 - 50 20° bright Standard Steel diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
RN29.1690 flat head Plastic Strip 2.9 mm | 0.086 - 0.114" 60 mm | 1 - 2 23/64" 20 - 50 20° electro-galvanized Standard Steel diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
RN29.1691 flat head Plastic Strip 2.9 mm | 0.086 - 0.114" 65 mm | 1 - 2 1/2" 20 - 50 20° bright Standard Steel diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
RN29.1692 flat head Plastic Strip 2.9 mm | 0.086 - 0.114" 65 mm | 1 - 2 1/2" 20 - 50 20° electro-galvanized Standard Steel diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
RN29.1693 flat head Plastic Strip 2.9 mm | 0.086 - 0.114" 75 mm | 1 - 3" 20 - 50 20° bright Standard Steel diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
RN29.1694 flat head Plastic Strip 2.9 mm | 0.086 - 0.114" 75 mm | 1 - 3" 20 - 50 20° electro-galvanized Standard Steel diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
RN31.1234 flat head Plastic Strip 3.1 mm | 0.086 - 0.122" 82 mm | 1 - 3 1/4" 20 - 50 20° bright Standard Steel diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
RN31.1235 flat head Plastic Strip 3.1 mm | 0.086 - 0.122" 82 mm | 1 - 3 1/4" 20 - 50 20° electro-galvanized Standard Steel diamond point ring FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
RN31.1236 flat head Plastic Strip 3.1 mm | 0.086 - 0.122" 90 mm | 1 - 3 1/2" 20 - 50 20° bright Standard Steel diamond point smooth FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
RN31.1237 flat head Plastic Strip 3.1 mm | 0.086 - 0.122" 90 mm | 1 - 3 1/2" 20 - 50 20° electro-galvanized Standard Steel diamond point smooth FASCO F58AC RHN20-90B SCR, F58A RHN20-90C SCRAIL
