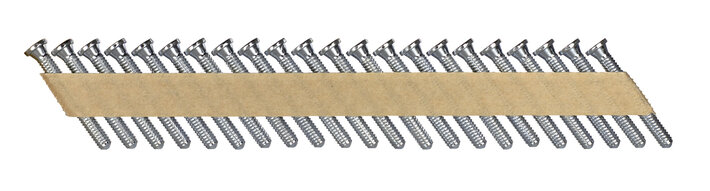

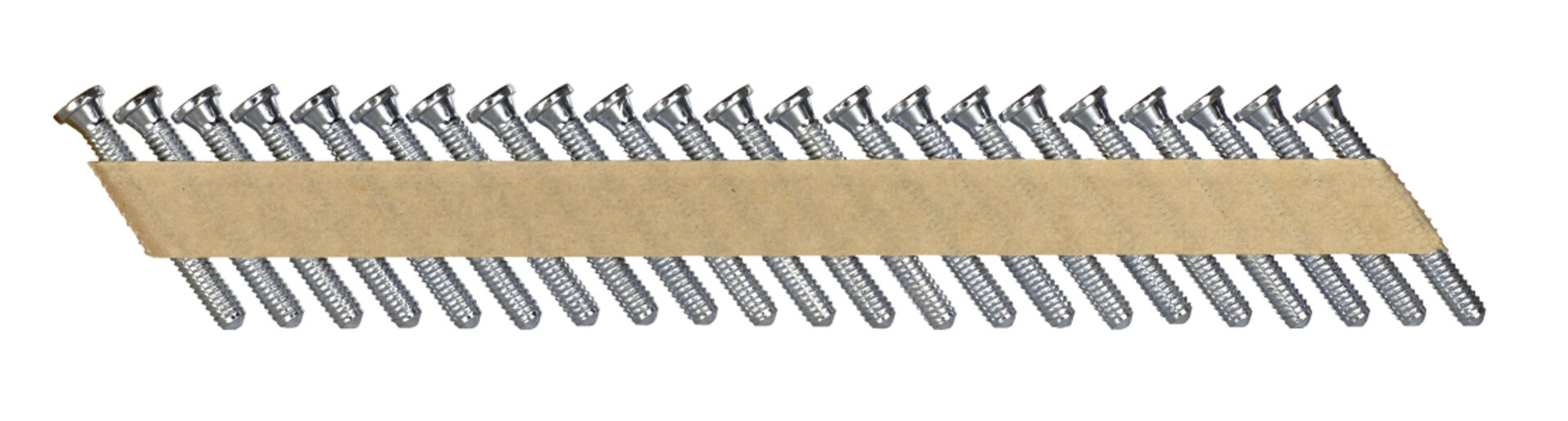

PAPER TAPE SCRAIL®ANCHOR

SCRAIL® ANCHOR are setting new benchmarks in the realm of timber construction. With an astounding 8-fold increase in insertion speed compared to traditional loose anchor nails, they significantly accelerate your projects. The ability to easily readjust and remove SCRAIL® nail screw fasteners facilitates flexible constructions and swift disassembly, whether it's carports, play towers, or similar structures. Moreover, they align seamlessly with principles of the circular economy, allowing for effortless separation of building materials after use. For outdoor projects, our stainless-quality SCRAIL® ANCHOR are a top choice. Experience innovation with SCRAIL® ANCHOR by BECK.

  • Processed 8x faster than loose anchor nails
  • Patented STEELTHREAD special thread enables excellent holding force
  • Quickly readjusted and easily removed
  • Perfectly suited for circular construction

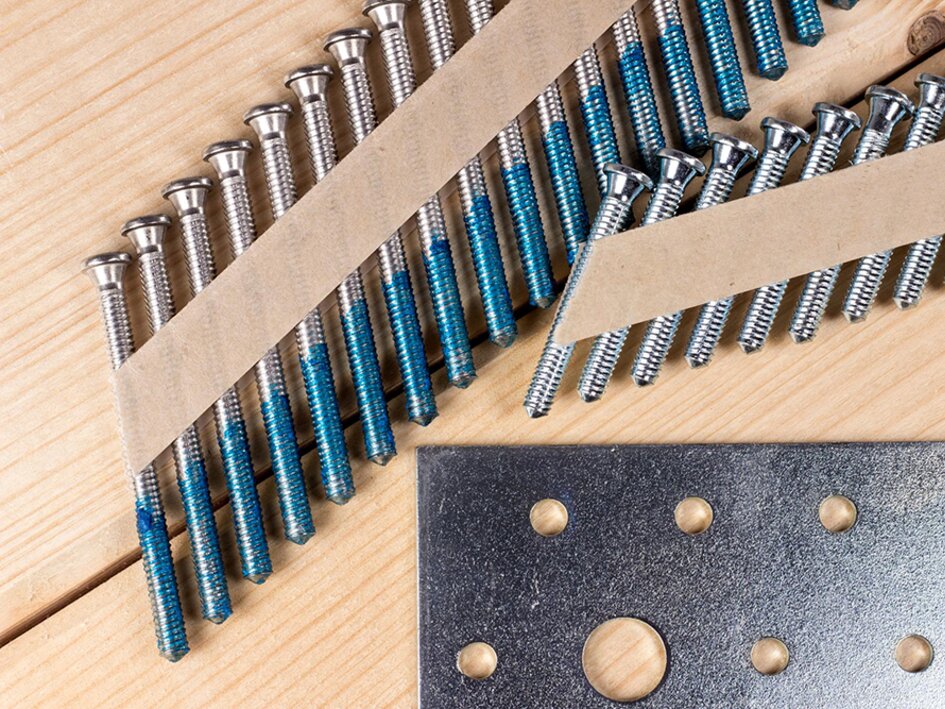

  • Also available with special DIAMOND COATING for maximum holding power
  • Available in stainless quality for outdoor use
Request product

SCRAIL® ANCHOR nail screw fasteners are the innovative answer to the requirements of modern timber construction. These specially developed fasteners set new standards for speed, efficiency and sustainability in construction.

Product variants

Technical data

Thread type
Steelthread
Collation type
Paper Tape
Inner diameter
4 mm | 0.157"
Outer diameter
4.2 mm | 0.165"
Length
38 - 58 mm | 1 1/2"
Drive type
Torx®
Strip capacity
20 - 25
Finish
electro-galvanized, FASCOAT®
Material
Standard steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4
Collation degrees
33°
FASCO® tool
F54 JOIST/ANCHOR 34-60, F70G JOIST/ANCHOR 34-60 EU

Applications

icon
Drywall
icon
Interior construction
icon
Fencing
icon
Framing
icon
Siding
icon
Manufactured housing
icon
Structural timber construction

Standards and test marks

EN 14592

Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.

PAPER TAPE SCRAIL®ANCHOR
  Thread type Collation type Inner diameter Outer diameter Length Drive type Strip capacity Finish Material Collation degrees FASCO® tool
CHN40ANKSC.22 Steelthread Paper Tape 4 mm | 0.157" 4.2 mm | 0.165" 38 mm Torx® 22 bright with Diamond Coating Stainless Steel 304 / A2 34° F54 JOIST/ANCHOR 34-60, F70G JOIST/ANCHOR 34-60
CHN40ANKSC.24 Steelthread Paper Tape 4 mm | 0.157" 4.2 mm | 0.165" 58 mm Torx® 22 bright with Diamond Coating Stainless Steel 304 / A2 34° F54 JOIST/ANCHOR 34-60, F70G JOIST/ANCHOR 34-60
CHN40ANKSC.25 Steelthread Paper Tape 4 mm | 0.157" 4.2 mm | 0.165" 38 mm Torx® 22 electro galvanized with Diamond Coating 34° F54 JOIST/ANCHOR 34-60, F70G JOIST/ANCHOR 34-60
CHN40ANKSC.26 Steelthread Paper Tape 4 mm | 0.157" 4.2 mm | 0.165" 48 mm Torx® 22 electro galvanized with Diamond Coating 34° F54 JOIST/ANCHOR 34-60, F70G JOIST/ANCHOR 34-60
CHN40ANKSC.27 Steelthread Paper Tape 4 mm | 0.157" 4.2 mm | 0.165" 58 mm Torx® 22 electro galvanized with Diamond Coating 34° F54 JOIST/ANCHOR 34-60, F70G JOIST/ANCHOR 34-60
CHN40ANKSC.28 Steelthread Paper Tape 4 mm | 0.157" 4.2 mm | 0.165" 48 mm Torx® 22 bright with Diamond Coating Stainless Steel 304 / A2 34° F54 JOIST/ANCHOR 34-60, F70G JOIST/ANCHOR 34-60
