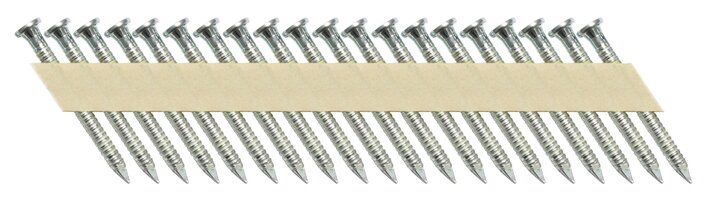

PAPER TAPE ANCHOR NAILS

Ideal solution for fastening joist shoes and pre-drilled panels, for timber connections in structural timber construction. With the powerful FASCO® F70G Joist/Anchor 34-60 gas tool, safe and efficient processing of the anchor nails is guaranteed at all times.

Collation type
Paper Tape
Collation degrees
33°
Length
37 - 75 mm | 1 7/16 - 3"
Diameter
4 mm | 0.157"
Request product

Product variants

Technical data

Head type
anker head
Collation type
Paper Tape
Diameter
4 mm | 0.157"
Length
37 - 75 mm | 1 7/16 - 3"
Strip capacity
22
Collation degrees
33°
Finish
electro-galvanized, hot dip galvanized
Material
Standard Steel, Stainless Steel 304 / A2, Stainless Steel 316 / A4
Nailpoint
diamond point
Shank
ring
FASCO® tool
F54 JOIST/ANCHOR 34-60, F70G JOIST/ANCHOR 34-60 EU, F70G JOIST/ANCHOR 34-60 US

Applications

icon
Framing
icon
Sheathing

Standards and test marks

EN 14592

Many of our fasteners are CE-marked according to DIN EN 14592 and comply with the requirements of Eurocode 5.

ASTM F1667

We manufacture our products in accordance with the requirements of ASTM F1667. If you need detailed information, we are happy to help.

PAPER TAPE ANCHOR NAILS
  Head type Collation type Diameter Length Strip capacity Collation degrees Finish Material Nailpoint Shank FASCO® tool
CHN-40ANKER.112 anker head Paper Tape 4 mm | 0.157" 40 mm | 1 37/64" 22 34° electro-galvanized Standard Steel diamond point ring F54 JOIST/ANCHOR 34-60, F70G JOIST/ANCHOR 34-60
CHN-40ANKER.114 anker head Paper Tape 4 mm | 0.157" 50 mm | 2" 22 34° electro-galvanized Standard Steel diamond point ring F54 JOIST/ANCHOR 34-60, F70G JOIST/ANCHOR 34-60
CHN-40ANKER.113 anker head Paper Tape 4 mm | 0.157" 60 mm | 2 23/64" 22 34° electro-galvanized Standard Steel diamond point ring F54 JOIST/ANCHOR 34-60, F70G JOIST/ANCHOR 34-60
