Fasteners /// Brads and Pins /// Angle Brads

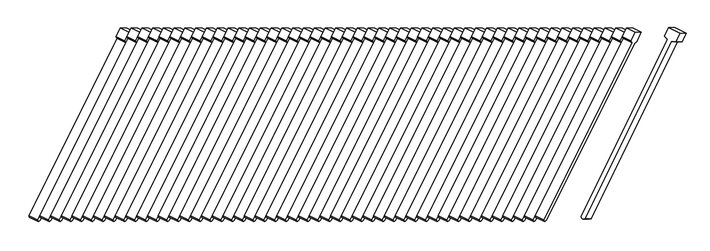

FN16 Angle Brads 26° (16 GA.)

Ideal for tight niches and angles in interior work due to the large collation angle. Compatible with the Ace & K TYI 261650AB bradder and the Bea SKAM 450-227C bradder.

Pin type

Angle Brads

Length

25 - 63 mm | 1 - 2 1/2"

Wire diameter

1.6 mm | 0.063"

Request product

Stock items America

Pin type

Angle Brads

Length

25 - 63 mm | 1 - 2 1/2"

Wire diameter

1.6 mm | 0.063"

Gauge

Flattening

1.6 mm x 1.4 mm | 0.063" x 0.053"

Head size

1.3 mm x 2.8 mm | 0.049" x 0.11"

Strip angle

26°

Finish

electro-galvanized

Material

Standard Steel, Stainless Steel 304 / A2

Similar to

BOSTITCH FN

Furniture & bedding

Millwork

Finish & trim

FN16 Angle Brads 26° (16 GA.)

	Pin type	Length	Wire diameter	Gauge	Flattening	Head size	Strip angle	Finish	Material	Similar to
EB638OG	Angle Brads	38 mm \| 1 - 1 1/2"	1.6 mm \| 0.063"	16	1.6 mm x 1.4 mm \| 0.063" x 0.053"	1.3 mm x 2.8 mm \| 0.049" x 0.11"	26°	electro-galvanized	Standard Steel	BOSTITCH FN
EB650OG	Angle Brads	50 mm \| 1 - 2"	1.6 mm \| 0.063"	16	1.6 mm x 1.4 mm \| 0.063" x 0.053"	1.3 mm x 2.8 mm \| 0.049" x 0.11"	26°	electro-galvanized	Standard Steel	BOSTITCH FN
