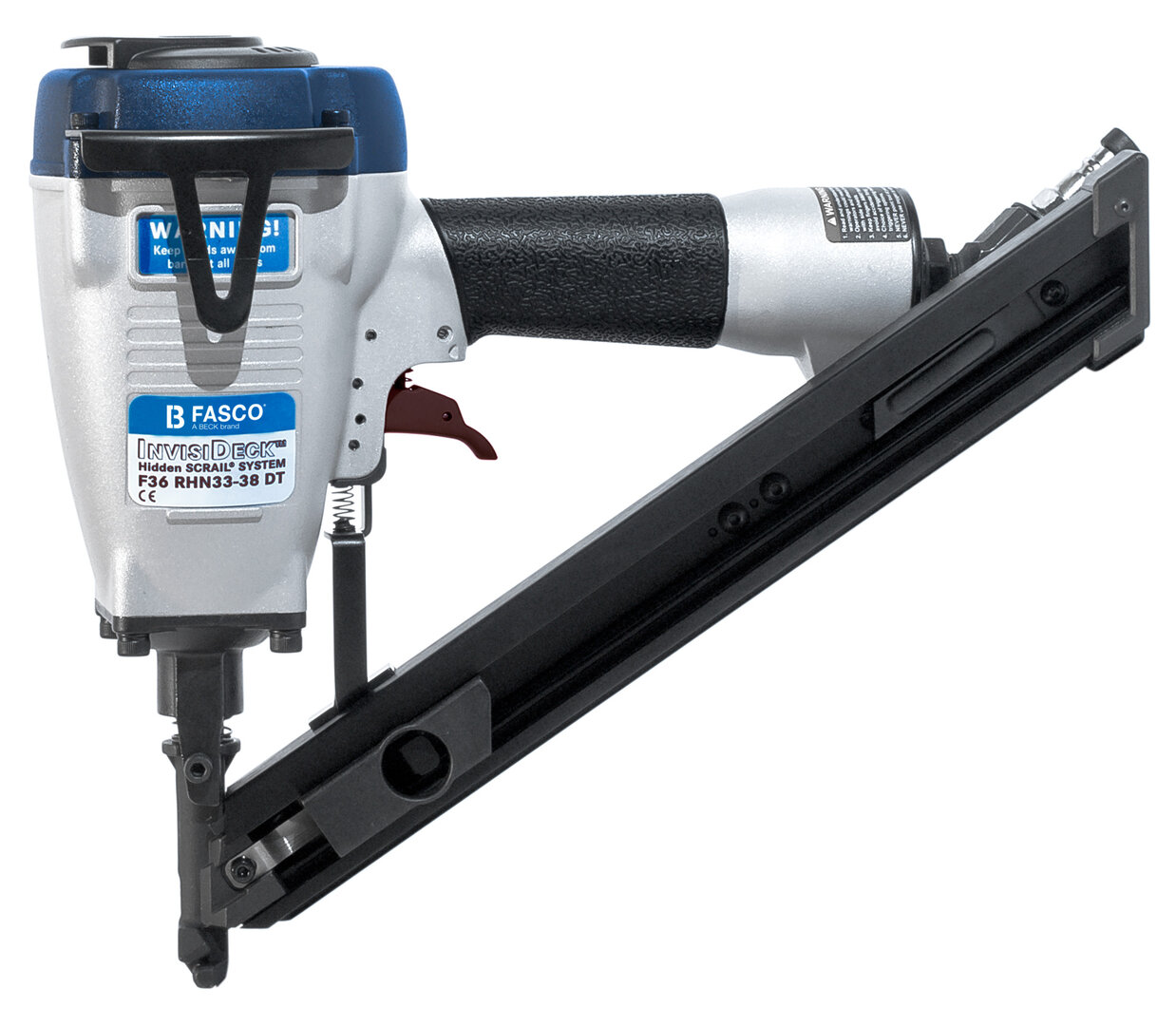

F36 RHN33-38 DT INVISIDECK®
The Nose of the F36 RHN33-38 DT InvisiDeck® is specially designed for the perfect hold of I-CLP clips. With the strip nailer, you are 3 - 5 times faster than conventional installation.
Item number
11365
Nail length
38 mm
Scrail length
38 - 38 mm | 1 1/2 - 1 1/2"
Weight
2.3 kg | 5.071 lbs
Actuation system
Single Sequential Actuation
Technical data
Item number
11365
Magazine capacity
31
Nail length
38 mm
Scrail length
38 - 38 mm | 1 1/2 - 1 1/2"
Height
285 mm | 11.22"
Width
114 mm | 4.488"
Length
326 mm | 12.835"
Weight
2.3 kg | 5.071 lbs
Pressure
5.5 - 8 bar | 80 - 115 psi
Actuation system
Single Sequential Actuation
Loading
rear loading
Applications
Decking
Downloads
Handout_F36 RHN33-38 DT INVISIDECK_2011_DE_screen.pdf
pdf, 837.03 KB
Handout_F36 RHN33-38 DT INVISIDECK_2011_EN_screen.pdf
pdf, 835.23 KB
Handout_F36 RHN33-38 DT INVISIDECK_2011_US_screen.pdf
pdf, 431.94 KB
F36-RHN33-38 DT-InvisiDeck-Exploded-Sheet.pdf
pdf, 352.66 KB
F36-RHN33-38 DT-InvisiDeck-Technical-Data-Sheet.pdf
pdf, 446.69 KB
