C 13 Mezger® Stapling Head System

Product only available in: Mexico, United States

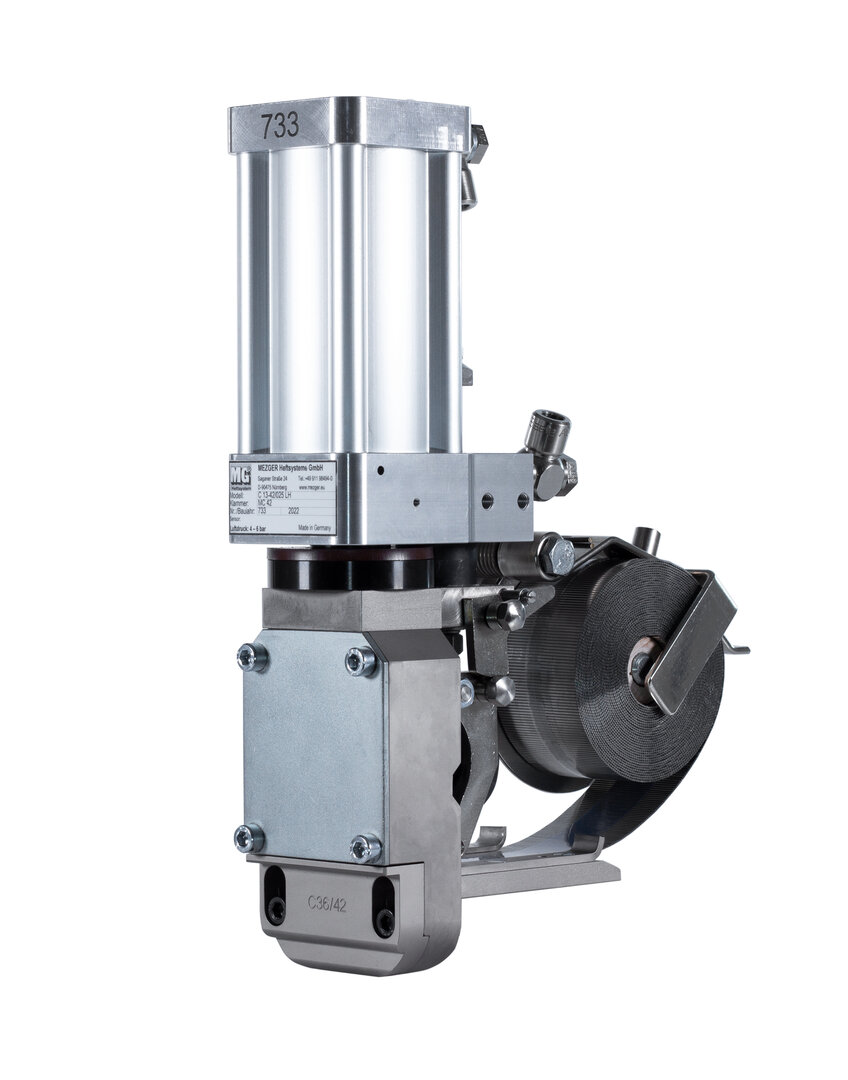

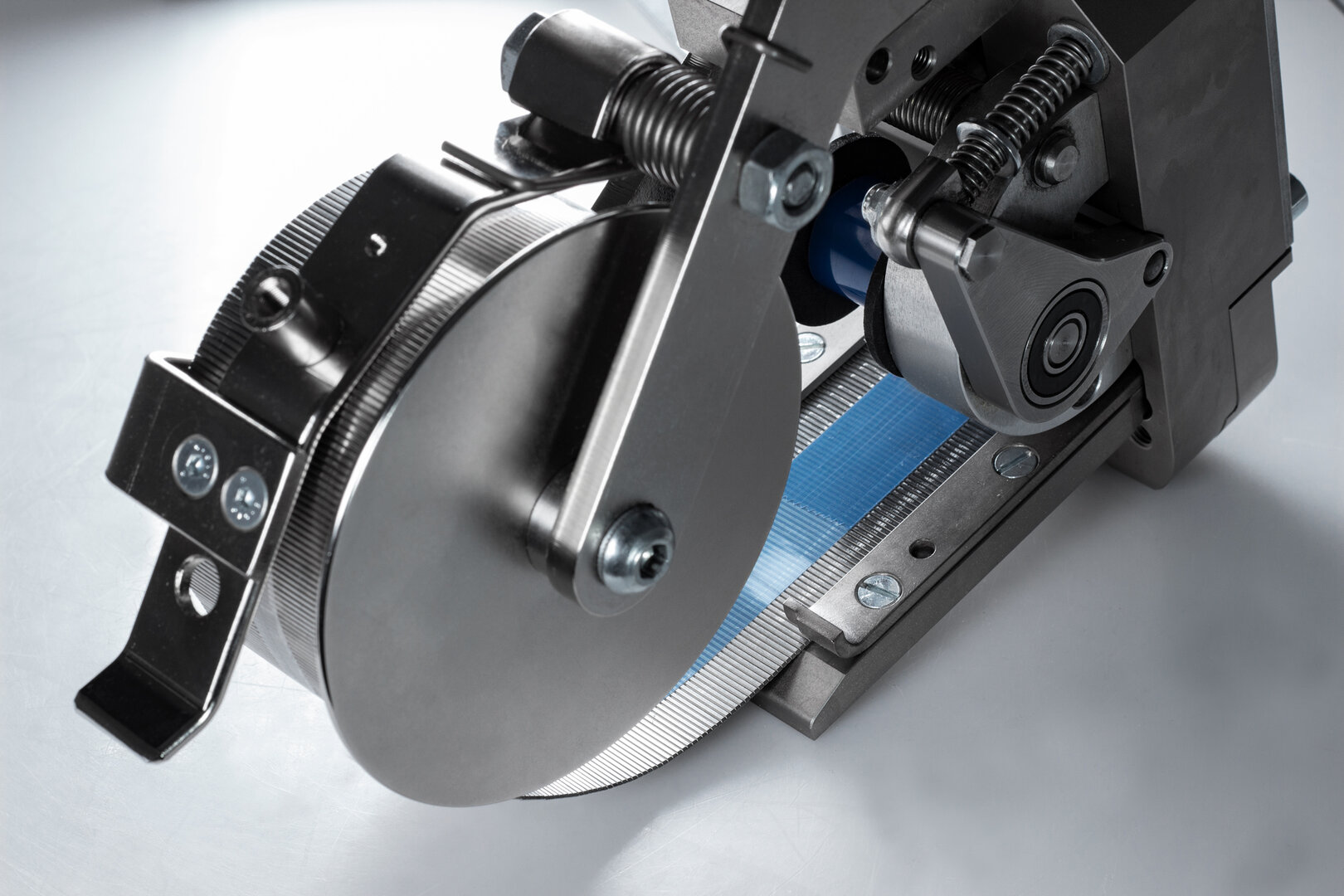

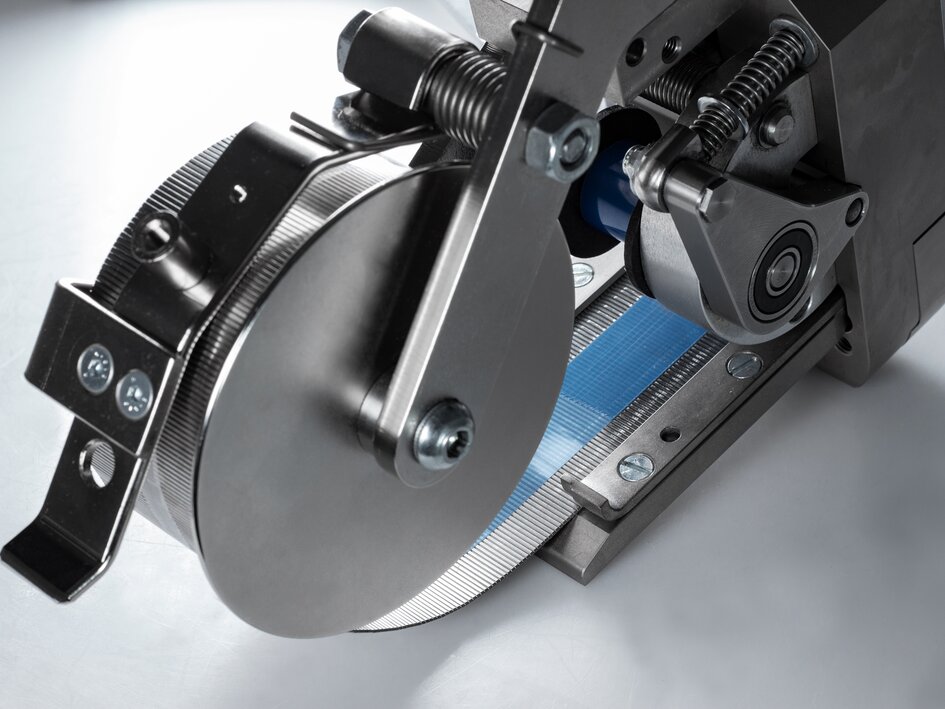

C13 Mezger® stapling head system for coiled staples (13 mm crown, 1.0 mm wire). Complete pneumatic nailing or stapling unit with an automatic feed travel for stationary installation into stapling devices and special purpose machines.

  • Fastening in any position
  • Easily mounted with built-in mounting bracket
  • Available in either right hand or left-hand load
  • Different stroke/feed path up to 25, 40, 80 mm

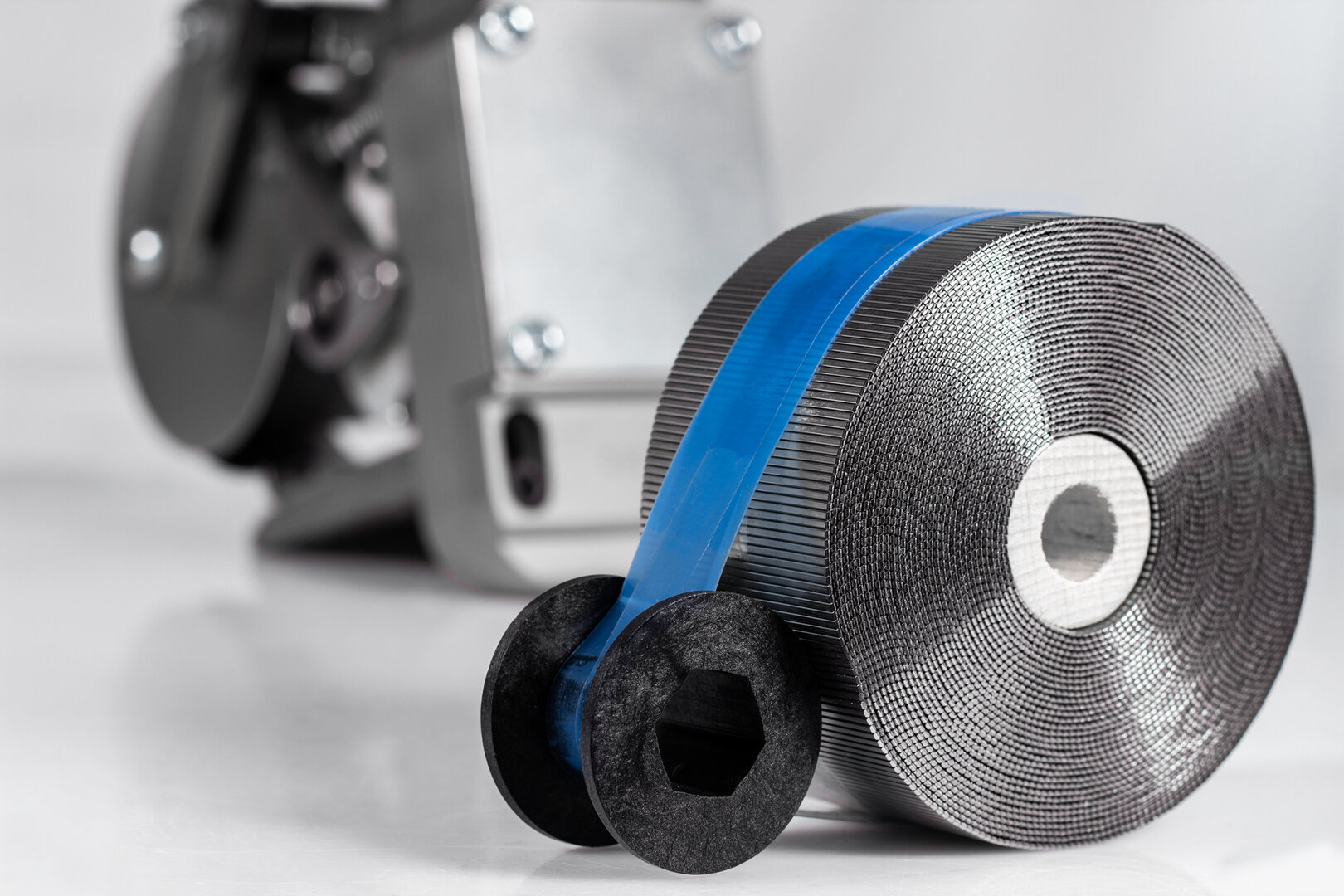

  • Reloading time of a staple coil in less than one minute
Request product

If you are located outside the available countries for this product (Mexico, United States), you can enquire the products here.

Technical data

Staple

Leg length
26 - 42 mm | 1" - 1 5/8""
Leg thickness
0.8 mm | 0.031"
Leg width
1.1 mm | 0.043"
Outside crown
13 mm | 0.512"
Inside crown
11 mm | 0,533"

Tool

Magazine capacity
5000
Fastener length
6 - 15 mm | 1/4" - 5/8""
Height
298 mm | 11.732"
Width
75 mm | 2.952"
Length
215 mm | 8.464"
Weight
5.2 kg | 114 lbs
Pressure
4 - 6 bar | 58 - 87 psi

System

Brand
MEZGER®
Series of stapling heads
C 13-26, C 13-30, C 13-36, C 13-42

Applications

icon
Carton Closing
icon
Automotive
icon
Pallets & crates
