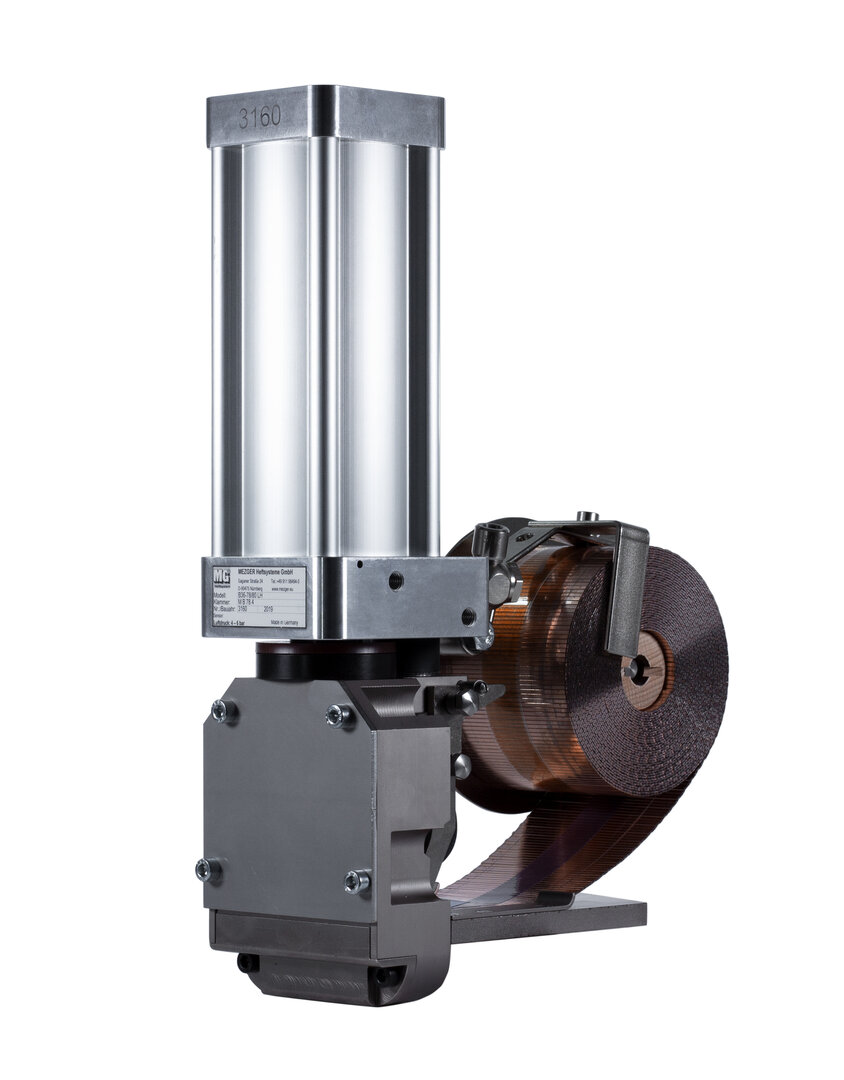

B 36 Mezger® Stapling Head System
Product only available in: Mexico, United States
B 36 Mezger® stapling head system for coiled staples (36 mm crown, 2.0 mm wire). Complete pneumatic nailing or stapling unit with an automatic feed travel for stationary installation into stapling devices and special purpose machines.
-
Fastening in any position
-
Easily mounted with built-in mounting bracket
-
Available in either right hand or left-hand load
-
Different stroke/feed path up to 40, 80, 150 mm
-
Reloading time of a staple coil in less than one minute
If you are located outside the available countries for this product (Mexico, United States), you can enquire the products here.
Technical data
Staple
Leg length
60 - 78 mm | 2 3/8" - 3""
Leg thickness
1 mm | 0.039"
Leg width
2 mm | 0.078"
Outside crown
36 mm | 1.417"
Inside crown
34 mm | 1.338"
Tool
Magazine capacity
4000
Staple Length
12 - 21 mm | 1/2" - 7/8""
Height
339 mm | 13.34"
Width
106 mm | 4.17"
Length
270 mm | 10.63"
Weight
7.3 kg | 16.1 lbs
Pressure
4 - 6 bar | 58 - 87 psi
System
Brand
MEZGER®
Series of stapling heads
B 36-60, B 36-70, B 36-78
Applications
Carton Closing
Automotive
Pallets & crates
