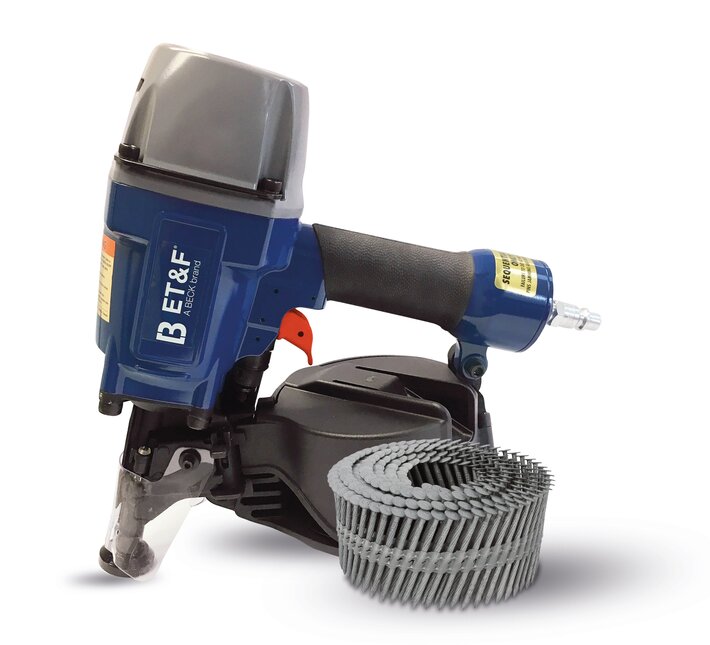

ET&F® STUCCOFAST® MODEL 500MA System

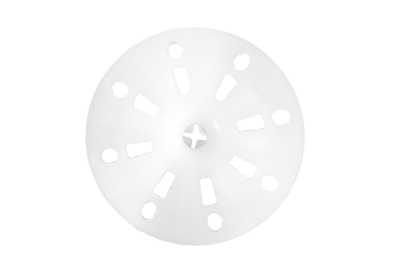

The ET&F® STUCCOFAST® Model 500MA System is a pneumatic fastening solution designed for attaching stucco lath and insulation to light gauge steel framing and steel studs up to 14 gauge (1,9 mm). The system combines the ET&F® STUCCOFAST® MODEL 500MA System includes the STUCCOFAST® Model 550 MA coil nailer with magnetic washer holder, hardened ET&F® AKN-100 coiled pins, and steel or plastic washers that capture and contain wire lath during installation. Sequential actuation and adjustable overdrive control provide precise, consistent fastening, while operation with a standard jobsite air compressor (70 – 120 psi) delivers the speed and efficiency of pneumatic installation without the delays of traditional screw fastening. The fastest, safest, lowest cost and easiest way to attach stucco lath and insulation to cold formed steel framing. It's as easy as nailing to wood!

  • Magnetic washer holder for fast and accurate stucco lath installation

  • Drives ET&F® AKN-100 hardened coil pins for steel stud fastening

  • Adjustable overdrive control for precise depth adjustment

  • Sequential actuation for controlled fastening

  • Operates with standard jobsite air compressors (70 – 120 psi)

Request product

Screws slow the job. Stucco lath demands speed. The professional system for fastening lath to steel studs.

Technical data

Nail

Head type
Flat Head
Collation type
Plastic Rope Coil
Diameter
2.54 mm | 0.1"
Length
38 - 63 mm | 1 1/2 - 2 1/2"
Coil shape
Flat
Collation degrees
20°
Finish
Aericote® 1000
Material
High Carbon Steel
Nailpoint
Sharp Pin Point
Shank
Knurled

Tool

Item number
ETF500MA
Fastener type
AKN-100 Pins
Magazine capacity
300
Nail length
38 - 65 mm | 1 1/2 - 2 1/2"
Height
297 mm | 11,69"
Width
134 mm | 5,28"
Length
264 mm | 10,39"
Weight
2.7 kg | 5,95 lbs
Pressure
5 - 8 bar | 70 - 120 psi
Actuation system
Single Sequential Actuation
Loading
Coil

Stucco Lath Installation on Steel Stud Framing

  • Wire stucco lath to light gauge steel framing

  • Stucco lath with insulation to steel studs

  • Exterior stucco wall assemblies on steel stud structures

  • Lath and sheathing attachment in steel framed construction

  • Residential and commercial stucco systems on cold formed steel framing

Applications

icon
Drywall
icon
Interior construction
icon
Insulation
icon
Siding
