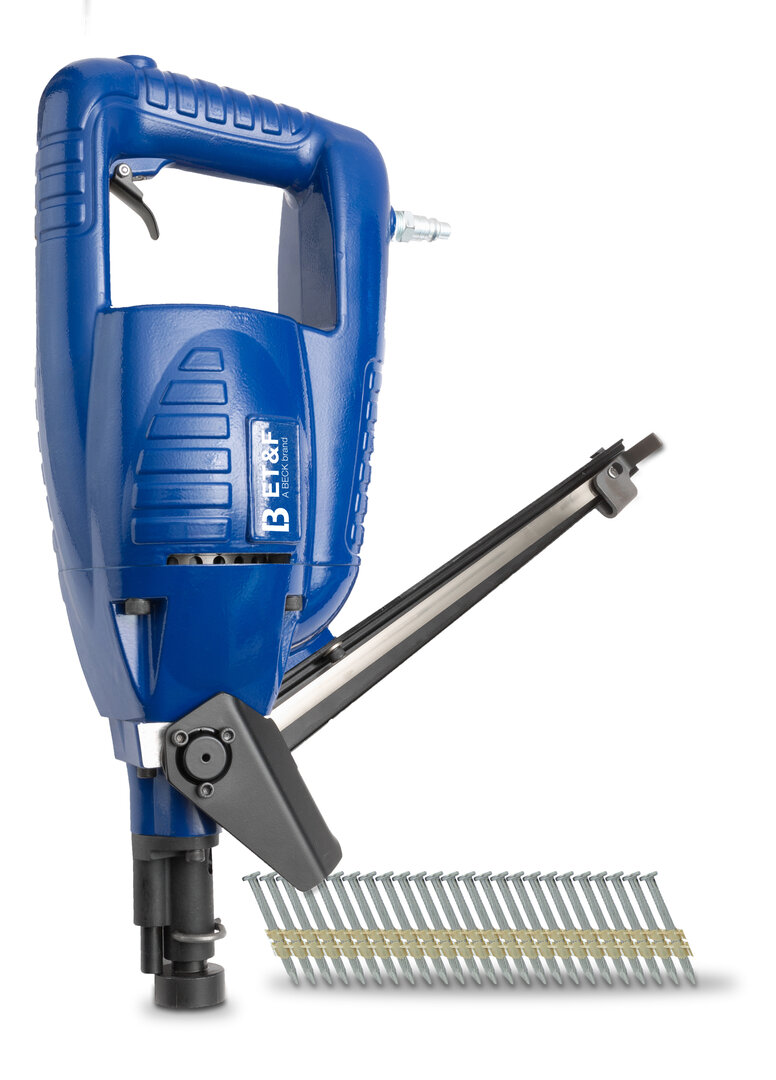

AERICO® 90
The ergonomically designed Aerico® 90 tool drives plastic collated ASM-144 pins and AKN-144 pins into both steel and concrete substrates. Fasteners are available either taped or plastic collated.
Technical data

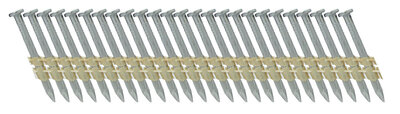

Nail
Head type
flat head
Collation type
Plastic Strip
Diameter
3.6 mm | 0.14"
Length
32 - 57 mm | 1 1/4 - 2 1/4"
Strip capacity
25
Collation degrees
20°
Finish
mechanical galvanized
Material
High Carbon Steel
Nailpoint
sharp pin point
Shank
knurled, smooth
Tool
Fastener type
ASM-144 & AKN-144 Pins
Magazine capacity
25 pins
Pin Length
32 - 57 mm | 1 1/4 - 2 1/4"
Height
470 mm | 18 1/2"
Width
140 mm | 5 1/2"
Length
432 mm | 17"
Weight
5 kg | 18 lbs
Pressure
8 - 12 bar | 120 - 180 psi
Actuation system
Full Sequential Actuation
Applications
Sheathing
Steel framing
Manufactured housing
Siding
Flooring & subflooring
Standards and test marks
ESR 2290
This report recognizes the use of ET&F® pneumatic fasteners used to attach fiber cement HardiePlank® siding, manufactured by the James Hardie Building Products, to light gauge steel framing and to concrete masonry units.
