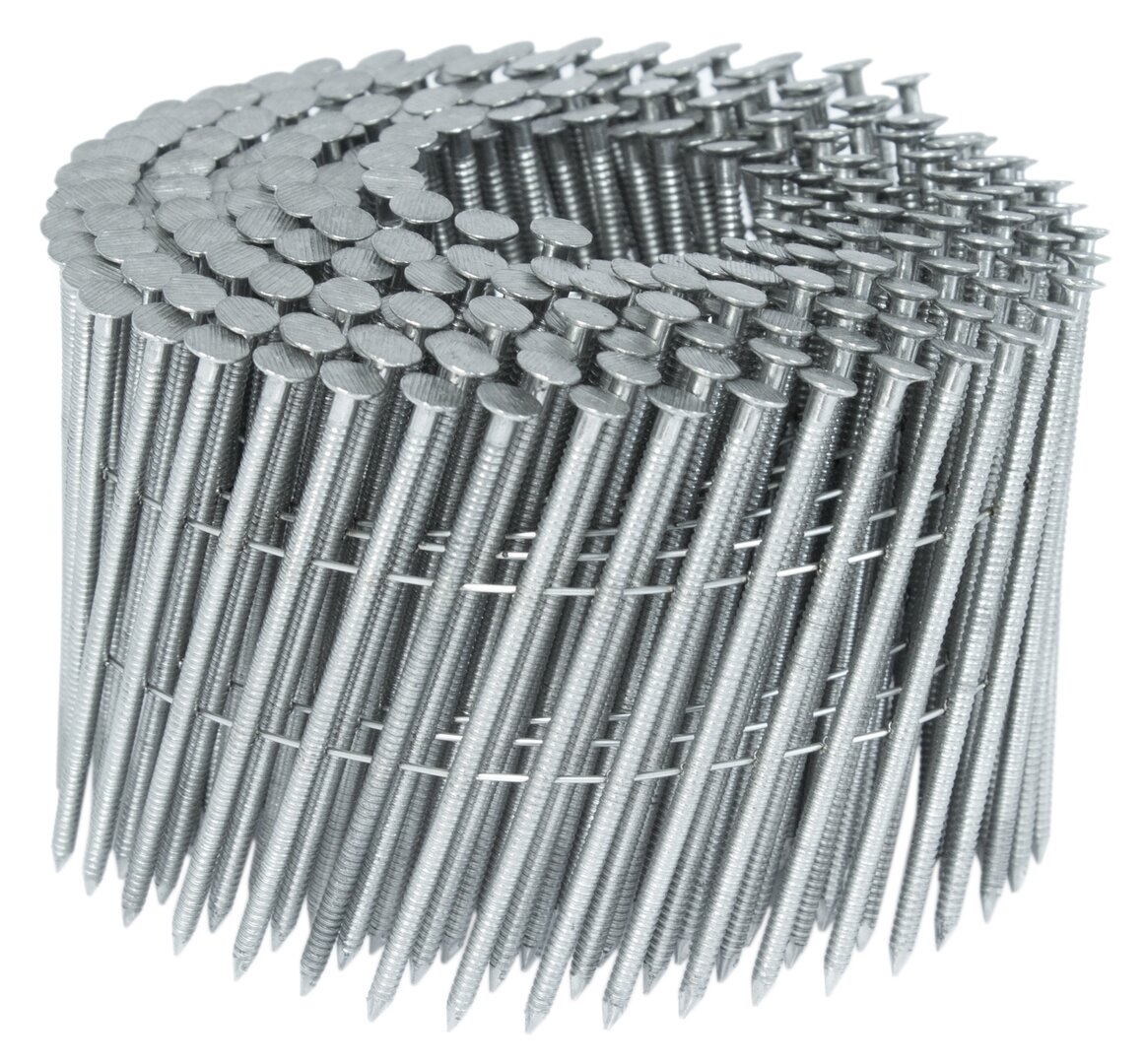

Draht Coilnägel

Kosteneffizient und ganz nach Bedarf in unterschiedlichen Konfigurationen erhältlich. Bestens geeignet für unser breites Sortiment an den eigenen FASCO® Draht Coil Geräten. Auf Wunsch können wir die Drahtcoilnägel auch in verschiedenen Magazinierungswinkeln anbieten.

Magazinierung
Draht Coil
Grad Magazinierung
15°
Länge
16 - 128 mm | 5/8 - 5"
Durchmesser
1,6 - 3,8 mm | 0,063 - 0,148"

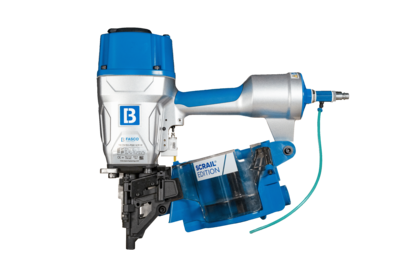

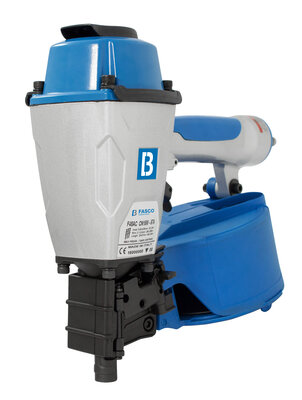

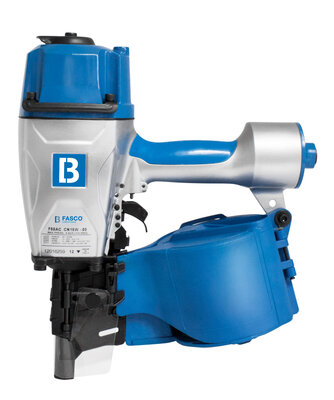

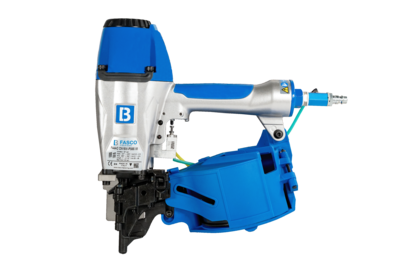

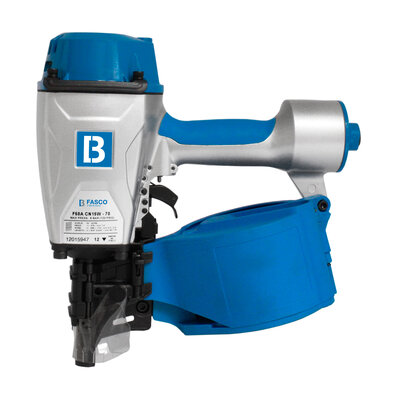

FASCO® Gerät

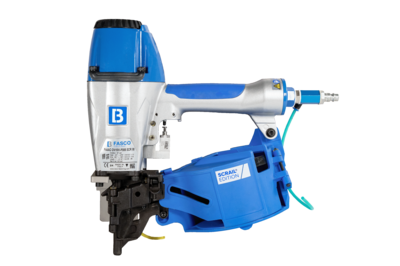

F33 CN15W-PS50 SCR, F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL, F45C CN15W-PS65L S, F48C CN15W-55, F58A CN15W-70, F58AC CN15W-80, F60 CN15W-PS90 SCR
Produkt anfragen

Technische Daten

Kopfform
Flachkopf, Trompetenkopf, Scheinhaken, Trompetenkopf Gipskarton, Doppelkopf, Linsenkopf
Magazinierung
Draht Coil
Durchmesser
1,6 - 3,8 mm | 0,063 - 0,148"
Länge
16 - 128 mm | 5/8 - 5"
Spulen-Kapazität
200 - 3.000
Spulen-Form
konisch, flach
Grad Magazinierung
15°
Oberfläche
elektro-verzinkt, feuerverzinkt, blank, verkupfert, schwarz oxidiert
Material
Standard Stahl, rostfrei A2, rostfrei A4, hochfester Stahl, Kupfer
Spitze
Meißelspitze, Diamantspitze, ohne Spitze, stumpfe Spitze
Schaft
ring, gerändelt, glatt, glatt-gerauht, schraub
FASCO® Gerät
F33 CN15W-PS50 SCR, F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL, F45C CN15W-PS65L S, F48C CN15W-55, F58A CN15W-70, F58AC CN15W-80, F60 CN15W-PS90 SCR

Anwendungsgebiete

icon
Terrassenbau
icon
Zaunbau
icon
Holzrahmenbau
icon
Beplankung
icon
Außenverkleidungen & Fassaden
icon
Paletten & Holzkisten
icon
Fertighausbau

Normen und Prüfzeichen

ASTM F1667

Wir fertigen unsere Produkte in Anlehnung an die Vorgaben der ASTM F1667. Zu detaillierten Informationen beraten wir Sie gerne.

EN 14592

Viele unserer Befestigungsmittel sind mit einer CE-Kennzeichnung nach DIN EN 14592 ausgestattet und entsprechen den Vorgaben des Eurocode 5.

ESR 1539

Viele unserer Befestigungsmittel verfügen gemäß der ICC ESR 1539 über eine Bauzulassung für den US-amerikanischen Markt.

Draht Coilnägel
  Kopfform Magazinierung Durchmesser Länge Spulen-Kapazität Spulen-Form Grad Magazinierung Oberfläche Material Spitze Schaft FASCO® Gerät
MC1021RSSE1M Flachkopf Draht Coil 1,6 - 3,1 mm | 0,063 - 0,121" 16 - 75 mm | 5/8 - 3" 200 - 3.000 konisch, flach 15° elektro-verzinkt, feuerverzinkt, blank, verkupfert, schwarz oxidiert rostfrei A2 Diamantspitze ring F58AC CN15W-80, F60AC CN15W-PS90 SCR
MC17886RGE Flachkopf Draht Coil 1,6 - 2,2 mm | 0,063 - 0,086" 16 - 48 mm | 5/8 - 1 7/8" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze ring FASCO F45C CN15W-PS65L, F48C CN15W-55, F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL
MC21290RSSE4M Flachkopf Draht Coil 1,6 - 2,3 mm | 0,063 - 0,09" 16 - 64 mm | 5/8 - 2 1/2" 200 - 3.000 konisch, flach 15° elektro-verzinkt, feuerverzinkt, blank, verkupfert, schwarz oxidiert rostfrei A2 Diamantspitze ring FASCO F45C CN15W-PS65L, F48C CN15W-55, F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL
MC590RSSE Flachkopf Draht Coil 1,6 - 2,3 mm | 0,063 - 0,09" 16 - 44 mm | 5/8 - 1 3/4" 200 - 3.000 konisch, flach 15° elektro-verzinkt, feuerverzinkt, blank, verkupfert, schwarz oxidiert rostfrei A2 Diamantspitze ring FASCO F45C CN15W-PS65L, F48C CN15W-55, F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL
MC590RSSE4M Flachkopf Draht Coil 1,6 - 2,3 mm | 0,063 - 0,09" 16 - 44 mm | 5/8 - 1 3/4" 200 - 3.000 konisch, flach 15° elektro-verzinkt, feuerverzinkt, blank, verkupfert, schwarz oxidiert rostfrei A2 Diamantspitze ring FASCO F45C CN15W-PS65L, F48C CN15W-55, F44AC CN15W-PS65 SCRAIL, F44AC CN15W-PS65L
MC686RE Flachkopf Draht Coil 1,6 - 2,2 mm | 0,063 - 0,086" 16 - 50 mm | 5/8 - 2" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring FASCO F45C CN15W-PS65L, F48C CN15W-55, F44AC CN15W-PS65 SCRAIL, F44AC CN15W-PS65L
MC686RGE Flachkopf Draht Coil 1,6 - 2,2 mm | 0,063 - 0,086" 16 - 50 mm | 5/8 - 2" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze ring FASCO F45C CN15W-PS65L, F48C CN15W-55, F44AC CN15W-PS65 SCRAIL, F44AC CN15W-PS65L
MC690RSSE4M Flachkopf Draht Coil 1,6 - 2,3 mm | 0,063 - 0,09" 16 - 50 mm | 5/8 - 2" 200 - 3.000 konisch, flach 15° elektro-verzinkt, feuerverzinkt, blank, verkupfert, schwarz oxidiert rostfrei A2 Diamantspitze ring FASCO F45C CN15W-PS65L, F48C CN15W-55, F44AC CN15W-PS65 SCRAIL, F44AC CN15W-PS65L
MC692GBE Flachkopf Draht Coil 1,6 - 2,3 mm | 0,063 - 0,092" 16 - 50 mm | 5/8 - 2" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze barbed FASCO F45C CN15W-PS65L, F48C CN15W-55, F44AC CN15W-PS65 SCRAIL, F44AC CN15W-PS65L
MC790RSSE Flachkopf Draht Coil 1,6 - 2,3 mm | 0,063 - 0,09" 16 - 57 mm | 5/8 - 2 1/4" 200 - 3.000 konisch, flach 15° elektro-verzinkt, feuerverzinkt, blank, verkupfert, schwarz oxidiert rostfrei A2 Diamantspitze ring FASCO F45C CN15W-PS65L, F48C CN15W-55, F44AC CN15W-PS65 SCRAIL, F44AC CN15W-PS65L
MC790RSSE4M Flachkopf Draht Coil 1,6 - 2,3 mm | 0,063 - 0,09" 16 - 57 mm | 5/8 - 2 1/4" 200 - 3.000 konisch, flach 15° elektro-verzinkt, feuerverzinkt, blank, verkupfert, schwarz oxidiert rostfrei A2 Diamantspitze ring FASCO F45C CN15W-PS65L, F48C CN15W-55, F44AC CN15W-PS65 SCRAIL, F44AC CN15W-PS65L
MC792GBE Flachkopf Draht Coil 1,6 - 2,3 mm | 0,063 - 0,092" 16 - 57 mm | 5/8 - 2 1/4" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze barbed FASCO F45C CN15W-PS65L, F48C CN15W-55, F44AC CN15W-PS65 SCRAIL, F44AC CN15W-PS65L
MC792RGE Flachkopf Draht Coil 1,6 - 2,3 mm | 0,063 - 0,092" 16 - 57 mm | 5/8 - 2 1/4" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze ring FASCO F45C CN15W-PS65L, F48C CN15W-55, F44AC CN15W-PS65 SCRAIL, F44AC CN15W-PS65L
WC1021E Flachkopf Draht Coil 1,6 - 3,1 mm | 0,063 - 0,121" 16 - 75 mm | 5/8 - 3" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze glatt F58AC CN15W-80, F60 CN15W-PS90 SCR
WC1021SHDE Flachkopf Draht Coil 1,6 - 3,1 mm | 0,063 - 0,121" 16 - 75 mm | 5/8 - 3" 200 - 3.000 konisch, flach 15° feuerverzinkt Standard Stahl Diamantspitze schraub F58AC CN15W-80, F60 CN15W-PS90 SCR
WC1031E Flachkopf Draht Coil 1,6 - 3,3 mm | 0,063 - 0,131" 16 - 75 mm | 5/8 - 3" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze glatt FASCO F58A CN15W-70, F58AC CN15W-80, F6AC CN15W-90B SCR
WC1221SHDE Flachkopf Draht Coil 1,6 - 3,1 mm | 0,063 - 0,121" 16 - 82 mm | 5/8 - 3 1/4" 200 - 3.000 konisch, flach 15° feuerverzinkt Standard Stahl Diamantspitze schraub F6AC CN15W-90B SCR
WC1231DCSE Flachkopf Draht Coil 1,6 - 3,3 mm | 0,063 - 0,131" 16 - 82 mm | 5/8 - 3 1/4" 200 - 3.000 konisch, flach 15° elektro-verzinkt, feuerverzinkt, blank, verkupfert, schwarz oxidiert Standard Stahl Diamantspitze schraub F60 CN15W-PS90 SCR
WC1231E Flachkopf Draht Coil 1,6 - 3,3 mm | 0,063 - 0,131" 16 - 82 mm | 5/8 - 3 1/4" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze glatt FASCO F58A CN15W-70, F58AC CN15W-80, F60 CN15W-PS90 SCR
WC17880RGE Flachkopf Draht Coil 1,6 - 2 mm | 0,063 - 0,08" 16 - 48 mm | 5/8 - 1 7/8" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze ring FASCO F33 CN15W-PS50 SS (CT)
WC17886RHDE Flachkopf Draht Coil 1,6 - 2,2 mm | 0,063 - 0,086" 16 - 48 mm | 5/8 - 1 7/8" 200 - 3.000 konisch, flach 15° feuerverzinkt Standard Stahl Diamantspitze ring FASCO F33 CN15W-PS50 SS (CT)
WC380RE Flachkopf Draht Coil 1,6 - 2 mm | 0,063 - 0,08" 16 - 32 mm | 5/8 - 1 1/4" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring FASCO F33 CN15W-PS50 SS (CT)
WC382RHDE Flachkopf Draht Coil 1,6 - 2,1 mm | 0,063 - 0,082" 16 - 32 mm | 5/8 - 1 1/4" 200 - 3.000 konisch, flach 15° feuerverzinkt Standard Stahl Diamantspitze ring FASCO F33 CN15W-PS50 SS (CT)
WC382RSSE Flachkopf Draht Coil 1,6 - 2,1 mm | 0,063 - 0,082" 16 - 32 mm | 5/8 - 1 1/4" 200 - 3.000 konisch, flach 15° elektro-verzinkt, feuerverzinkt, blank, verkupfert, schwarz oxidiert rostfrei A2 Diamantspitze ring FASCO F33 CN15W-PS50 SS (CT)
WC482RSSE Flachkopf Draht Coil 1,6 - 2,1 mm | 0,063 - 0,082" 16 - 38 mm | 5/8 - 1 1/2" 200 - 3.000 konisch, flach 15° elektro-verzinkt, feuerverzinkt, blank, verkupfert, schwarz oxidiert rostfrei A2 Diamantspitze ring FASCO F33 CN15W-PS50 SS (CT)
WC486RHDE4M Flachkopf Draht Coil 1,6 - 2,2 mm | 0,063 - 0,086" 16 - 38 mm | 5/8 - 1 1/2" 200 - 3.000 konisch, flach 15° feuerverzinkt Standard Stahl Diamantspitze ring FASCO F33 CN15W-PS50 SS (CT)
WC499HCE Flachkopf Draht Coil 1,6 - 2,5 mm | 0,063 - 0,099" 16 - 38 mm | 5/8 - 1 1/2" 200 - 3.000 konisch, flach 15° blank gehärteter Stahl Diamantspitze glatt FASCO F58A CN15W-70, F58AC CN15W-80, F60 CN15W-PS90 SCR
WC582RHDE Flachkopf Draht Coil 1,6 - 2,1 mm | 0,063 - 0,082" 16 - 44 mm | 5/8 - 1 3/4" 200 - 3.000 konisch, flach 15° feuerverzinkt Standard Stahl Diamantspitze ring FASCO F33 CN15W-PS50 SS (CT)
WC582RSSE Flachkopf Draht Coil 1,6 - 2,1 mm | 0,063 - 0,082" 16 - 44 mm | 5/8 - 1 3/4" 200 - 3.000 konisch, flach 15° elektro-verzinkt, feuerverzinkt, blank, verkupfert, schwarz oxidiert rostfrei A2 Diamantspitze ring FASCO F33 CN15W-PS50 SS (CT)
WC813RE Flachkopf Draht Coil 1,6 - 2,8 mm | 0,063 - 0,113" 16 - 60 mm | 5/8 - 2 3/8" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring FASCO F58A CN15W-70, F58AC CN15W-80, F6AC CN15W-90B SCR
WC899SGE Flachkopf Draht Coil 1,6 - 2,5 mm | 0,063 - 0,099" 16 - 60 mm | 5/8 - 2 3/8" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze schraub FASCO F58A CN15W-70, F58AC CN15W-80, F60 CN15W-PS90 SCR
WC899SHDE4M Flachkopf Draht Coil 1,6 - 2,5 mm | 0,063 - 0,099" 16 - 60 mm | 5/8 - 2 3/8" 200 - 3.000 konisch, flach 15° feuerverzinkt Standard Stahl Diamantspitze schraub FASCO F58A CN15W-70, F58AC CN15W-80, F60 CN15W-PS90 SCR
  Kopfform Magazinierung Durchmesser Länge Spulen-Kapazität Spulen-Form Grad Magazinierung Oberfläche Material Spitze Schaft FASCO® Gerät
RBW21..1143 Flachkopf Draht Coil 2,1 mm | 0,063 - 0,083" 32 mm | 5/8 - 1 17/64" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F33 CN15W-PS50 SCR
RBW21..1144 Flachkopf Draht Coil 2,1 mm | 0,063 - 0,083" 38 mm | 5/8 - 1 1/2" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F33 CN15W-PS50 SCR
RBW21..1145 Flachkopf Draht Coil 2,1 mm | 0,063 - 0,083" 45 mm | 5/8 - 1 3/4" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F33 CN15W-PS50 SCR
RBW21..1146 Flachkopf Draht Coil 2,1 mm | 0,063 - 0,083" 50 mm | 5/8 - 2" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F33 CN15W-PS50 SCR
RBW21..1147 Flachkopf Draht Coil 2,1 mm | 0,063 - 0,083" 42 mm | 5/8 - 1 21/32" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F33 CN15W-PS50 SCR
RBW25..1423 Flachkopf Draht Coil 2,5 mm | 0,063 - 0,098" 50 mm | 5/8 - 2" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL
RBW25..1424 Flachkopf Draht Coil 2,5 mm | 0,063 - 0,098" 50 mm | 5/8 - 2" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze ring F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL
RBW25..1425 Flachkopf Draht Coil 2,5 mm | 0,063 - 0,098" 55 mm | 5/8 - 2 11/64" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL
RBW25..1426 Flachkopf Draht Coil 2,5 mm | 0,063 - 0,098" 60 mm | 5/8 - 2 23/64" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL
RBW25..1427 Flachkopf Draht Coil 2,5 mm | 0,063 - 0,098" 60 mm | 5/8 - 2 23/64" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze ring F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR
RBW25..1428 Flachkopf Draht Coil 2,5 mm | 0,063 - 0,098" 65 mm | 5/8 - 2 9/16" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR
RBW25..1445 Flachkopf Draht Coil 2,5 mm | 0,063 - 0,098" 65 mm | 5/8 - 2 9/16" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze ring F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR
RBW25..1446 Flachkopf Draht Coil 2,5 mm | 0,063 - 0,098" 65 mm | 5/8 - 2 9/16" 200 - 3.000 konisch, flach 15° elektro verzinkt mit Diamond Coating Standard Stahl Diamantspitze ring F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR
RBW28..1309 Flachkopf Draht Coil 2,8 mm | 0,063 - 0,113" 60 mm | 5/8 - 2 23/64" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR
RBW28..1310 Flachkopf Draht Coil 2,8 mm | 0,063 - 0,113" 65 mm | 5/8 - 2 9/16" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR
RBW28..1311 Flachkopf Draht Coil 2,8 mm | 0,063 - 0,113" 65 mm | 5/8 - 2 9/16" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze ring F44AC CN15W-PS65L, F44AC CN15W-PS65 SCRAIL, F60 CN15W-PS90 SCR
RBW28..1312 Flachkopf Draht Coil 2,8 mm | 0,063 - 0,113" 70 mm | 5/8 - 2 3/4" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F58A CN15W-70, F58AC CN15W-80, F60 CN15W-PS90 SCR
RBW28..1313 Flachkopf Draht Coil 2,8 mm | 0,063 - 0,113" 75 mm | 5/8 - 3" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F58AC CN15W-80, F60 CN15W-PS90 SCR
RBW28..1314 Flachkopf Draht Coil 2,8 mm | 0,063 - 0,113" 75 mm | 5/8 - 3" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze ring F58AC CN15W-80, F60 CN15W-PS90 SCR
RBW28..1315 Flachkopf Draht Coil 2,8 mm | 0,063 - 0,113" 80 mm | 5/8 - 3 5/32" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F58AC CN15W-80, F60 CN15W-PS90 SCR
RBW31..732 Flachkopf Draht Coil 3,1 mm | 0,063 - 0,122" 82 mm | 5/8 - 3 15/64" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F60 CN15W-PS90 SCR
RBW31..733 Flachkopf Draht Coil 3,1 mm | 0,063 - 0,122" 82 mm | 5/8 - 3 15/64" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze ring F60 CN15W-PS90 SCR
RBW31..734 Flachkopf Draht Coil 3,1 mm | 0,063 - 0,122" 90 mm | 5/8 - 3 1/2" 200 - 3.000 konisch, flach 15° blank Standard Stahl Diamantspitze ring F60 CN15W-PS90 SCR
RBW31..735 Flachkopf Draht Coil 3,1 mm | 0,063 - 0,122" 90 mm | 5/8 - 3 1/2" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze ring F60 CN15W-PS90 SCR
RBW31..743 Flachkopf Draht Coil 3,1 mm | 0,063 - 0,122" 82 mm | 5/8 - 3 15/64" 200 - 3.000 konisch, flach 15° elektro verzinkt mit Diamond Coating Standard Stahl Diamantspitze ring F60 CN15W-PS90 SCR
WC899SGE Flachkopf Draht Coil 1,6 - 2,5 mm | 0,063 - 0,099" 16 - 60 mm | 5/8 - 2 3/8" 200 - 3.000 konisch, flach 15° elektro-verzinkt Standard Stahl Diamantspitze schraub FASCO F58A CN15W-70, F58AC CN15W-80, F60 CN15W-PS90 SCR
WC899SHDE4M Flachkopf Draht Coil 1,6 - 2,5 mm | 0,063 - 0,099" 16 - 60 mm | 5/8 - 2 3/8" 200 - 3.000 konisch, flach 15° feuerverzinkt Standard Stahl Diamantspitze schraub FASCO F58A CN15W-70, F58AC CN15W-80, F60 CN15W-PS90 SCR
